2018 Kawasaki Z125 Pro KRT Edition Chassis Electrical Equipment Diagram

← All diagrams

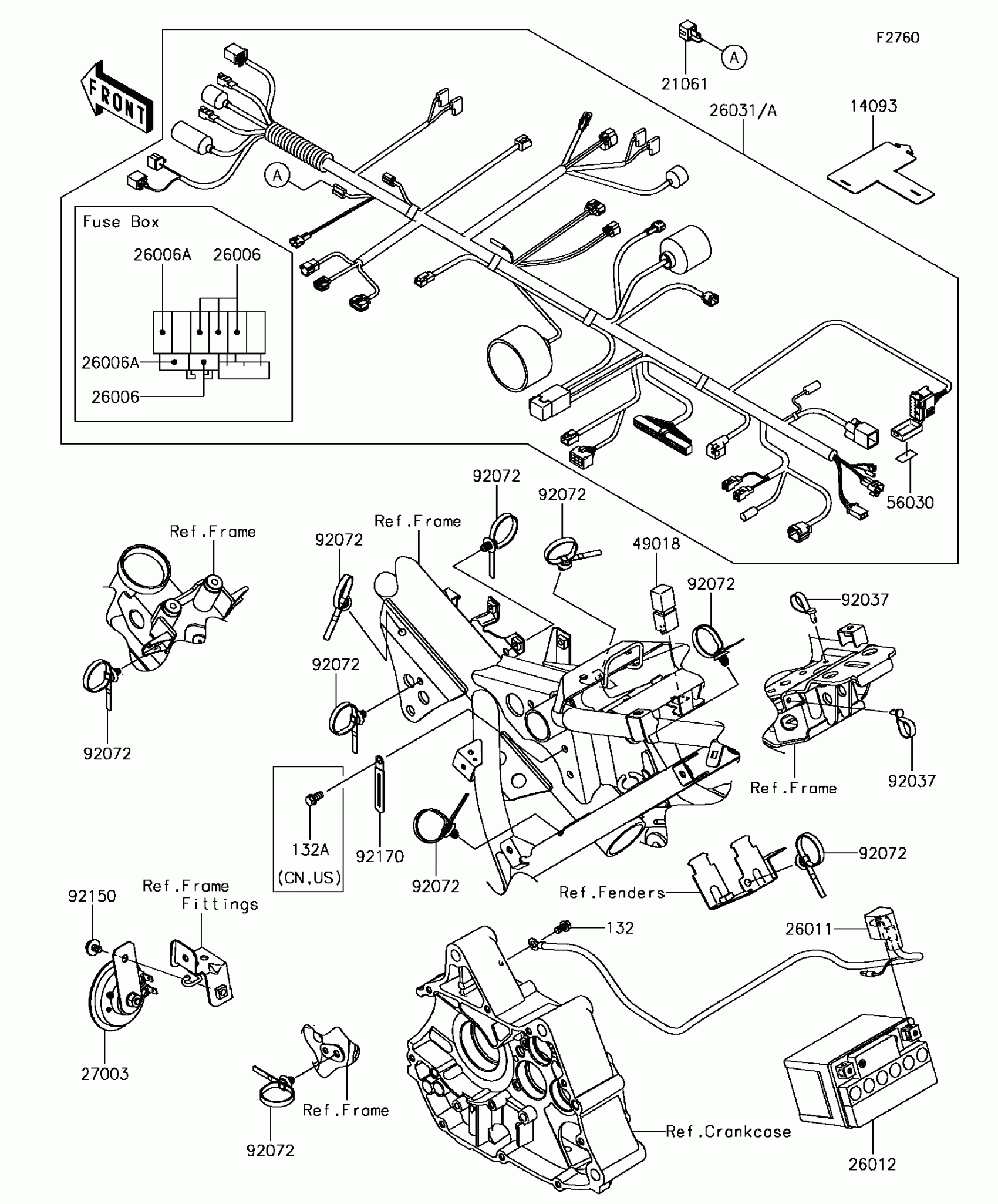

Find the part on the Chassis Electrical Equipment diagram for your 2018 Kawasaki Z125 Pro KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Z125 Pro KRT Edition Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.47

In stock

14093

COVER,CONNECTOR

14093-0486

1

$2.63

In stock

21061

RECTIFIER

21061-1003

1

$30.17

In stock

26006

FUSE,MINI BLADE,10A

26006-0031

1

$5.47

In stock

26006A

FUSE,MINI BLADE,20A

26006-0032

1

$5.47

In stock

26011

WIRE-LEAD

26011-0920

1

$39.83

In stock

26012

1

$156.45

In stock

26031A

HARNESS,MAIN

26031-1996

1

$999.40

In stock

27003

HORN

27003-0120

1

$67.21

In stock

49018

DIODE

49018-0005

1

$42.75

In stock

56030

LABEL,FUSE BOX

56030-0983

1

$2.64

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92072

1

$2.97

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

132A

1

$1.12

In stock

26031

HARNESS,MAIN

26031-1995

1

$999.40

In stock
