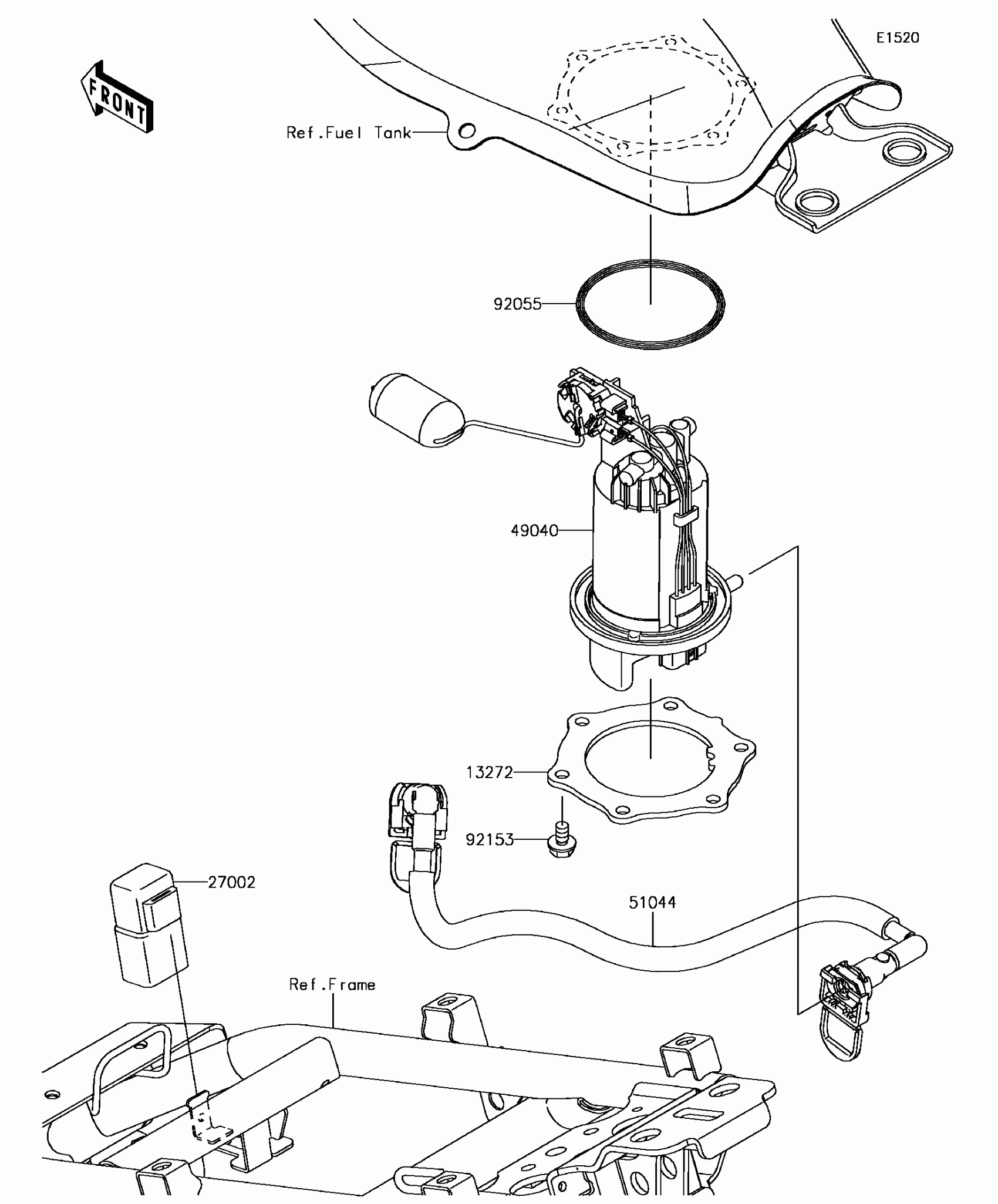

Kawasaki Z125 PRO KRT EDITION Fuel Pump Diagram

#

Description

Price

13272

PLATE,FUEL PUMP

13272-1957

$12.47

27002

RELAY-ASSY

27002-1086

$33.76

49040

PUMP-FUEL

49040-0755

$448.75

51044

TUBE-ASSY

51044-0784

$90.70

92055

RING-O,66.6X3.5

92055-0838

$10.30

92153

BOLT,FLANGED,6X12

92153-1295

$1.53
