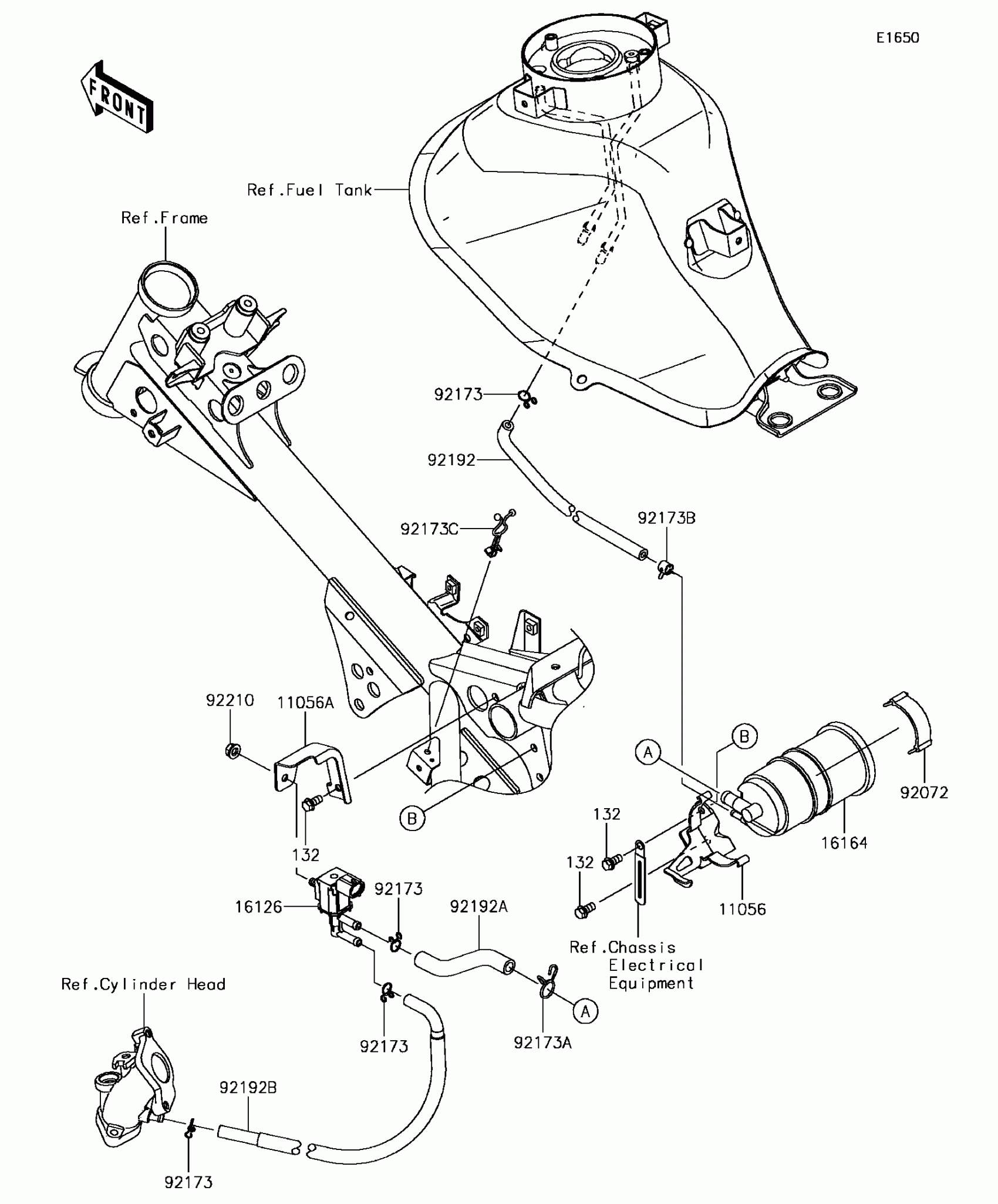

Kawasaki Z125 PRO KRT EDITION Fuel Evaporative System(CA) Diagram

Description

Price

11056

BRACKET,CANISTER

11056-7523

$15.59

11056A

BRACKET,VALVE

11056-7743

$3.56

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0704

$138.03

92072

BAND,L=50

92072-1419

$12.21

92173

CLAMP

92173-0050

$5.75

92173A

CLAMP,14MM

92173-1015

$3.29

92173B

CLAMP

92173-1143

$3.27

92173C

CLAMP

92173-1616

$1.68

92192

TUBE,TANK-CANISTER

92192-1484

$45.84

92192A

TUBE,CANISTER-VALVE

92192-1531

$32.44

92192B

TUBE,VALVE-PIPE INTAKE

92192-1747

$74.22

92210

NUT,FLANGED,6MM

92210-1514

$3.59
