2019 Kawasaki Z125 Pro Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

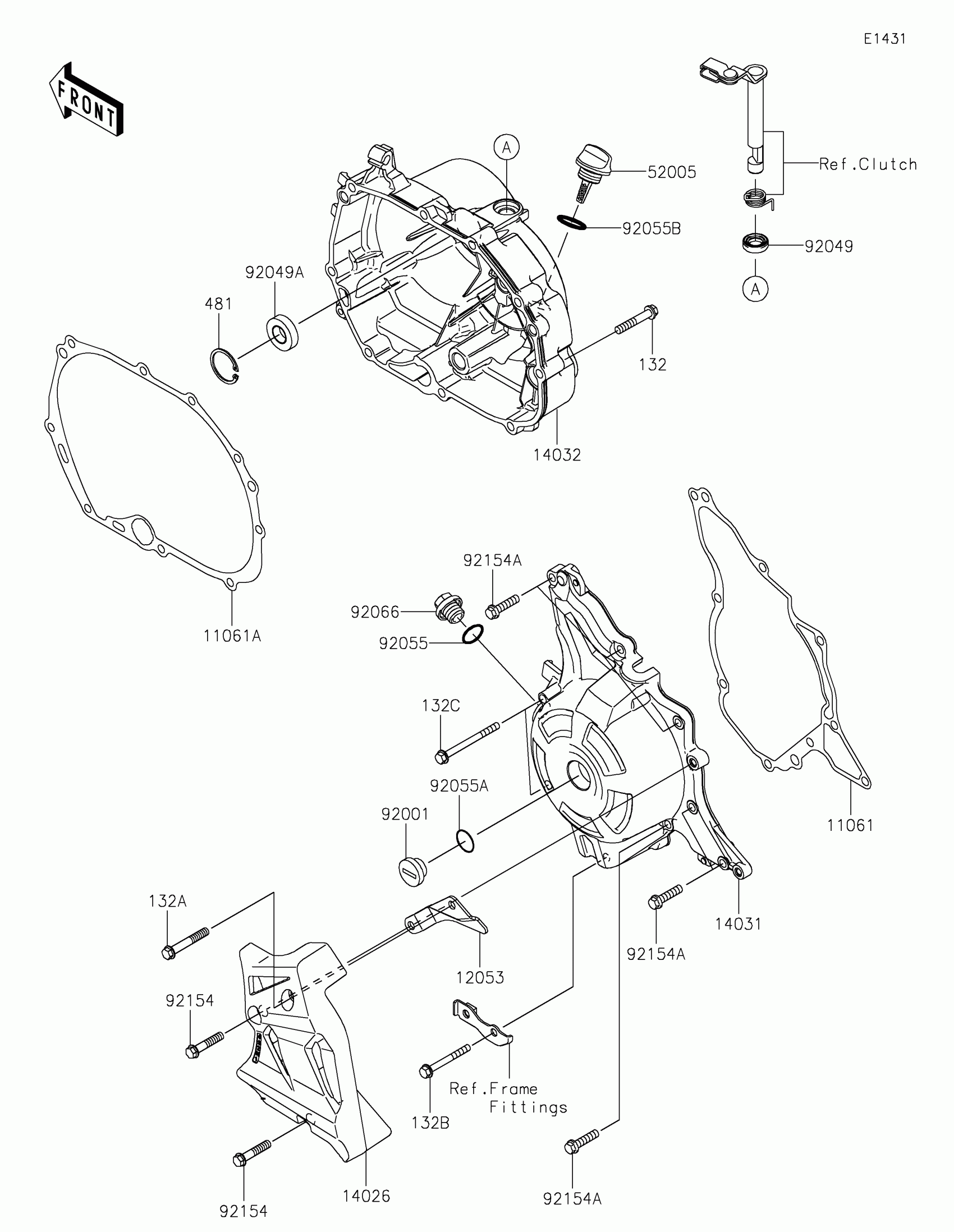

2019 Kawasaki Z125 Pro Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,GENERATOR

11061-0125

1

$5.01

In stock

11061A

GASKET,CLUTCH COVER

11061-0289

1

$5.82

In stock

12053

GUIDE-CHAIN

12053-0233

1

$14.22

In stock

132

1

$1.73

In stock

132A

1

$3.53

In stock

132B

1

$3.53

In stock

132C

1

$3.69

In stock

14026

COVER-CHAIN

14026-0127

1

$39.56

In stock

14031

COVER-GENERATOR,F.M.GRAY

14031-0575-26M

1

$93.68

In stock

14032

COVER-CLUTCH,F.M.GRAY

14032-0634-26M

1

$140.98

In stock

481

1

$1.31

In stock

52005

GAUGE,OIL LEVEL

52005-0756

1

$4.75

In stock

92001

1

$5.78

In stock

92049

SEAL-OIL,12X20X5.5

92049-0142

1
Out of stock

92049A

SEAL-OIL,AC0387E0

92049-1595

1
Out of stock

92055

RING-O,14.8X2.4

92055-0153

1

$4.47

In stock

92055A

RING-O,25.7X2.4

92055-0154

1

$4.47

In stock

92055B

RING-O,20X2

92055-0155

1

$3.11

In stock

92066

PLUG,14X10

92066-1571

1

$0.71

In stock

92154

BOLT,FLANGED,6X30

92154-1080

1

$1.10

In stock

92154A

BOLT,FLANGED,6X25

92154-2154

1

$2.44

In stock
