2019 Kawasaki Z125 Pro Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

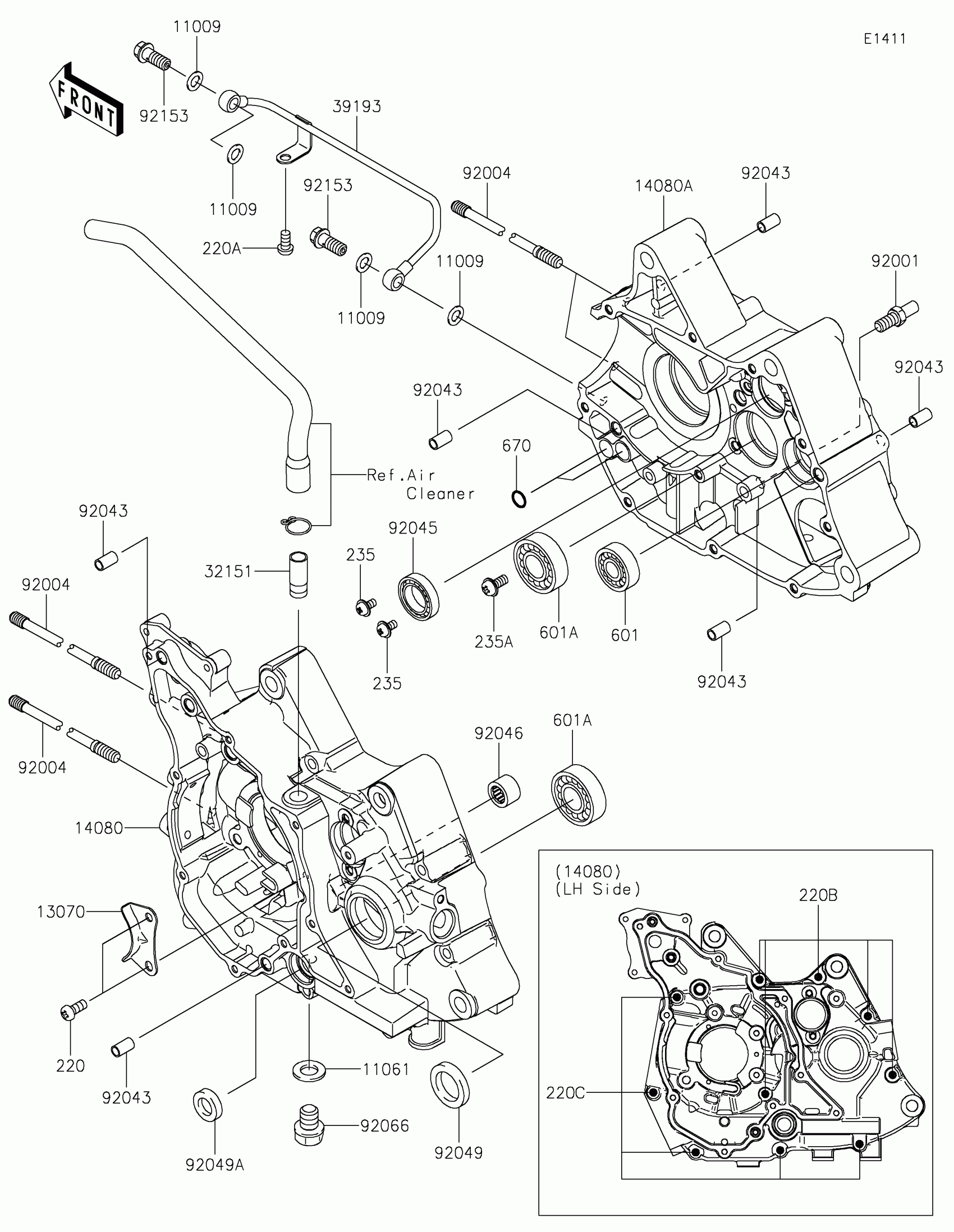

2019 Kawasaki Z125 Pro Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11061

GASKET,DRAIN PLUG

11061-0421

1

$4.66

In stock

13070

GUIDE

13070-0069

1

$1.86

In stock

14080

CRANKCASE,LH

14080-0747

1

$106.22

In stock

14080A

CRANKCASE,RH

14080-0752

1

$114.76

In stock

220

1

$1.32

In stock

220A

1

$1.47

In stock

220B

1

$1.69

In stock

220C

1

$1.88

In stock

235

1

$2.92

In stock

235A

1

$3.75

In stock

32151

PIPE

32151-1961

1

$5.58

In stock

39193

PIPE-OIL

39193-1056

1

$54.56

In stock

601

BEARING-BALL

601A6201

1

$8.46

In stock

601A

1

$11.12

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

92001

BOLT,RETURN SPRING

92001-1455

1

$4.17

In stock

92004

STUD,8X190

92004-1281

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92045

BEARING-BALL,6804

92045-0758

1

$25.75

In stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,SC22325

92049-1048

1
Out of stock

92049A

SEAL-OIL

92049-1559

1
Out of stock

92066

1

$3.58

In stock

92153

BOLT,8X20

92153-0570

1
Out of stock
