2019 Kawasaki Z125 Pro Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

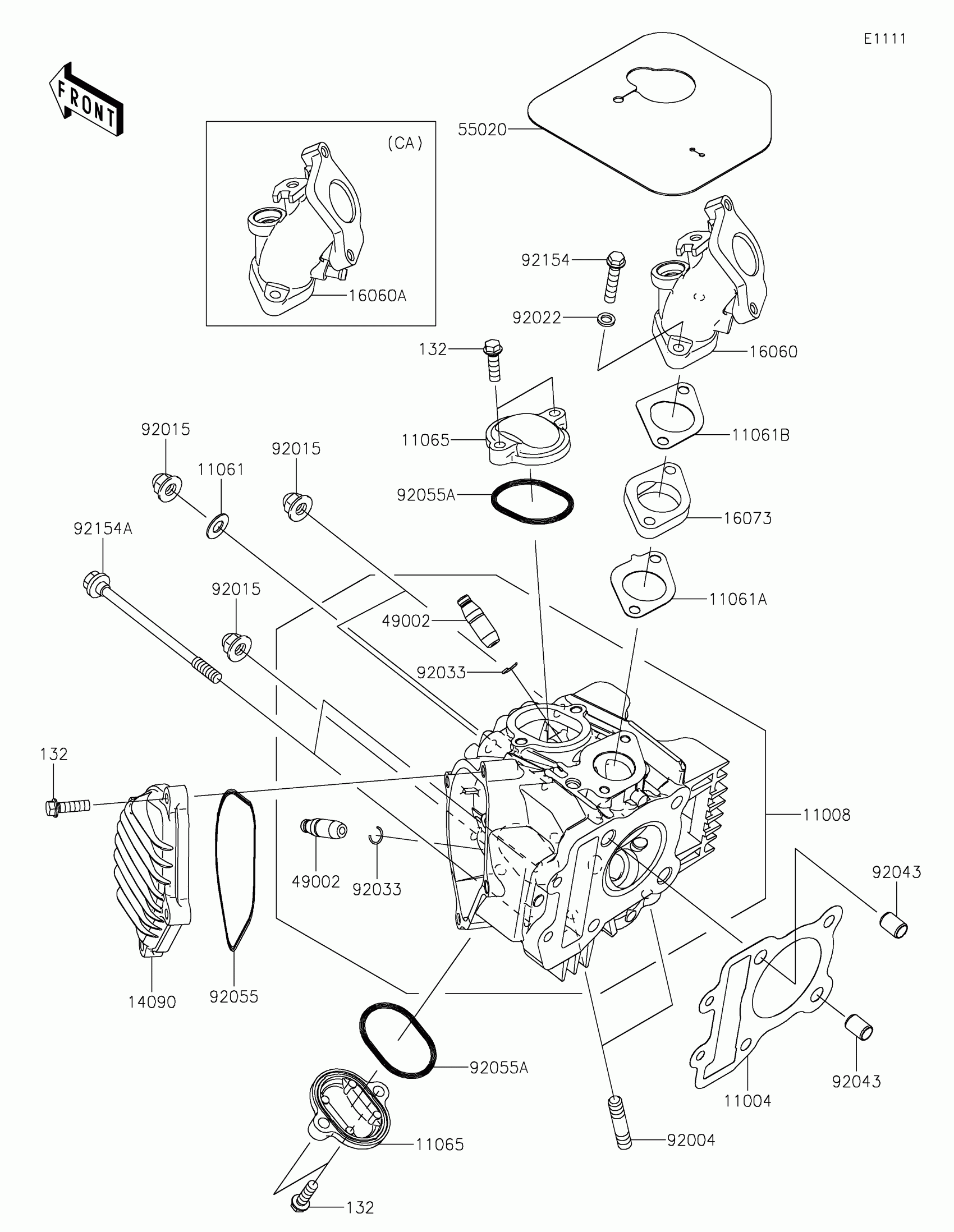

2019 Kawasaki Z125 Pro Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0009

1

$23.24

In stock

11008

HEAD-COMP-CYLINDER

11008-0868

1

$722.79

In stock

11061

GASKET

11061-0850

1

$2.42

In stock

11061A

GASKET,HEAD SIDE

11061-0992

1

$2.37

In stock

11061B

1

$1.39

In stock

11065

CAP,VALVE ADJUSTING

11065-0919

1

$21.90

In stock

132

1

$2.05

In stock

14090

COVER,CAMSHAFT

14090-1845

1

$11.90

In stock

16060A

PIPE-INTAKE

16060-0041

1

$110.52

In stock

16073

INSULATOR

16073-0858

1

$17.95

In stock

49002

GUIDE-VALVE

49002-0033

1

$23.17

In stock

55020

GUARD,THROTTLE-ASSY

55020-1958

1

$20.88

In stock

92004

STUD,8X28.5

92004-1284

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92022

WASHER,6.3X10.2X1.6

92022-1588

1

$3.53

In stock

92033

RING-SNAP

92033-1247

1

$3.11

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,91X2.5

92055-1651

1

$14.14

In stock

92055A

RING-O,ADJUST CAP

92055-1655

1

$6.90

In stock

92154

BOLT,FLANGED,6X30

92154-1830

1

$1.10

In stock

92154A

BOLT,6X106

92154-2693

1

$6.56

In stock
