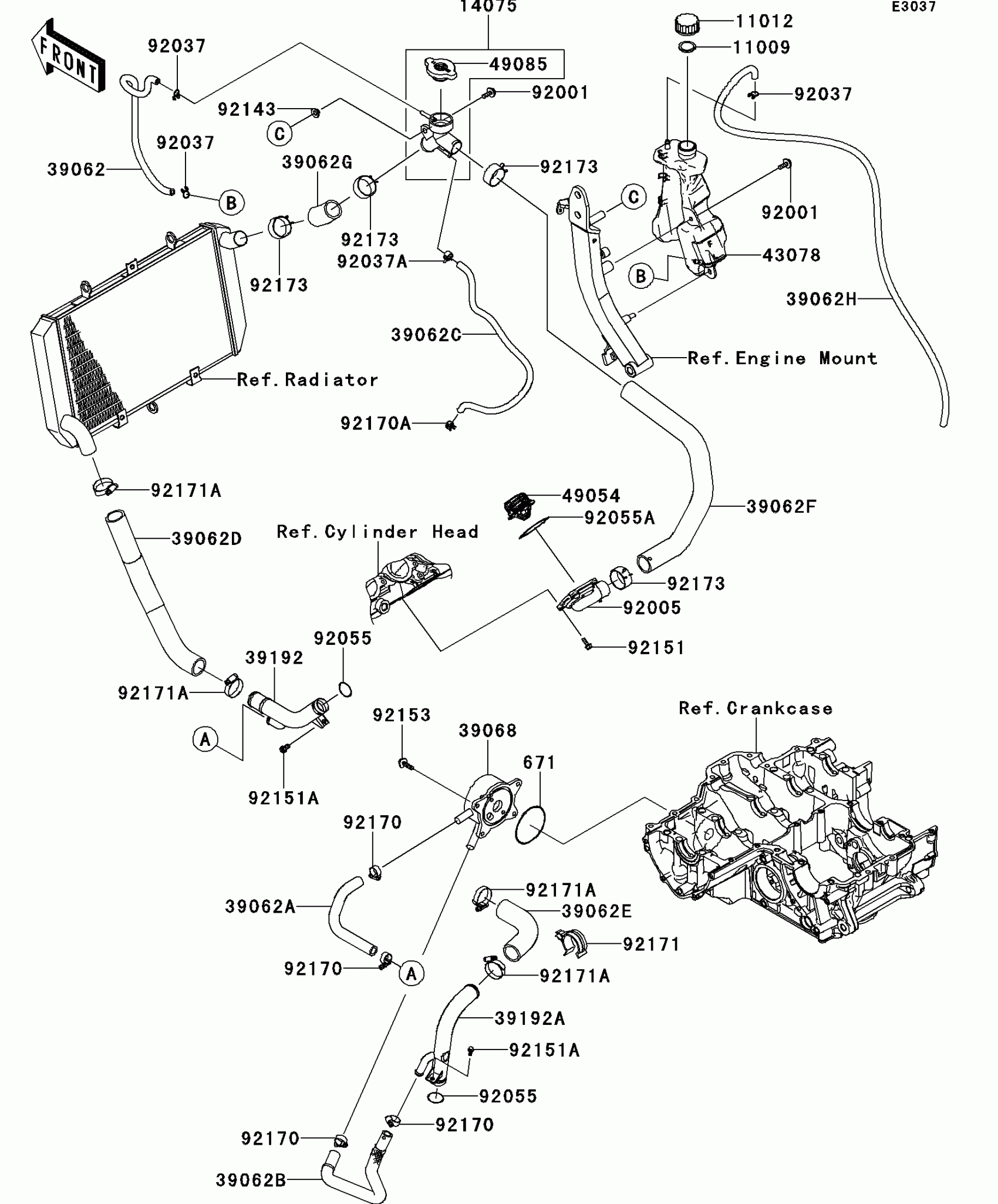

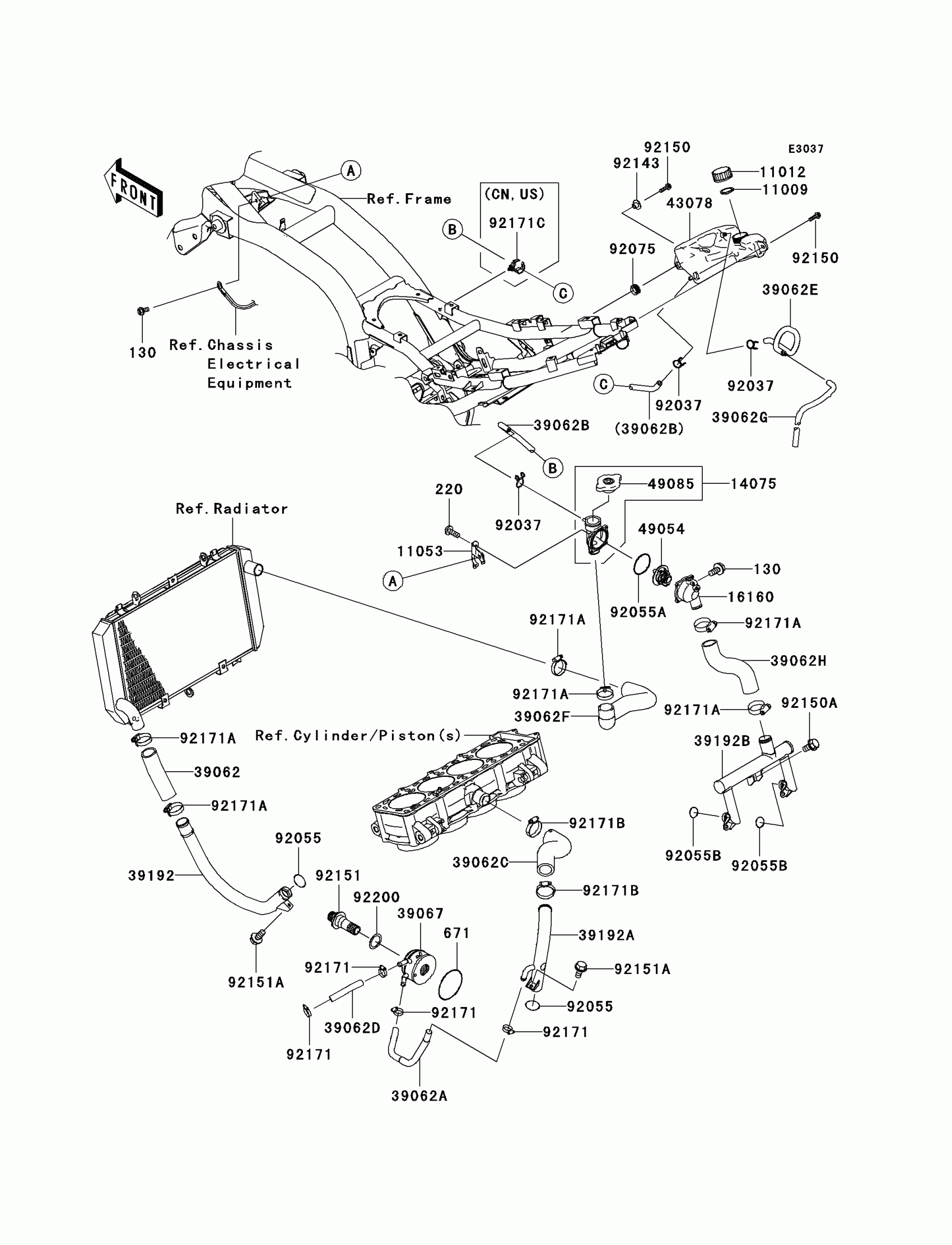

2008 Kawasaki Z1000 Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2008 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Z1000 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

11053

BRACKET,THERMOSTAT

11053-1070

1

$12.15

In stock

14075

CAP-ASSY

14075-0001

1

$145.52

In stock

16160

BODY,LWR

16160-0039

1

$71.27

In stock

39062

HOSE-COOLING,RAD-PIPE

39062-0190

1
Out of stock

39062A

1

$52.87

In stock

39062B

1

$17.53

In stock

39062C

1

$37.80

In stock

39062D

1

$9.31

In stock

39062E

1

$39.18

In stock

39062F

HOSE-COOLING,THERMO-RAD

39062-0234

1
Out of stock

39062G

HOSE-COOLING

39062-1226

1

$31.57

In stock

39062H

HOSE-COOLING,HEAD-THERMO

39062-1916

1
Out of stock

39067

COOLER-OIL

39067-0012

1

$775.67

In stock

39192

PIPE-WATER

39192-0046

1

$70.10

In stock

39192A

PIPE-WATER

39192-0069

1

$70.10

In stock

39192B

PIPE-WATER

39192-1151

1
Out of stock

43078

RESERVOIR

43078-0033

1

$45.81

In stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055A

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92055B

RING-O,18.54X2.6

92055-1350

1

$3.46

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR

92143-1962

1

$4.42

In stock

92150

BOLT,FLANGED,6X20

92150-1633

1

$3.53

In stock

92150A

1

$3.43

In stock

92151

BOLT,OIL COOLER

92151-1366

1

$89.23

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92171

CLAMP,COOLING HOSE

92171-0142

1

$8.71

In stock

92171A

CLAMP

92171-0179

1

$6.51

In stock

92171B

CLAMP

92171-0180

1

$12.73

In stock

92200

WASHER,OIL COOLER

92200-1379

1
Out of stock

671

O RING,65MM

671B2565

1

$7.04

In stock

92171C

CLAMP

92171-0864

1

$4.14

In stock
