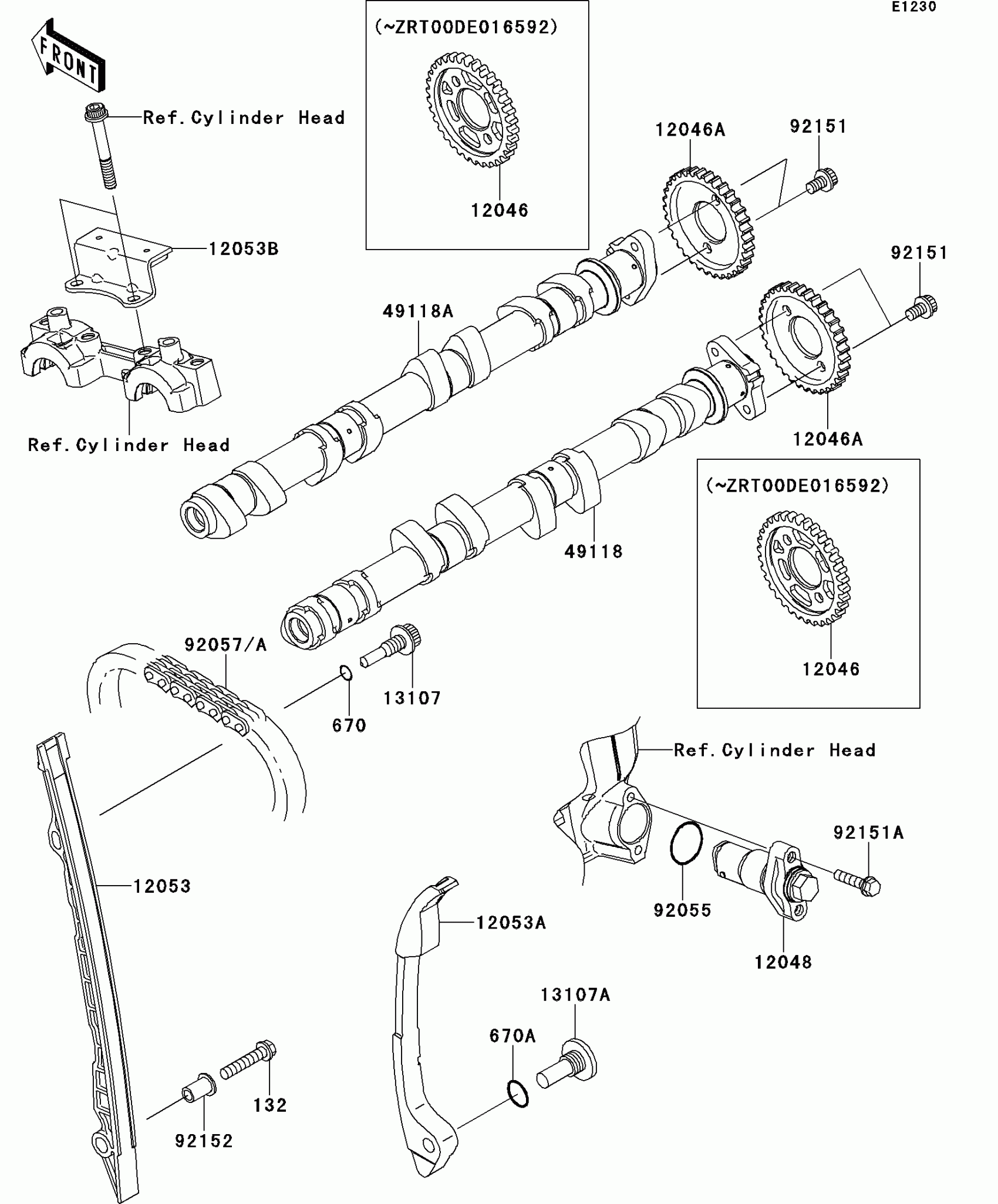

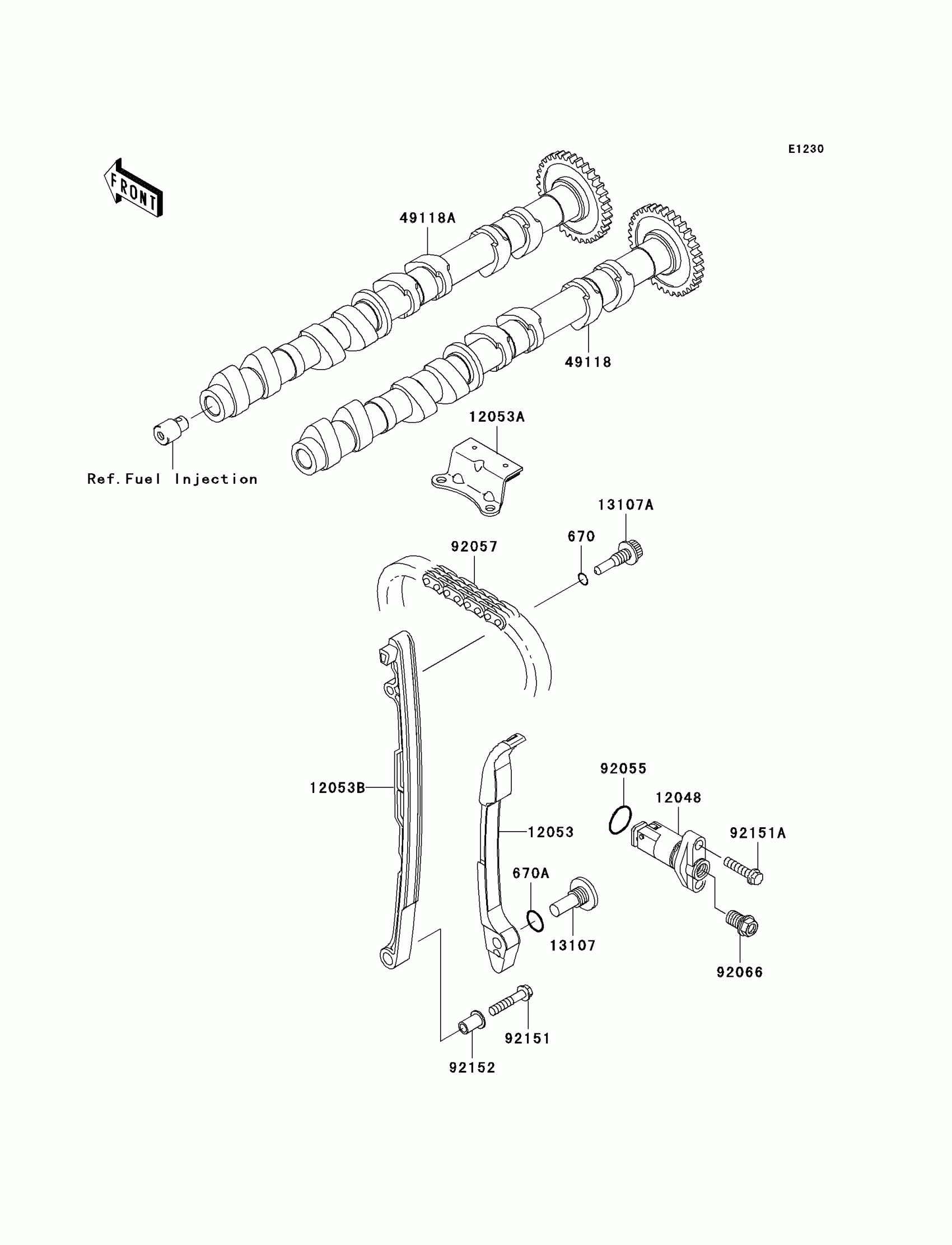

Kawasaki Z1000 Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,9MM

670D1509

$3.57

670A

O RING,14MM

670D2014

$4.18

12048

TENSIONER-ASSY

12048-0003

$159.60

12053

GUIDE-CHAIN,RR

12053-1399

$44.13

12053A

GUIDE-CHAIN,UPP

12053-1473

$42.01

12053B

GUIDE-CHAIN,FR

12053-1478

$46.19

13107

SHAFT

13107-1376

$8.46

13107A

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

49118

CAMSHAFT-COMP,INTAKE

49118-1224

$738.11

49118A

CAMSHAFT-COMP,EXHAUST

49118-1225

$738.11

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2015-126M

92057-1453

$104.17

92066

PLUG

92066-3780

$17.03

92151

BOLT,6X30

92151-1134

$1.57

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1167

$5.25
