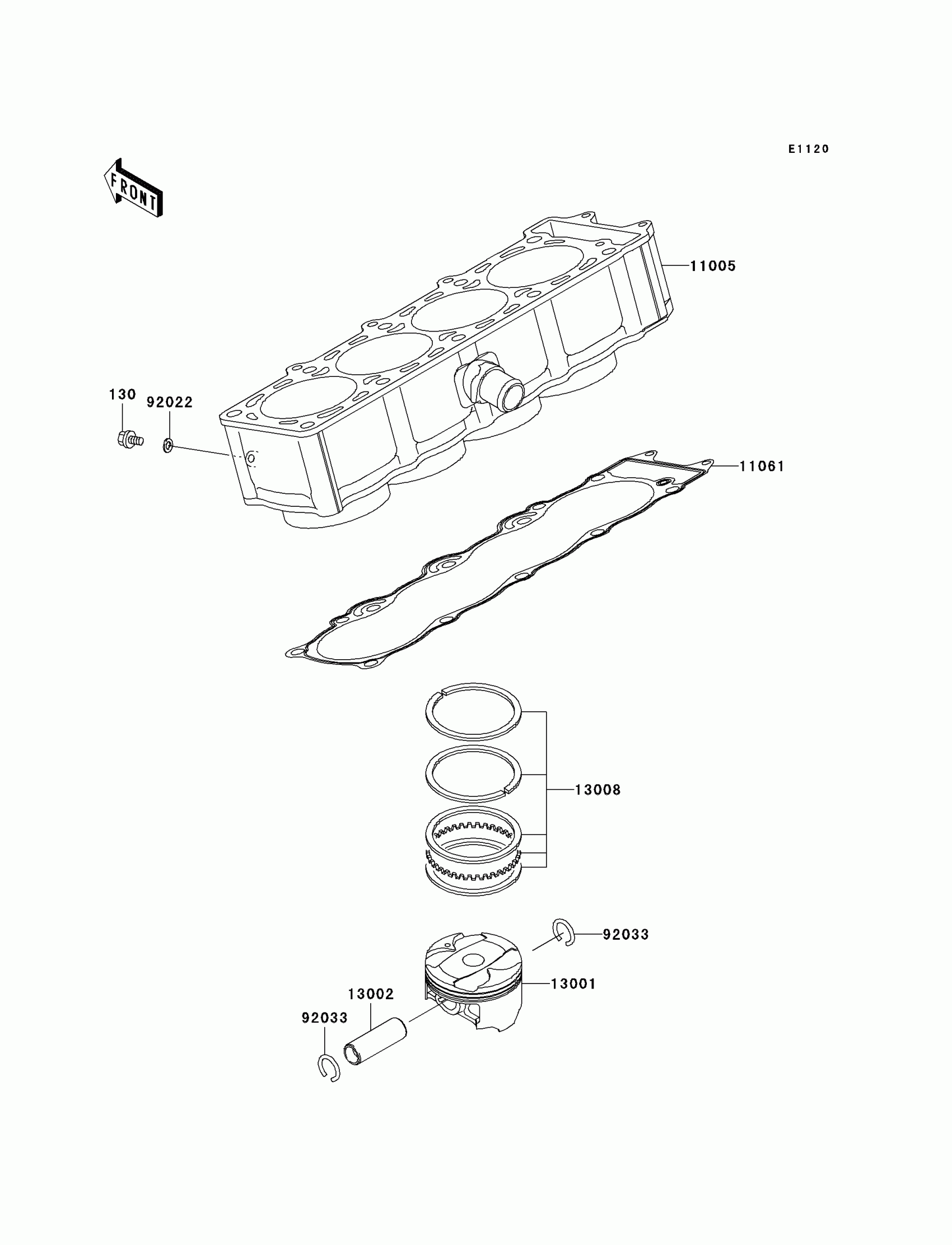

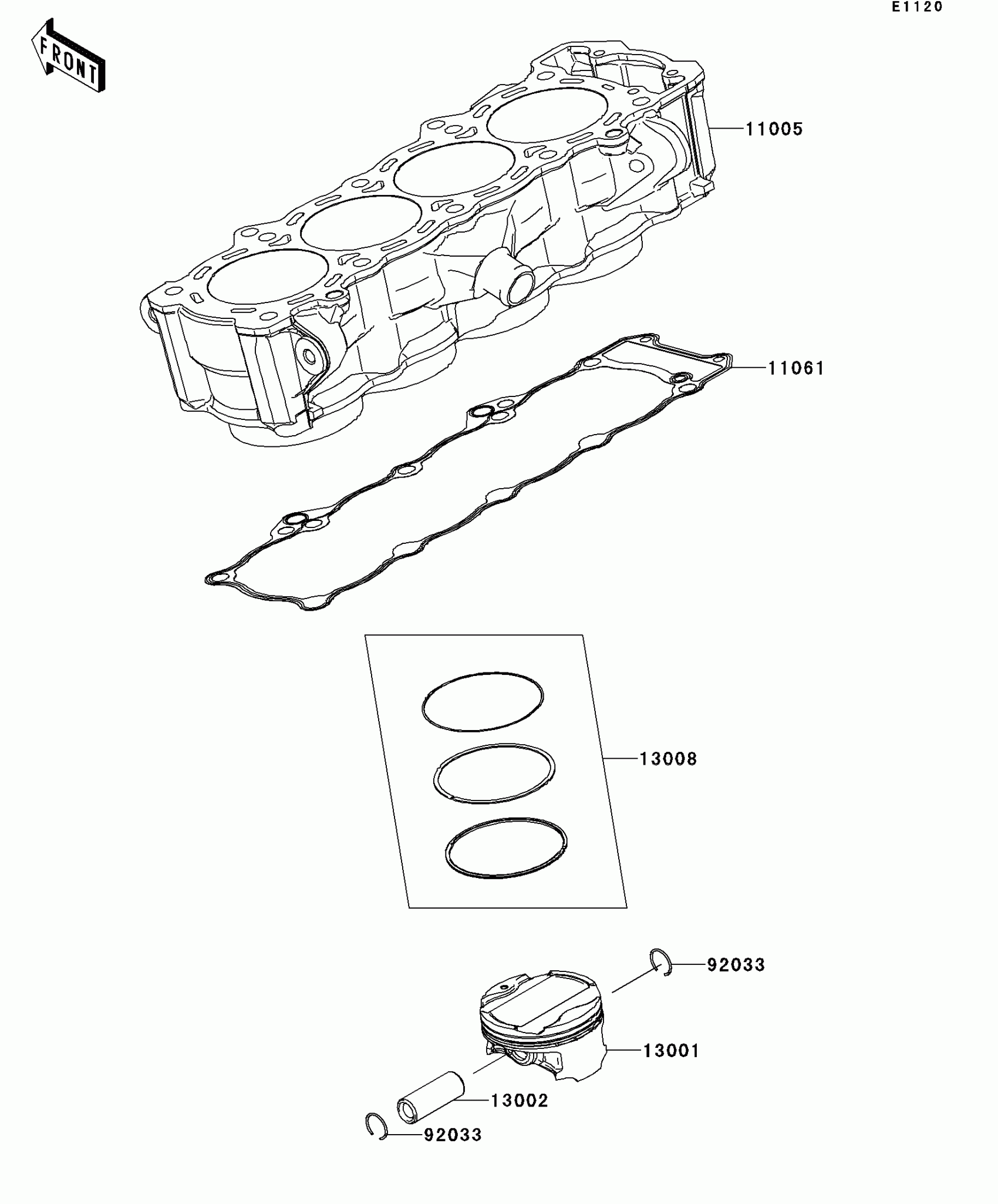

Kawasaki Z1000 Cylinder/Piston(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130Y0610

Unavailable

11005

CYLINDER-ENGINE

11005-1987

$1,703.90

11061

GASKET,CYLINDER BASE

11061-1168

$52.84

13001

PISTON-ENGINE

13001-1661

$122.88

13002

PIN-PISTON

13002-1129

$34.65

13008

RING-SET-PISTON

13008-1217

$72.39

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55
