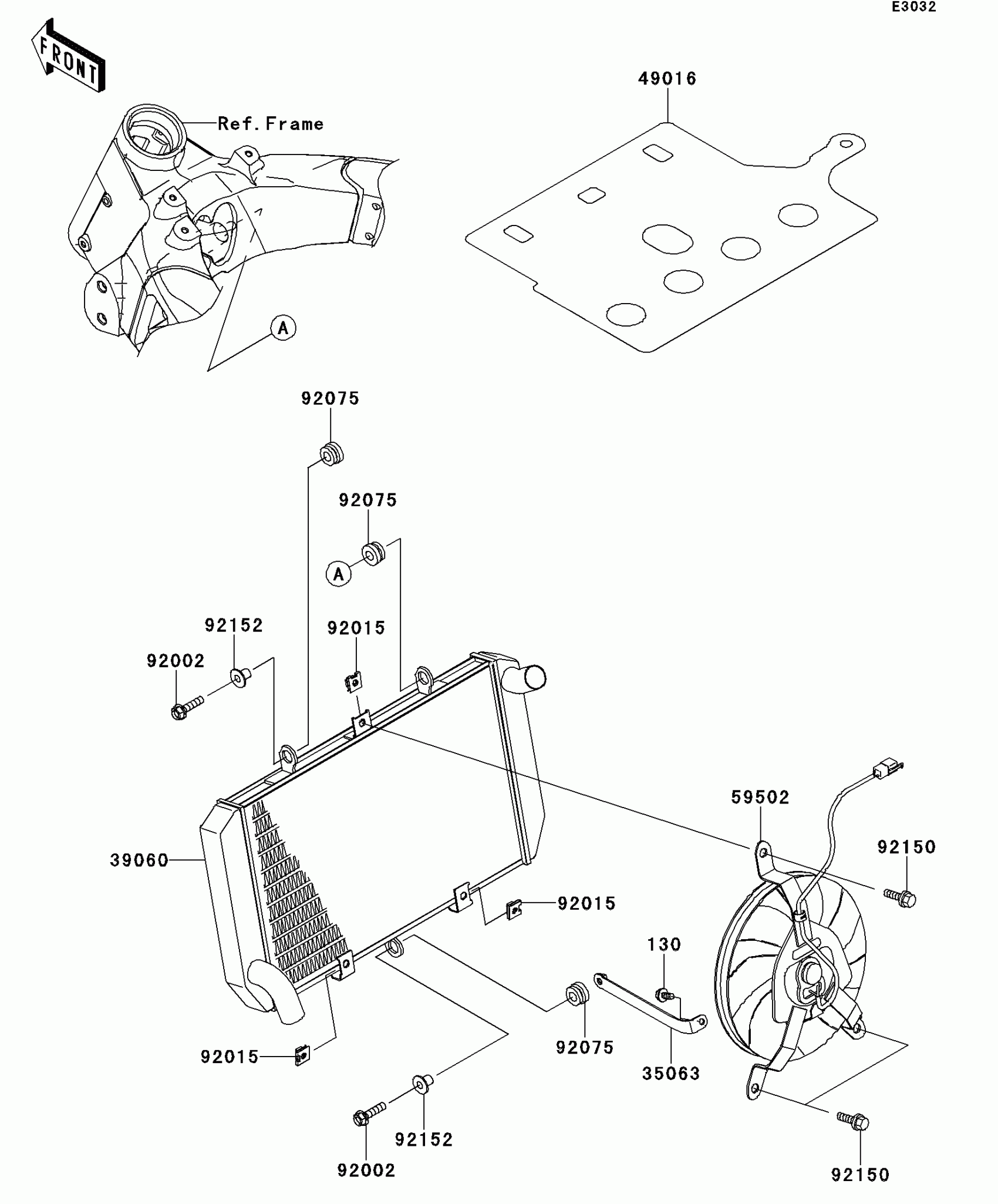

Kawasaki Z1000 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11053

BRACKET,THERMOSTAT

11053-1070

$12.15

14037

SCREEN

14037-1315

$98.53

14075

CAP-ASSY

14075-0001

$145.52

14091

COVER

14091-1532

$51.50

14091A

COVER,RADIATOR,LH,P.SILVER

14091-1541-458

$107.88

14091B

COVER,RADIATOR,RH,P.SILVER

14091-1542-458

$107.88

16160

BODY,THERMOSTAT

16160-1360

$75.46

27010

SWITCH

27010-1443

$120.81

35063

STAY,RADIATOR

35063-1261

$15.14

39060

RADIATOR

39060-0004

$946.65

39062

HOSE-COOLING,THERMO-RESERVOR

39062-0013

$17.32

39062A

HOSE-COOLING,RADIATOR

39062-0016

$34.32

39062B

HOSE-COOLING,OIL COOLER

39062-0017

$46.06

39062C

HOSE-COOLING,5.5X10.5X550

39062-1208

$38.54

39062D

HOSE-COOLING,FITTING

39062-1851

$114.73

39062E

HOSE-COOLING,PUMP-CYLINDER

39062-1914

$36.87

39062F

HOSE-COOLING,HEAD-THERMO

39062-1916

Unavailable

39062G

HOSE-COOLING,THERMO-RADIATOR

39062-1917

Unavailable

39067

COOLER-OIL

39067-0004

$776.89

39156

PAD

39156-0018

$4.12

39192

PIPE-WATER

39192-0012

$69.41

39192A

PIPE-WATER

39192-0014

$69.41

39192B

PIPE-WATER

39192-1151

Unavailable

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1187

$38.93

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59502

FAN-ASSY

59502-0002

$898.83

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92002A

BOLT,6X12

92002-1569

Unavailable

92015

NUT

92015-1487

$3.64

92015A

NUT,CLAMP,6MM

92015-1531

$4.18

92015B

NUT

92015-1700

$6.55

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,18.54X2.6

92055-1350

$3.32

92075

DAMPER,RUBBER

92075-1123

$3.81

92075A

DAMPER

92075-1634

$3.57

130

BOLT-FLANGED,6X12

130J0612

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

670

O RING,21MM

670B2021

$3.57

671

O RING,65MM

671B2565

$6.75

92143

COLLAR

92143-1353

$6.54

92143A

COLLAR

92143-1962

$4.24

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,FLANGED-SMALL,6X12

92150-1841

$3.29

92151

BOLT,OIL COOLER

92151-1366

$89.23

92151A

BOLT,FLANGED,6X16

92151-1774

Unavailable

92160

DAMPER

92160-1863

$4.22

92171

CLAMP,COOLING HOSE

92171-0142

$8.71

92171A

CLAMP

92171-0179

$6.25

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,6X14

92172-0004

$1.98

92200

WASHER,OIL COOLER

92200-1379

$2.44

92210

NUT

92210-1125

$3.63
