2005 Kawasaki Z1000 Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

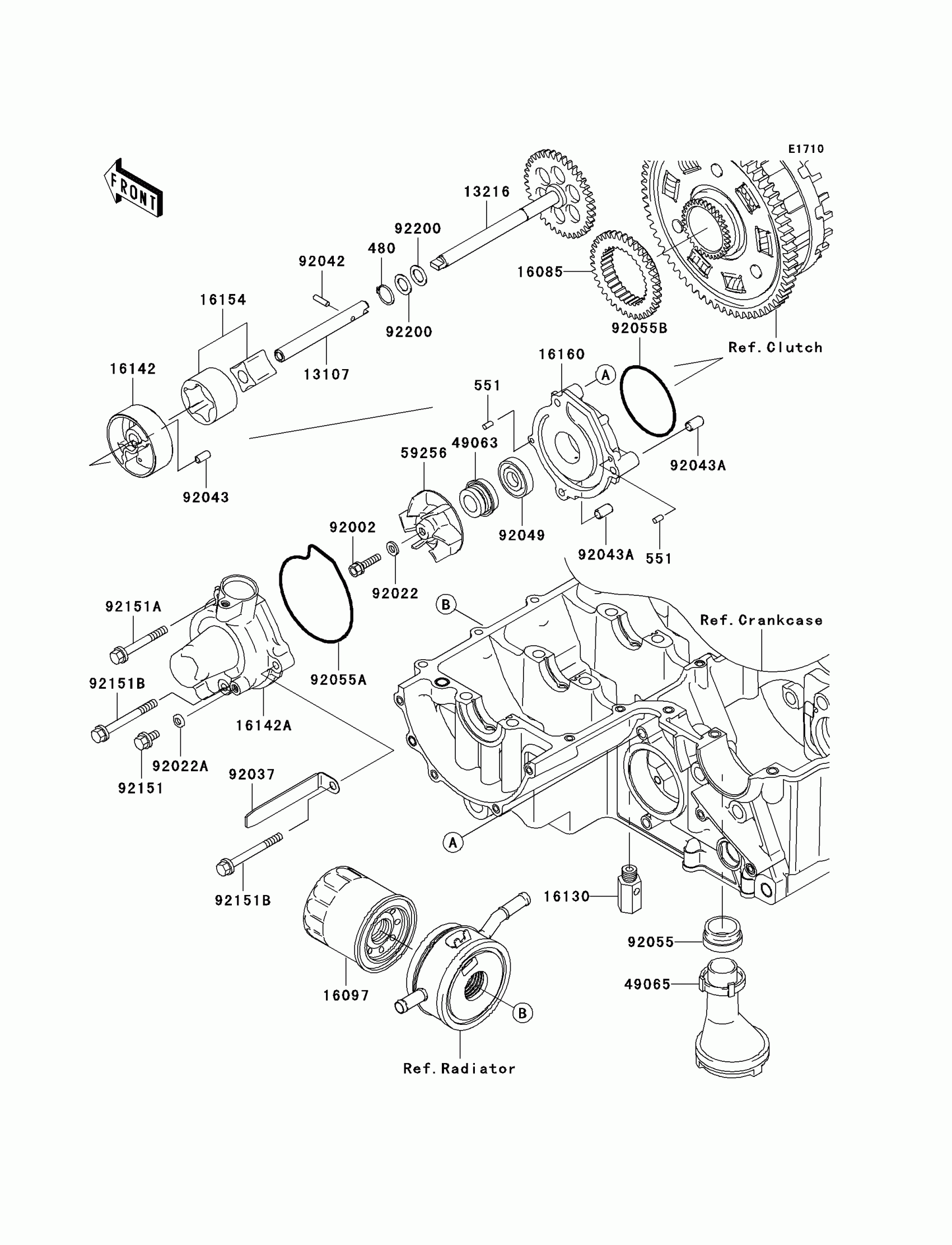

2005 Kawasaki Z1000 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

13107

SHAFT,OIL PUMP

13107-0046

1
Out of stock

13216

GEAR-COMP,OIL PUMP,37T

13216-1168

1
Out of stock

16085

GEAR,OIL PUMP,37T

16085-1305

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0002

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

16142

COVER-PUMP,OIL

16142-1146

1
Out of stock

16142A

COVER-PUMP,WATER

16142-1174

1
Out of stock

16154

ROTOR-PUMP

16154-1124

1
Out of stock

16160

BODY,OIL PUMP

16160-1280

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

49065

FILTER-OIL

49065-1078

1
Out of stock

59256

IMPELLER

59256-1074

1
Out of stock

92002

BOLT,6X22

92002-1154

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP

92037-1679

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92043

PIN,4.2X6X12

92043-1262

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

1
Out of stock

92055

RING-O,OIL FILTER

92055-1503

1
Out of stock

92055A

RING-O,WATER PUMP COVER

92055-1571

1
Out of stock

92055B

RING-O,59.6X2.4

92055-3018

1
Out of stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92151A

BOLT,6X50

92151-1234

1
Out of stock

92151B

BOLT,6X60

92151-1235

1
Out of stock

92200

WASHER

92200-1009

1
Out of stock
