2004 Kawasaki Z1000 Chassis Electrical Equipment Diagram

← All diagrams

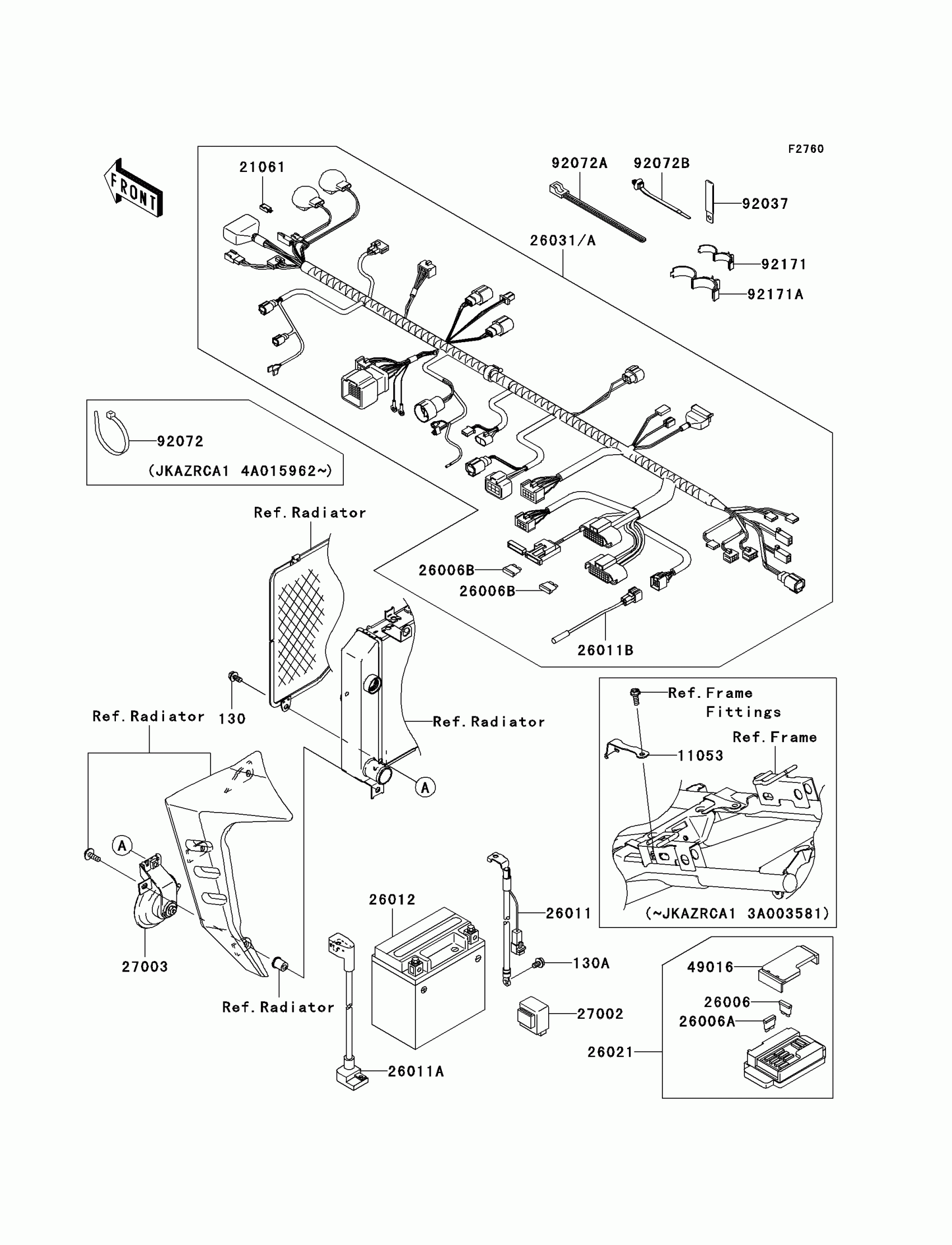

Find the part on the Chassis Electrical Equipment diagram for your 2004 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Z1000 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED,6X10

130V0610

1
Out of stock

21061

RECTIFIER

21061-0001

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26006B

FUSE,15A

26006-1075

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0005

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0006

1
Out of stock

26011B

WIRE-LEAD,DIAGNOSIS

26011-1774

1
Out of stock

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

1
Out of stock

26021

JUNCTION BOX

26021-0001

1
Out of stock

26031

HARNESS,MAIN

26031-0093

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

1
Out of stock

27003

HORN

27003-0002

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=250

92072-1237

1
Out of stock

92072B

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92171

CLAMP,DIA=15

92171-1424

1
Out of stock

92171A

CLAMP,25MM DIA.

92171-1559

1
Out of stock
