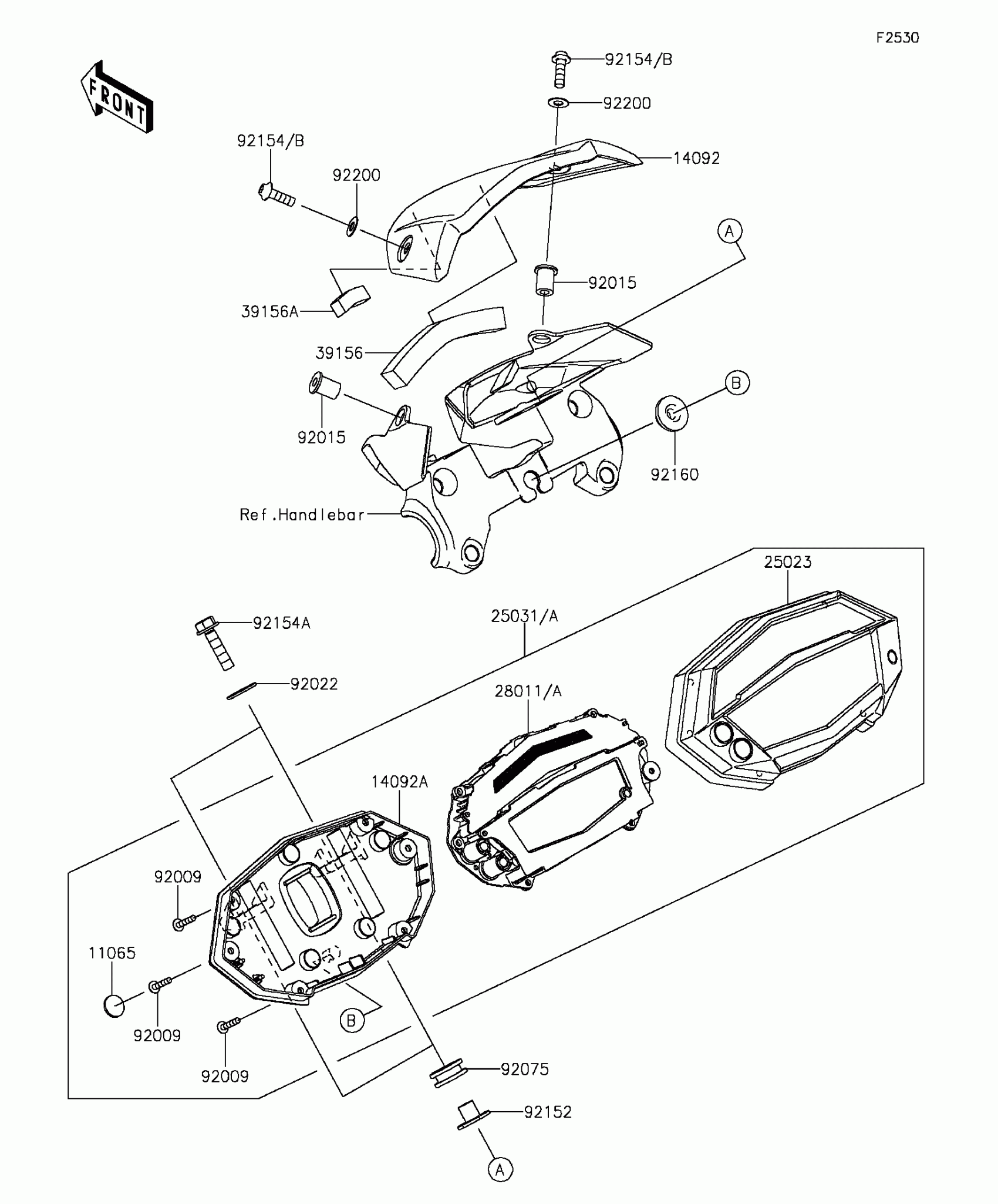

Kawasaki Z1000 ABS Meter(s) Diagram

Description

Price

11065

CAP,WATERPROOF

11065-0836

$2.61

14092

COVER,METER

14092-1133

$65.07

14092A

COVER,LWR CASE

14092-1164

$105.16

25023

COVER-METER CASE,UPP

25023-0094

$181.19

25031A

METER-ASSY,COMBINATION,ABS

25031-0617

$1,025.31

28011A

METER,LCD

28011-0630

$595.19

39156

PAD,RUBBER,12X90X12

39156-1796

$1.55

39156A

PAD,12X10X8

39156-1809

$1.59

92009

SCREW,TAPPING,3X16

92009-1391

$2.76

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.2X18X1.2

92022-1369

$3.56

92075

DAMPER

92075-1634

$3.57

92152

COLLAR,6X9X11.1

92152-2075

$2.92

92154A

BOLT,FLANGED,6X25

92154-0707

$0.95

92154B

BOLT,SOCKET,5X16

92154-1701

$0.95

92160

DAMPER

92160-1613

$2.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36
