2016 Kawasaki Z1000 ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

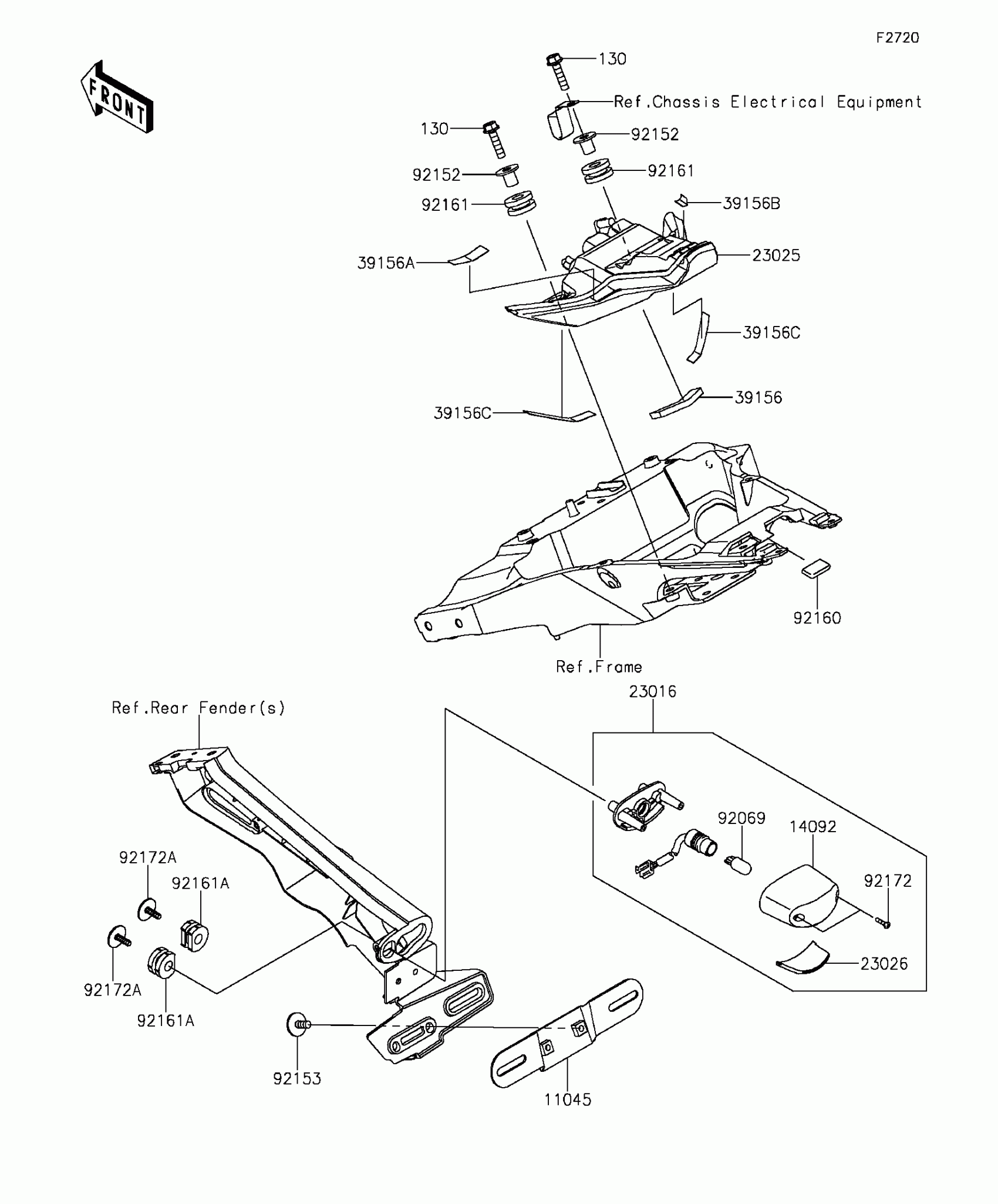

2016 Kawasaki Z1000 ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0552

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0332

1

$213.92

In stock

23026

LENS,LICENSE LAMP

23026-0015

1

$29.34

In stock

39156

PAD,TAIL LAMP

39156-1746

1

$1.80

In stock

39156A

PAD,TAIL LAMP,LH

39156-1790

1

$1.80

In stock

39156B

PAD,TAIL LAMP,RH

39156-1791

1

$1.80

In stock

39156C

PAD,TAIL LAMP,8X60

39156-1797

1

$4.93

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92152

COLLAR

92152-0666

1

$5.35

In stock

92153

BOLT,6X16

92153-1423

1
Out of stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92161

DAMPER

92161-0163

1

$4.59

In stock

92161A

DAMPER

92161-0776

1

$4.39

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock
