2016 Kawasaki Z1000 ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

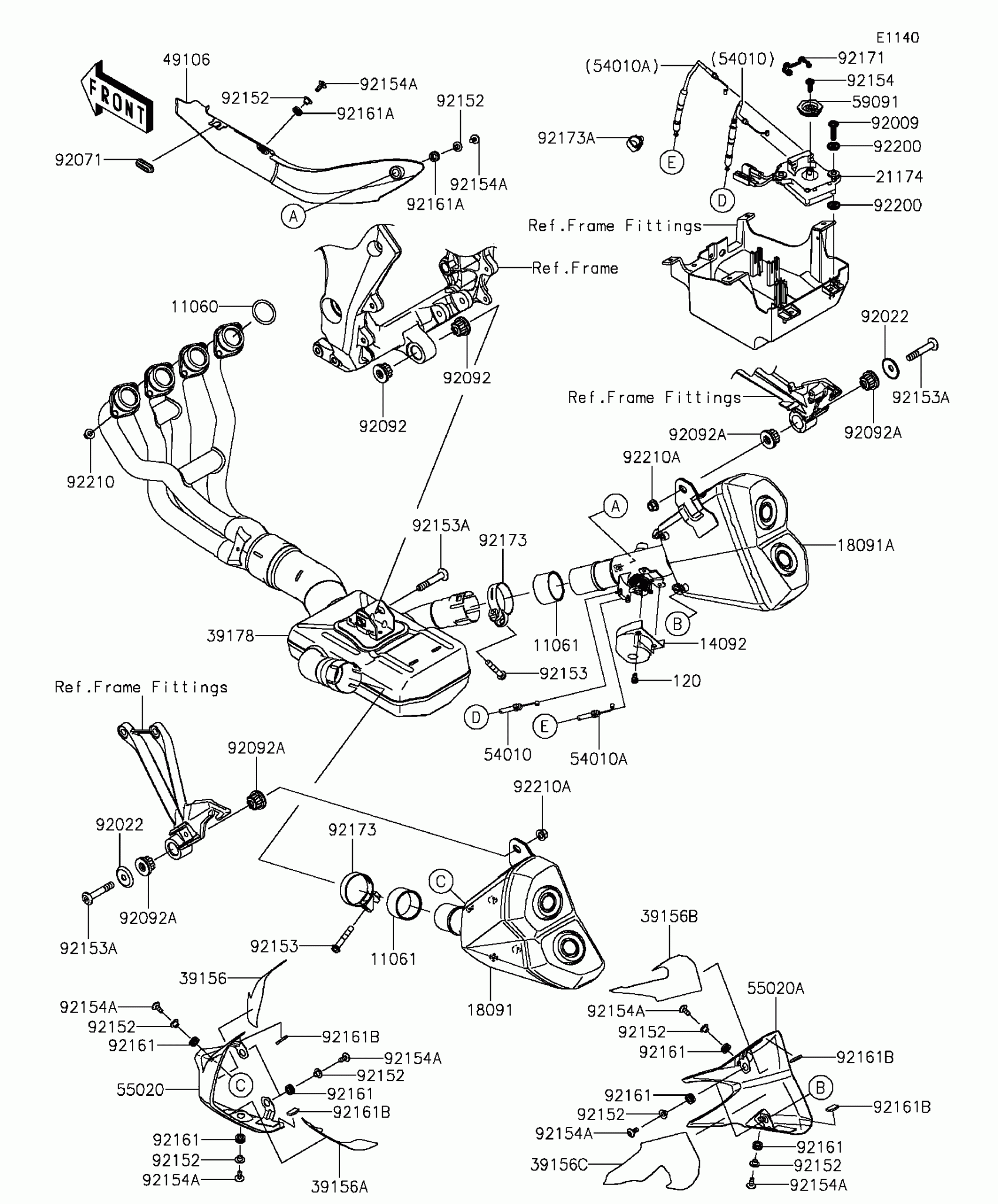

2016 Kawasaki Z1000 ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$6.27

In stock

11061

1

$35.46

In stock

120

BOLT-SOCKET,6X10

120CA0610

1

$1.47

In stock

14092

COVER,PULLEY

14092-1169

1

$40.79

In stock

18091

1

$1,136.39

In stock

18091A

1

$1,380.95

In stock

21174

MOTOR-ELECTRIC

21174-0005

1

$344.73

In stock

39156

PAD,LH,UPP

39156-1728

1

$4.49

In stock

39156A

PAD,LH,LOW

39156-1729

1

$5.66

In stock

39156B

PAD,RH,UPP

39156-1730

1

$7.51

In stock

39156C

PAD,RH,LOW

39156-1731

1

$7.51

In stock

39178

1

$1,701.00

In stock

49106

COVER-MUFFLER

49106-0762

1

$214.59

In stock

54010

CABLE,OPEN,WHITE

54010-0119

1

$84.01

In stock

54010A

CABLE,CLOSE,BLACK

54010-0120

1

$84.01

In stock

55020

GUARD,LH

55020-0907

1

$187.12

In stock

55020A

GUARD,RH

55020-0908

1

$187.12

In stock

59091

PULLEY

59091-0007

1

$20.88

In stock

92009

SCREW,TAPPING,6X30

92009-1481

1
Out of stock

92022

WASHER

92022-289

1
Out of stock

92071

GROMMET

92071-0722

1

$4.58

In stock

92092

BUSHING-RUBBER

92092-1081

1

$22.88

In stock

92092A

1

$18.45

In stock

92152

COLLAR,6.3X8.3X16

92152-0286

1

$4.47

In stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92153A

BOLT,SOCKET,10X58

92153-1930

1

$8.46

In stock

92154

BOLT,TORX,5X18

92154-0217

1

$3.27

In stock

92154A

BOLT,SOCKET,6X14

92154-0907

1

$1.68

In stock

92161

DAMPER

92161-0306

1

$4.47

In stock

92161A

DAMPER

92161-0308

1

$3.51

In stock

92161B

DAMPER

92161-0856

1

$10.69

In stock

92171

CLAMP

92171-0292

1

$9.76

In stock

92173

CLAMP

92173-0037

1

$25.68

In stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92200

WASHER

92200-0078

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

92210A

NUT

92210-0568

1
Out of stock
