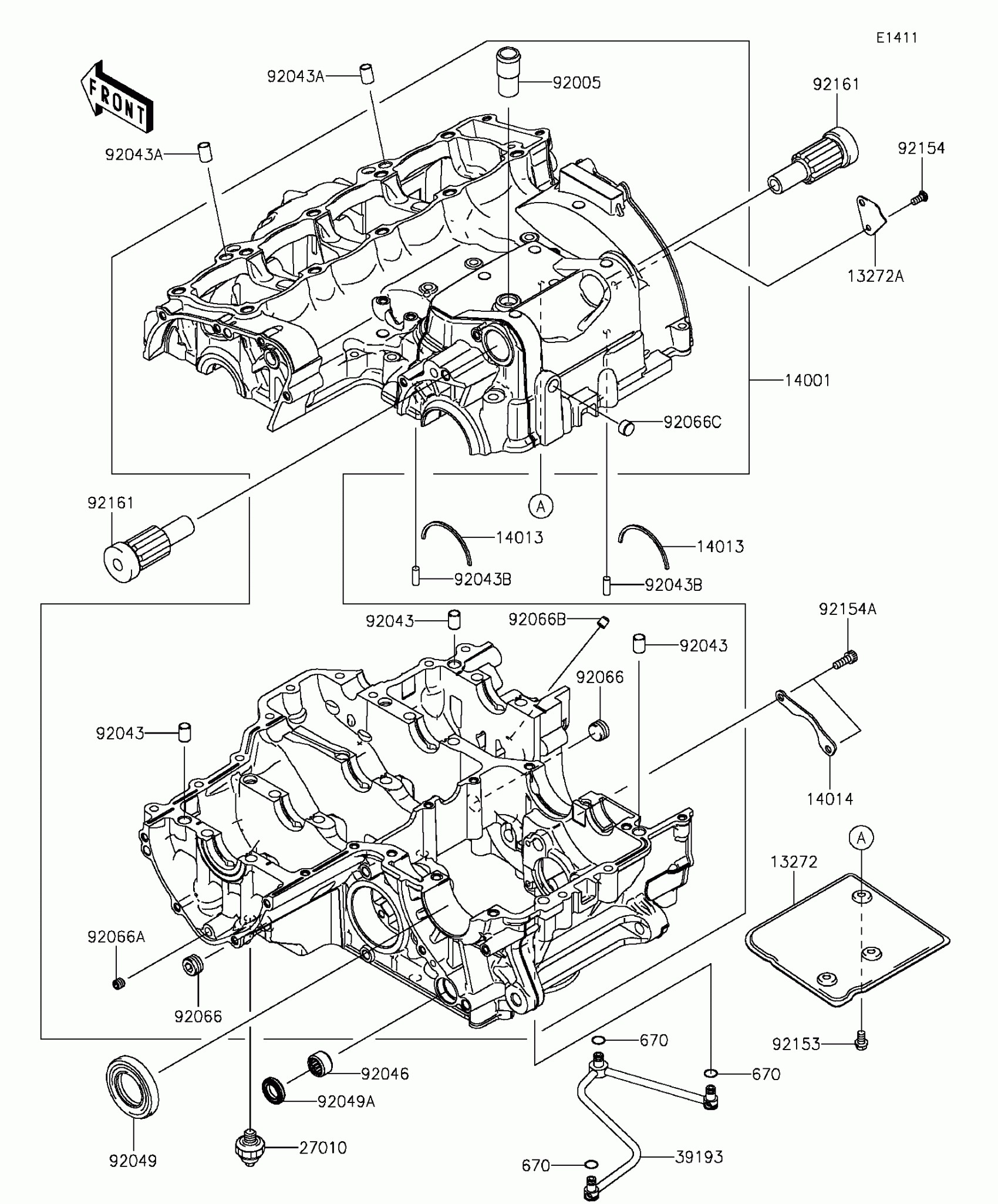

Kawasaki Z1000 ABS Crankcase Diagram

#

Description
Price

13272

PLATE,BREATHER,UPP

13272-0698

$9.29

13272A

PLATE,BREATHER,SIDE

13272-0699

$3.59

14001

SET-CRANKCASE

14001-0612

$2,001.27

14013

RING-POSITION

14013-1051

$3.03

14014

PLATE-POSITION

14014-0036

$5.19

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

39193

PIPE-OIL

39193-0054

$51.94

670

O RING

670D1505

$3.29

92005

FITTING,BREATHER

92005-1238

$10.85

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,8.2X10X14

92043-1264

$0.51

92043B

PIN,6X16

92043-1690

$3.81

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,TC32578

92049-1474

$13.91

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92066

PLUG,PT3/8X10

92066-0003

$2.66

92066A

PLUG

92066-0158

$5.29

92066B

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066C

PLUG

92066-1110

$5.66

92153

BOLT,6X10

92153-0381

$1.98

92154

BOLT,TORX,5X12

92154-0299

$1.73

92154A

BOLT,SOCKET,6X16

92154-0484

$1.44

92161

DAMPER

92161-0801

$25.31
