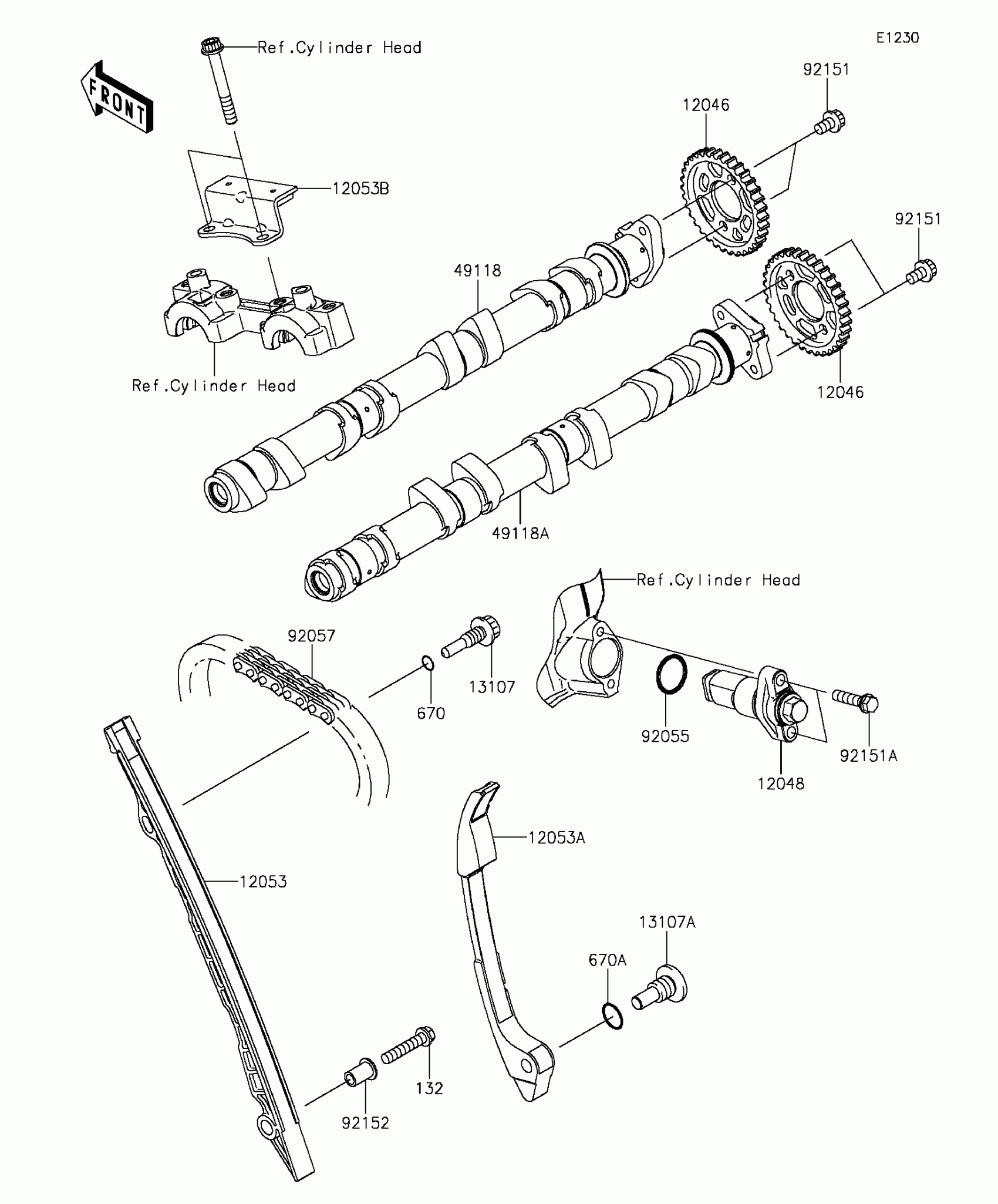

Kawasaki Z1000 ABS Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAMSHAFT,34T

12046-0564

Unavailable

12048

TENSIONER-ASSY

12048-0080

$141.91

12053

GUIDE-CHAIN,FR

12053-0161

$45.27

12053A

GUIDE-CHAIN,RR

12053-0162

$70.55

12053B

GUIDE-CHAIN,UPP

12053-0163

$38.79

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

13107A

SHAFT

13107-1376

$8.46

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

49118

CAMSHAFT-COMP,EXHAUST

49118-0144

$449.39

49118A

CAMSHAFT-COMP,INTAKE

49118-0782

$449.39

670

O RING,9MM

670D1509

$3.57

670A

O RING,14MM

670D2014

$4.18

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,98XRH2015-126M

92057-0202

$97.13

92151

BOLT,SOCKET,6X10

92151-1829

$1.98

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1167

$5.25
