2016 Kawasaki Z1000 ABS Cylinder Head Diagram

← All diagrams

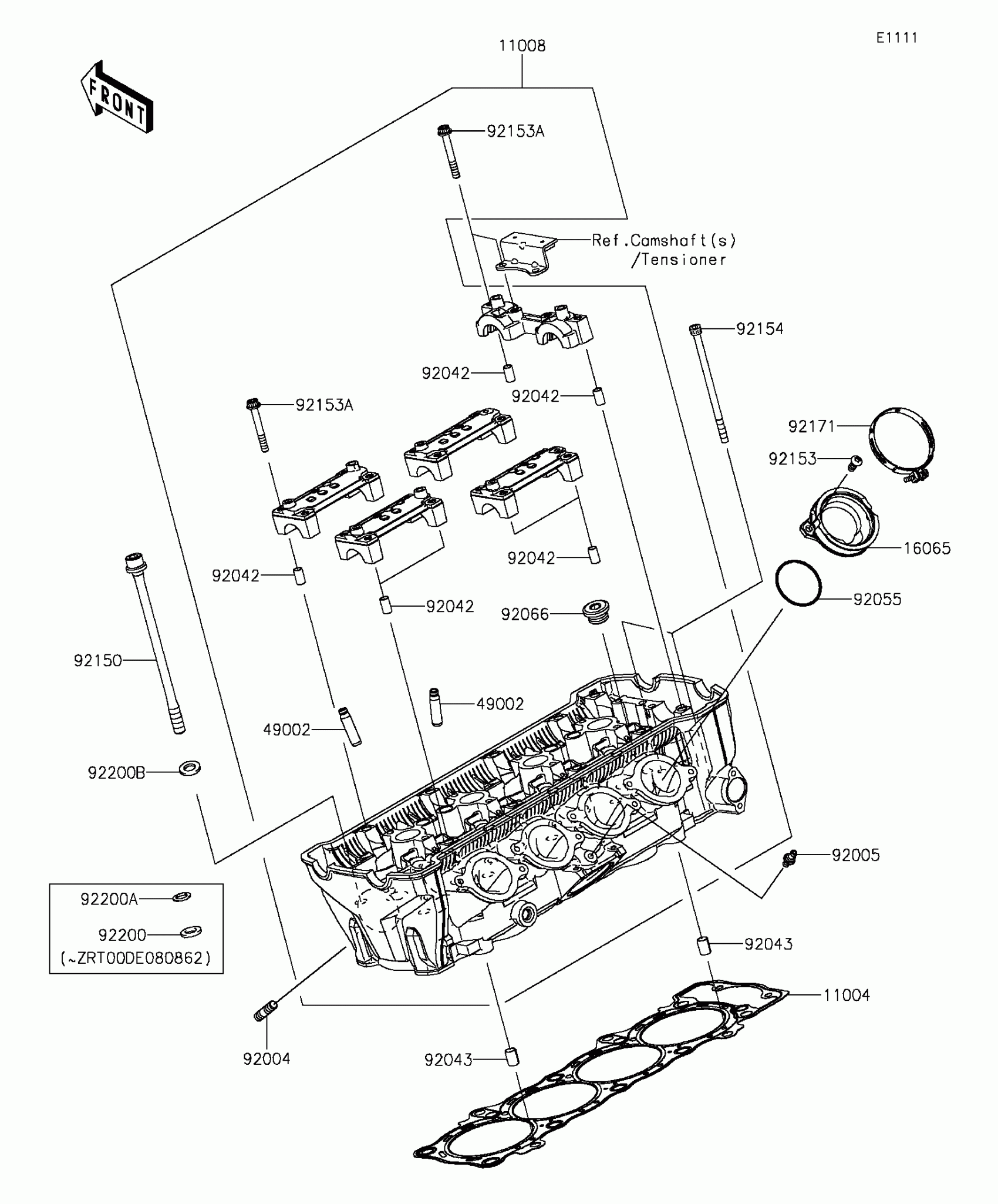

Find the part on the Cylinder Head diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z1000 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0084

1

$106.21

In stock

11008

HEAD-COMP-CYLINDER

11008-0837

1

$2,756.84

In stock

16065

HOLDER-CARBURETOR

16065-0067

1

$36.81

In stock

49002

GUIDE-VALVE

49002-0009

1

$31.33

In stock

92004

STUD,8X18

92004-0049

1
Out of stock

92005

FITTING

92005-1273

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,42X1.9

92055-1536

1

$2.27

In stock

92066

PLUG,18X10

92066-0016

1

$12.31

In stock

92150

BOLT,10X165

92150-1368

1

$17.66

In stock

92153

BOLT,TORX,6X14

92153-0406

1
Out of stock

92153A

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,SOCKET,6X115

92154-0205

1

$7.92

In stock

92171

CLAMP,60MM

92171-0729

1

$17.39

In stock

92200B

WASHER,10.2X18.4X1.8

92200-1691

1
Out of stock
