2016 Kawasaki Z1000 ABS Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2016 Kawasaki Z1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

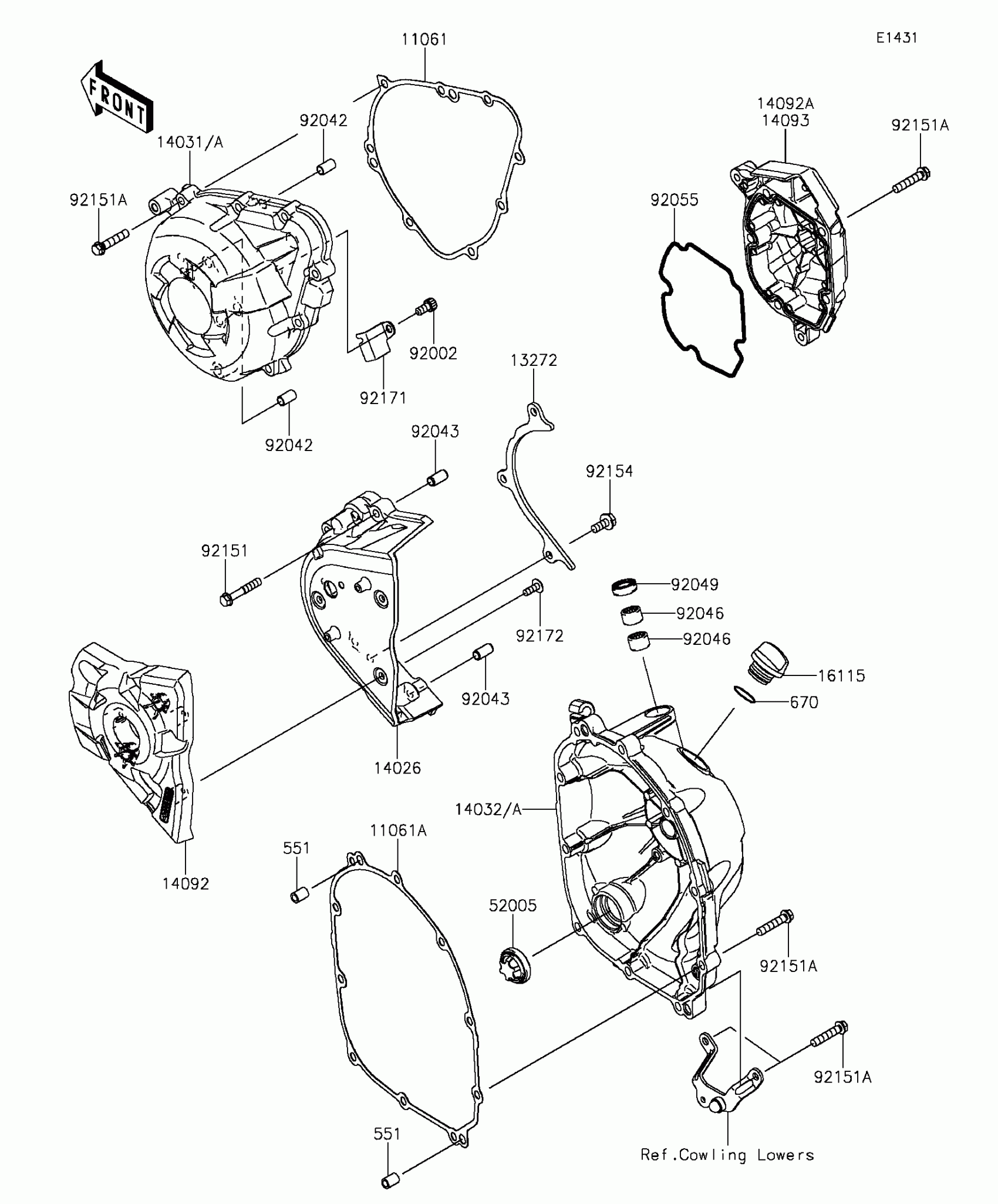

2016 Kawasaki Z1000 ABS Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$13.85

In stock

11061A

GASKET,CLUTCH COVER

11061-0404

1

$22.04

In stock

13272

PLATE

13272-0859

1

$14.78

In stock

14026

COVER-CHAIN

14026-0114

1

$185.55

In stock

14031A

COVER-GENERATOR

14031-0603

1

$249.17

In stock

14032A

COVER-CLUTCH

14032-0621

1

$266.02

In stock

14092

COVER,OUTER

14092-0032

1

$14.64

In stock

14093

COVER,PULSER

14093-0379

1

$60.45

In stock

16115

CAP-OIL FILLER

16115-1053

1

$9.67

In stock

52005

GAUGE

52005-1120

1

$21.14

In stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

670

O RING,20MM

670B2020

1

$1.12

In stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

1

$12.37

In stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,PULSER COVER

92055-0199

1

$7.60

In stock

92151

BOLT,6X35

92151-1135

1

$3.33

In stock

92151A

BOLT,6X30

92151-1873

1

$3.70

In stock

92154

BOLT,FLANGED,6X14

92154-0482

1

$1.44

In stock

92171

CLAMP

92171-0708

1

$3.66

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock
