1975 Kawasaki Z1 Side Covers/oil Tank Diagram

← All diagrams

Find the part on the Side Covers/oil Tank diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

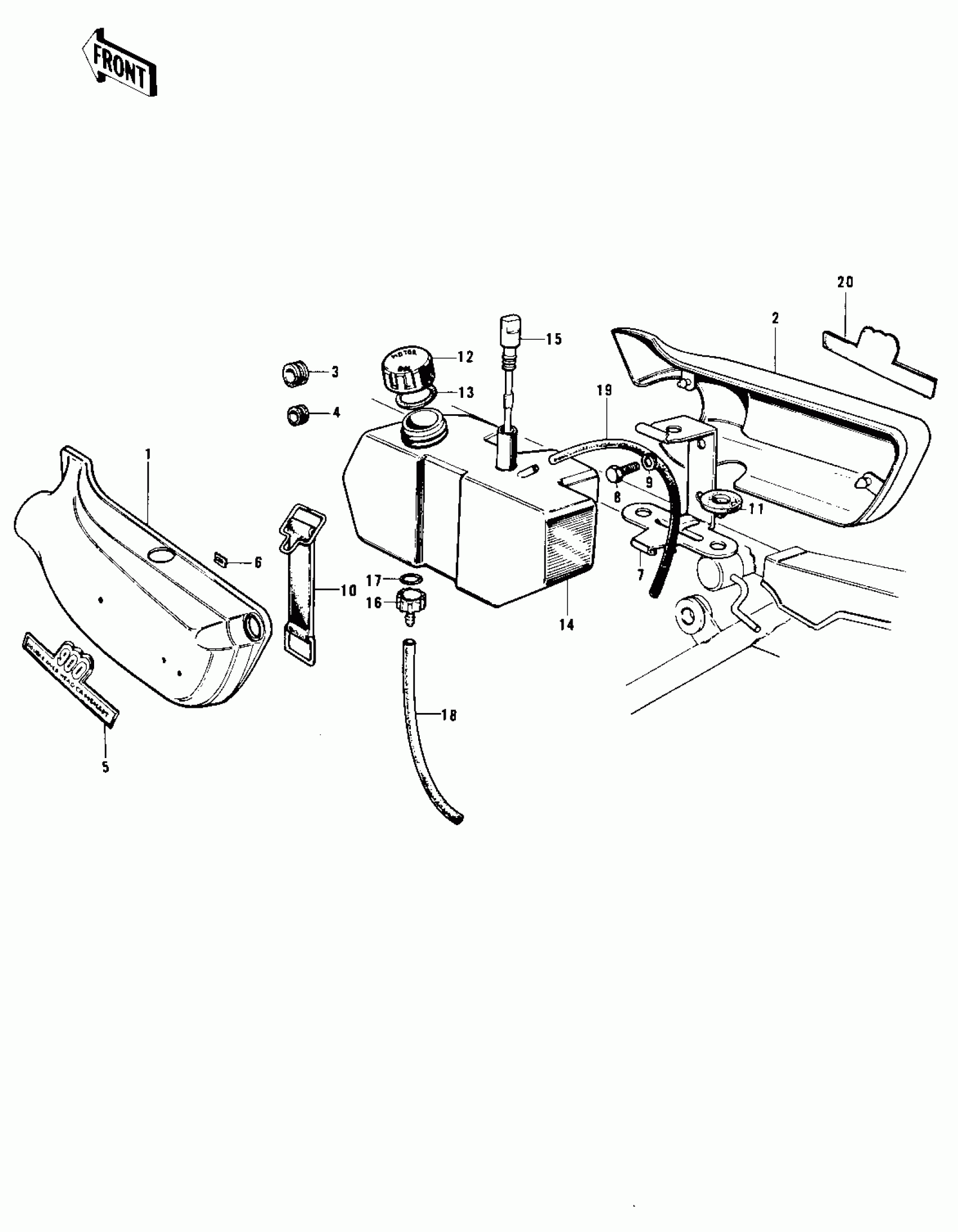

1975 Kawasaki Z1 Side Covers/oil Tank Diagram

#

Description
Price
Status
Order Qty

1

COVER,L.H SIDE,C.BRWN

36001-036-96

Out of stock

1

COVER,L.H SIDE,ORANGE

36001-036-2E

Out of stock

1

COVER,L.H SIDE,YELLOW

36001-036-2F

Out of stock

1

COVER,L.H SIDE,C.RED

36001-036-2R

Out of stock

1

COVER,L.H SIDE,C.BLUE

36001-036-2S

$209.39

In stock

2

COVER,R.H SIDE,C.BRWN

36007-030-96

Out of stock

2

COVER,RH SIDE,ORANGE

36007-030-2E

$118.67

In stock

2

COVER,RH SIDE,YELLOW

36007-030-2F

$169.04

In stock

2

COVER,RH SIDE,C.RED

36007-030-2R

Out of stock

2

COVER,RH SIDE,C.BLUE

36007-030-2S

$268.33

In stock

3

GROMMET

92071-056

Out of stock

4

GROMMET,SIDE COVER

92071-064

Out of stock

5

EMBLEM,SIDE COVER

56018-139

Out of stock

5

EMBLEM,L.H SIDE COVER

56018-197

Out of stock

6

NUT,PUSH,3MM

92018-005

Out of stock

6

NUT,PUSH,3MM

92018-005

Out of stock

7

BRACKET,OIL TANK

32131-001

Out of stock

8

BOLT HEX HEAD 6X12

116B0612

Out of stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

BAND,L=90

92072-045

Out of stock

11

DAMPER,RUBBER

92075-078

Out of stock

12

CAP-OIL TANK

52003-020

Out of stock

13

GASKET-OIL TANK

92065-086

Out of stock

14

TANK,OIL

52001-031

Out of stock

15

GAUGE,OIL LEVEL

52005-005

Out of stock

16

FILTER-OIL

52020-001

Out of stock

17

O RING,15MM

670B2015

Out of stock

18

PIPE-OIL

92059-072

Out of stock

19

PIPE,OIL TANK

92059-057

Out of stock

20

EMBLEM,SIDE COVER

56018-139

Out of stock

20

EMBLEM,R.H SIDE COVER

56018-198

Out of stock
