1975 Kawasaki Z1 Crankcase/breather Cover Diagram

← All diagrams

Find the part on the Crankcase/breather Cover diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

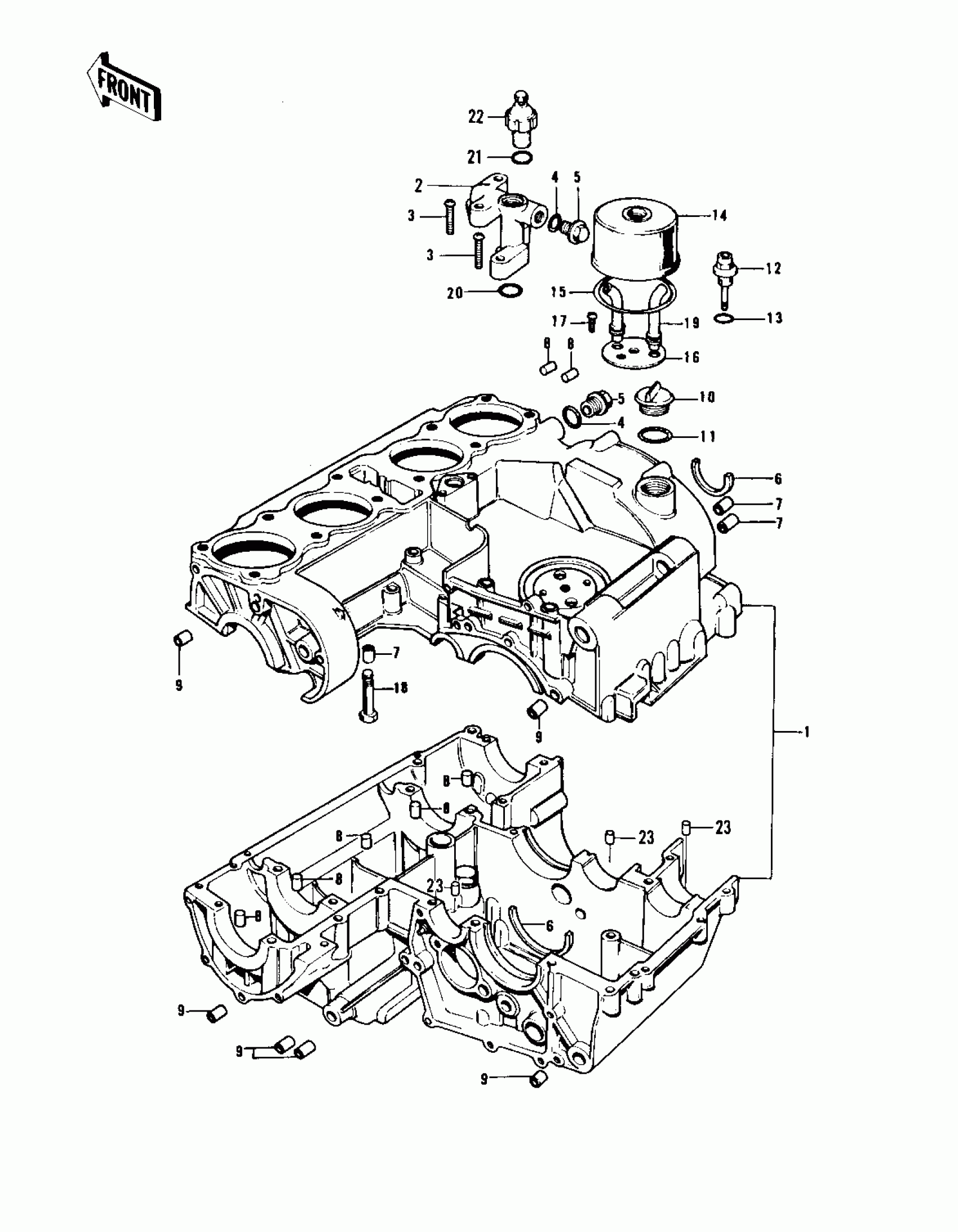

1975 Kawasaki Z1 Crankcase/breather Cover Diagram

#

Description
Price
Status
Order Qty

1

CRANKCASE SET

14001-5022

Out of stock

1

CRANKCASE SET

14001-5022

Out of stock

1

CRANKCASE SET

14001-5022

Out of stock

1

CRANKCASE SET

14001-5025

Out of stock

1

CRANKCASE SET

14001-5025

Out of stock

1

CRANKCASE SET

14001-5025

Out of stock

2

PIPE

16109-003

Out of stock

3

SCREW PAN HEAD 6X35

220B0635

Out of stock

3

BOLT,HEX HEAD,6X35

92001-164

Out of stock

4

O RING,15MM

670B2015

Out of stock

5

PLUG,14X12

92066-021

Out of stock

6

$3.94

In stock

7

PIN,DOWEL,10X14

92043-1037

Out of stock

8

PIN,DOWEL,6X14

610A0614

Out of stock

9

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

10

CAP-OIL FILLER

16115-013

Out of stock

11

RING-O,31.5X2.6

92055-049

Out of stock

12

BOLT,BREATHER FITTING

92003-098

Out of stock

13

O RING,16MM

670B2016

Out of stock

14

BODY,BREATHER

14070-003

Out of stock

15

RING-O,91.6X3.4

92055-052

Out of stock

16

PLATE,BREATHER

14068-007

$9.25

In stock

16

PLATE,BREATHER

14068-007

$9.25

In stock

17

SCREW PAN HEAD 6X18

220B0618

Out of stock

18

BOLT,HEX HEAD,8X72

92003-107

Out of stock

19

PIPE,BREATHER PLATE

92059-118

Out of stock

20

O RING,18MM

670B2018

Out of stock

21

RING-O,19.5X1.5

92055-055

Out of stock

22

SWITCH,OIL PRESSURE

16144-002

Out of stock

23

PIN,DOWEL,6X16

92042-016

Out of stock
