1975 Kawasaki Z1 CAM Chain/tensioner Diagram

← All diagrams

Find the part on the CAM Chain/tensioner diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

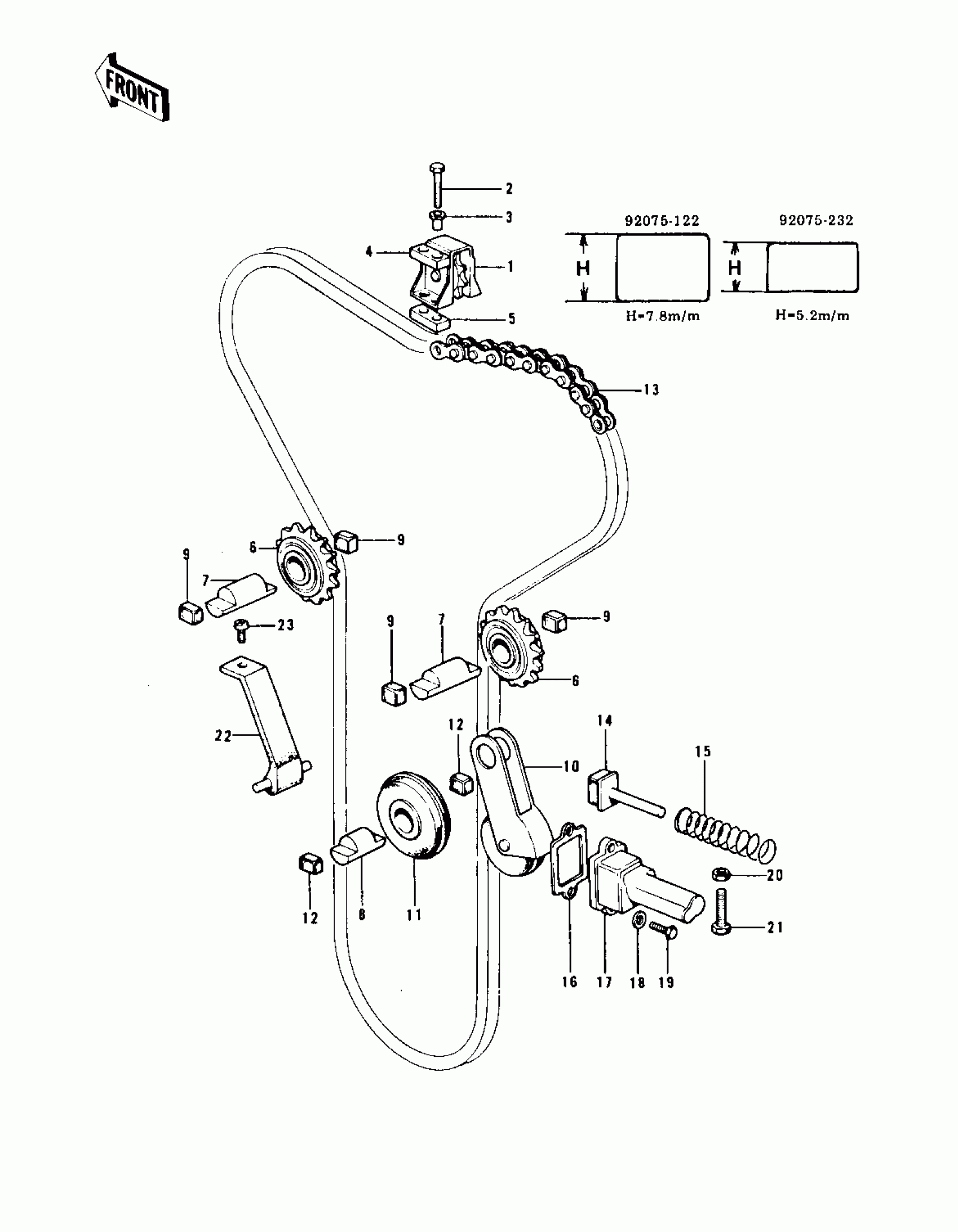

1975 Kawasaki Z1 CAM Chain/tensioner Diagram

#

Description
Price
Status
Order Qty

1

IDLER ASSY,CAM CHAIN

12057-001

Out of stock

2

BOLT-UPSET,6X35

112G0635

Out of stock

3

COLLAR

92027-155

Out of stock

4

RUBBER,IDLER

92075-119

Out of stock

5

RUBBER,IDLER

92075-120

Out of stock

6

IDLER ASSY

12057-002

Out of stock

7

SHAFT-IDLER,GUIDE ROLLAR

12052-005

Out of stock

7

SHAFT-IDLER,GUIDE ROLLAR

12052-005

Out of stock

8

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

Out of stock

9

DAMPER RUBBER

92075-122

Out of stock

9

DAMPER,IDLER SHAFT

92075-232

Out of stock

10

TENSIONER ASSY,CHAIN

12048-001

Out of stock

11

ROLLER,CAM CHAIN GUI

12055-002

Out of stock

12

DAMPER RUBBER

92075-123

Out of stock

13

CHAIN,CAM SHAFT

21070-003

Out of stock

14

PUSH ROD,CAM CHAIN

12054-001

Out of stock

15

SPRING,TENSTIONER

92081-107

Out of stock

16

GASKET,TENSIONER

11009-1980

Out of stock

16

GASKET,TENSIONER

11009-1980

Out of stock

17

HOLDER,TENSIONER

12049-1003

Out of stock

17

HOLDER,TENSIONER

12049-1003

Out of stock

18

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

19

BOLT-UPSET,6X20

112G0620

Out of stock

20

NUT 6MM

311B0600

Out of stock

21

BOLT,TENSIONER ADJUS

92003-093

Out of stock

22

GUIDE,CAM CHAIN

12053-019

Out of stock

22

GUIDE,CAM CHAIN

12053-019

Out of stock

23

SCREW PAN HEAD 6X10

220B0610

Out of stock
