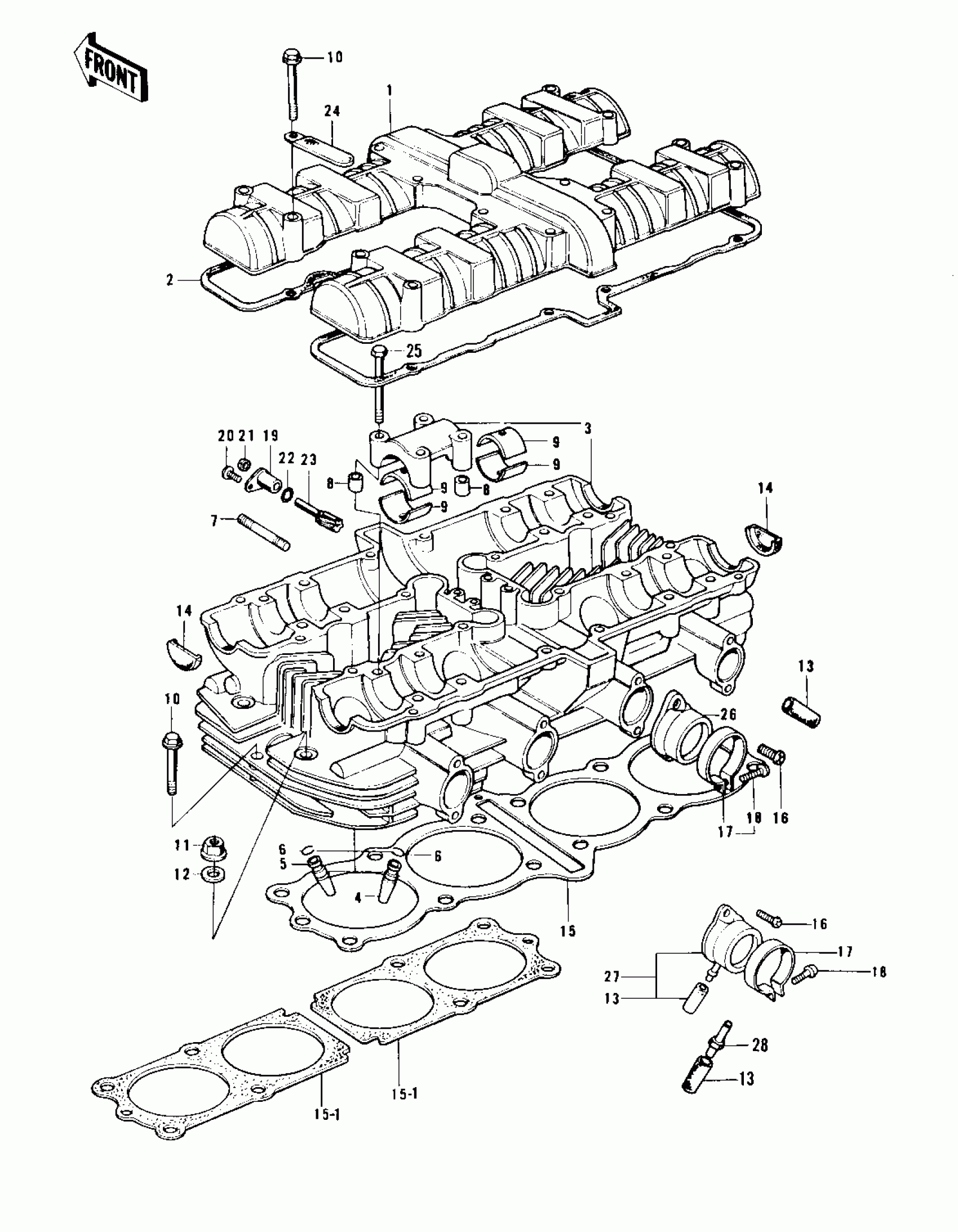

1975 Kawasaki Z1 Cylinder Head/cover Diagram

← All diagrams

Find the part on the Cylinder Head/cover diagram for your 1975 Kawasaki Z1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Kawasaki Z1 Cylinder Head/cover Diagram

#

Description
Price
Status
Order Qty

1

COVER,CYLINDER HEAD

14025-1119

Out of stock

1

COVER,CYLINDER HEAD

11022-012-2H

Out of stock

2

GASKET,CYL HEAD COVE

11023-006

Out of stock

3

CYLINDER HEAD

11002-012

Out of stock

3

CYLINDER HEAD,BARREL FINISH

11002-016-2H

Out of stock

4

GUIDE,INLET VALVE

12013-001

Out of stock

4

GUIDE,INLET VALVE

12013-001

Out of stock

5

GUIDE, EXHAUST VALVE

12013-002

Out of stock

5

GUIDE, EXHAUST VALVE

12013-002

Out of stock

6

RING-SNAP,VALVE GUIDE

92036-023

Out of stock

6

RING-SNAP,VALVE GUIDE

92036-023

Out of stock

7

STUD,6X46

92004-049

Out of stock

8

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

9

BUSHING,CAMSHAFT

13034-030

Out of stock

10

BOLT,FLANGED,6X45

92003-092

Out of stock

11

NUT,FLANGED CAP,10MM

92015-076

Out of stock

11

NUT,FLANGED CAP,10MM

92015-076

Out of stock

12

WASHER,PLAIN,10MM

92022-215

Out of stock

13

PLUG,12X25

92068-006

Out of stock

14

PLUG,CAM SHAFT

92066-017

Out of stock

15

GASKET,CYLINDER HEAD

11004-052

Out of stock

15-1

GASKET,CYLINDER HEAD

11004-066

Out of stock

16

SCREW PAN HEAD 6X18

220B0618

Out of stock

17

CLAMP,HOLDER

92037-077

Out of stock

18

SCREW-PAN-CROS

220B0520

Out of stock

19

GUIDE,TACHOMETER GEA

92087-5001

Out of stock

20

SCREW PAN HEAD 6X12

220B0612

Out of stock

21

SEAL-OIL

92050-075

Out of stock

22

O RING,9.8X1.9

670B1510

Out of stock

23

GEAR,TACHOMETER,10T

13223-011

Out of stock

24

CLAMP,WIRING HARNESS

21126-008

Out of stock

25

BOLT,FLANGED,6X45

92003-092

Out of stock

26

HOLDER-R.H CARBRETOR

16065-028

Out of stock

26

HOLDER-R.H CARBRETOR

16065-028

Out of stock

26

HOLDER-R.H CARBRETOR

16065-028

Out of stock

27

HOLDER-R.H CARBRETOR

16065-028

Out of stock

27

HOLDER,CARBURETOR,L.

16065-029

Out of stock

27

HOLDER,CARBURETOR,L.

16065-029

Out of stock

28

NIPPLE

92005-005

Out of stock
