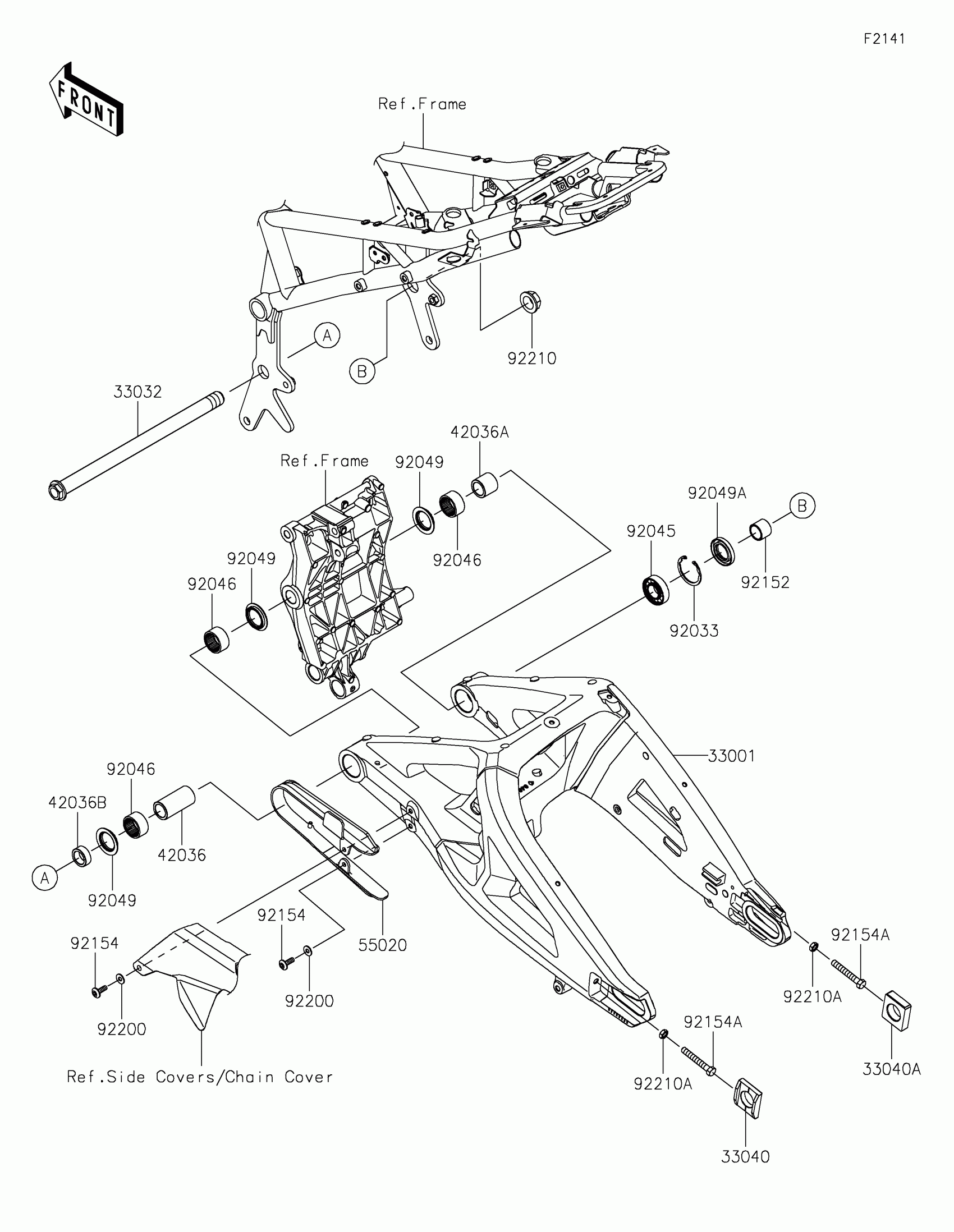

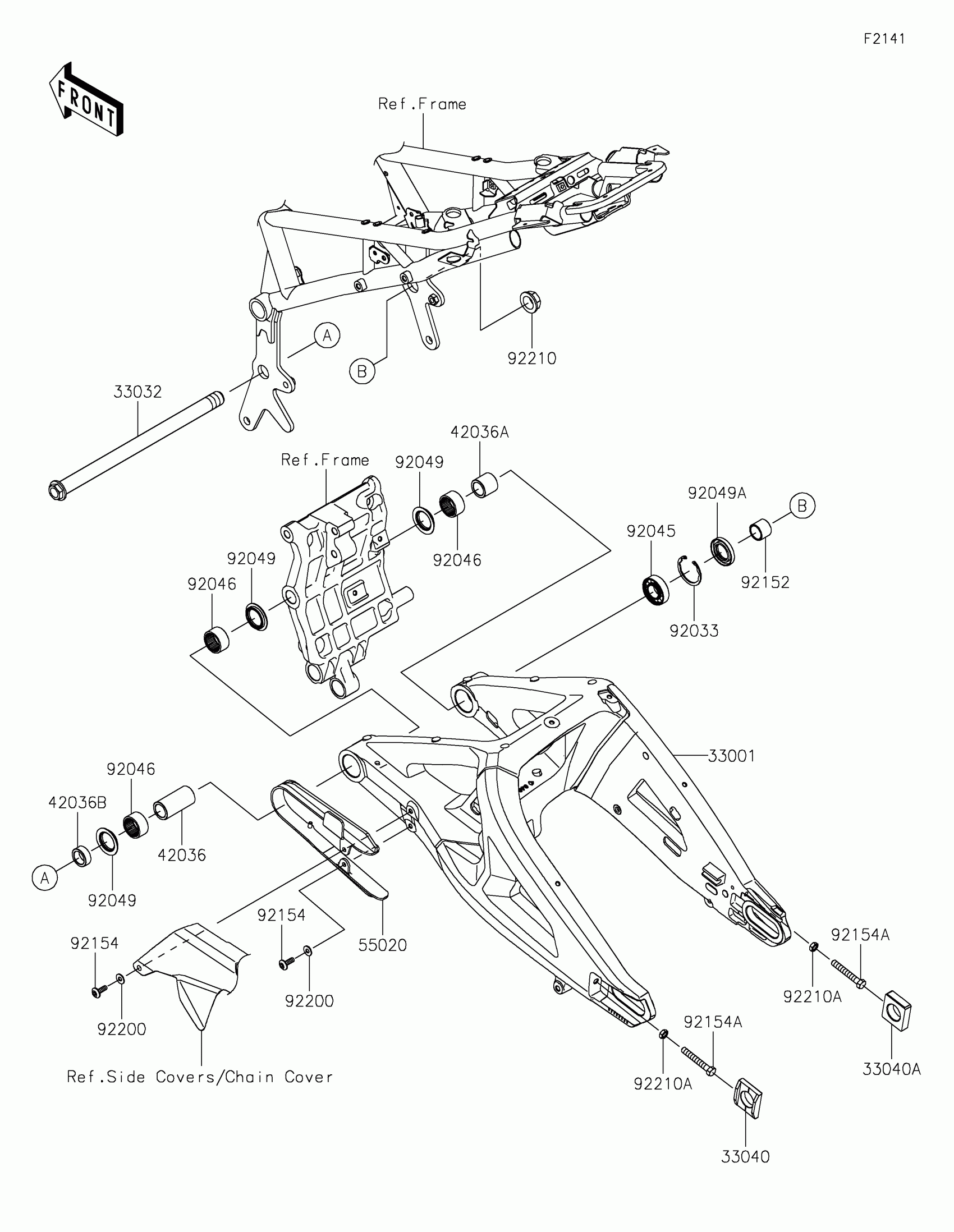

Kawasaki Z H2 SE Swingarm Diagram

#

Description
Price

33001

ARM-COMP-SWING

33001-0722

$2,204.67

33032

SHAFT-SWING ARM

33032-0063

$106.56

33040

ADJUSTER-CHAIN,RH

33040-0027

$39.39

33040A

ADJUSTER-CHAIN,RH

33040-1114

$14.54

42036

SLEEVE,20.1X28X56.5

42036-0757

$51.28

42036A

SLEEVE,20.1X28X25.7

42036-0762

$32.39

42036B

SLEEVE,20.1X28X10.7

42036-0846

$41.29

55020

GUARD,CHAIN

55020-0561

$41.04

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,28X34X5.7

92049-1181

$7.08

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92152

COLLAR,20.2X25X19.5

92152-2637

$14.93

92154

BOLT,SOCKET,6X18

92154-1694

$1.72

92154A

BOLT-SMALL,8X55

92154-1962

$4.29

92200

WASHER,6.2X15X1.2

92200-1762

$0.95

92210

NUT,FLANGED,20MM

92210-0320

$9.07

92210A

NUT-HEX-SMALL,8MM

92210-1459

$3.01
