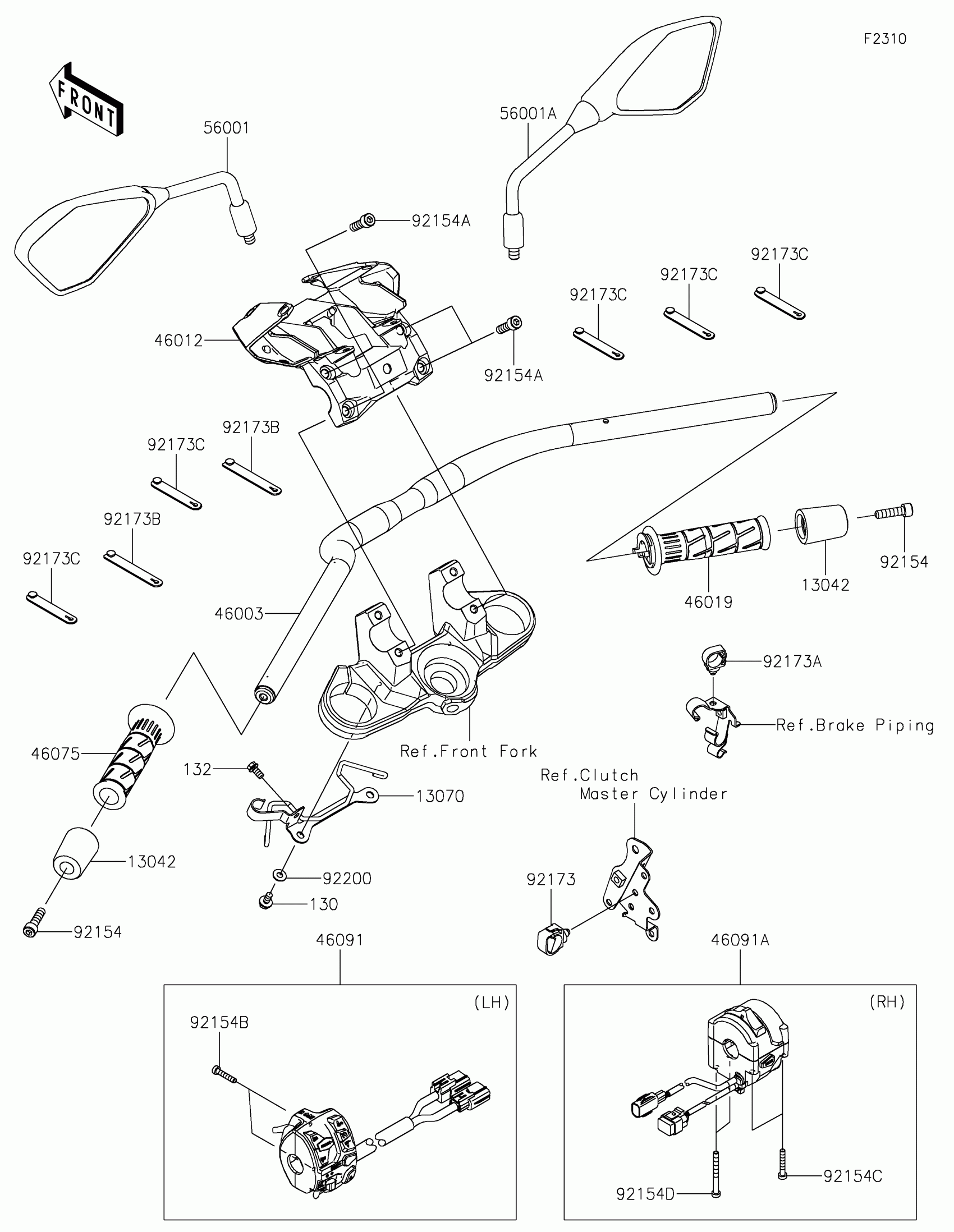

Kawasaki Z H2 SE Handlebar Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

13042

WEIGHT,HANDLE

13042-5007

$45.66

13070

GUIDE

13070-0977

$35.17

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

46003

HANDLE

46003-0791

$271.02

46012

HOLDER-HANDLE

46012-0402

$144.84

46019

GRIP-ASSY,THROTTLE

46019-0100

$42.60

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46091

HOUSING-ASSY-CONTROL,LH

46091-0569

$447.28

46091A

HOUSING-ASSY-CONTROL,RH

46091-0570

$250.73

56001

MIRROR-ASSY,LH

56001-0299

$69.91

56001A

MIRROR-ASSY,RH

56001-0300

$79.98

92154

BOLT,SOCKET,8X30

92154-0502

$2.84

92154A

BOLT,SOCKET,8X25

92154-1236

$3.19

92154B

BOLT,SOCKET,5X25

92154-2596

$3.51

92154C

BOLT,5X30

92154-3921

$3.51

92154D

BOLT,5X50

92154-3922

$3.51

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173B

CLAMP

92173-2194

$1.56

92173C

CLAMP

92173-2199

$1.32

92200

WASHER,6.1X14X1

92200-1948

$2.41
