2021 Kawasaki Z H2 Se Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

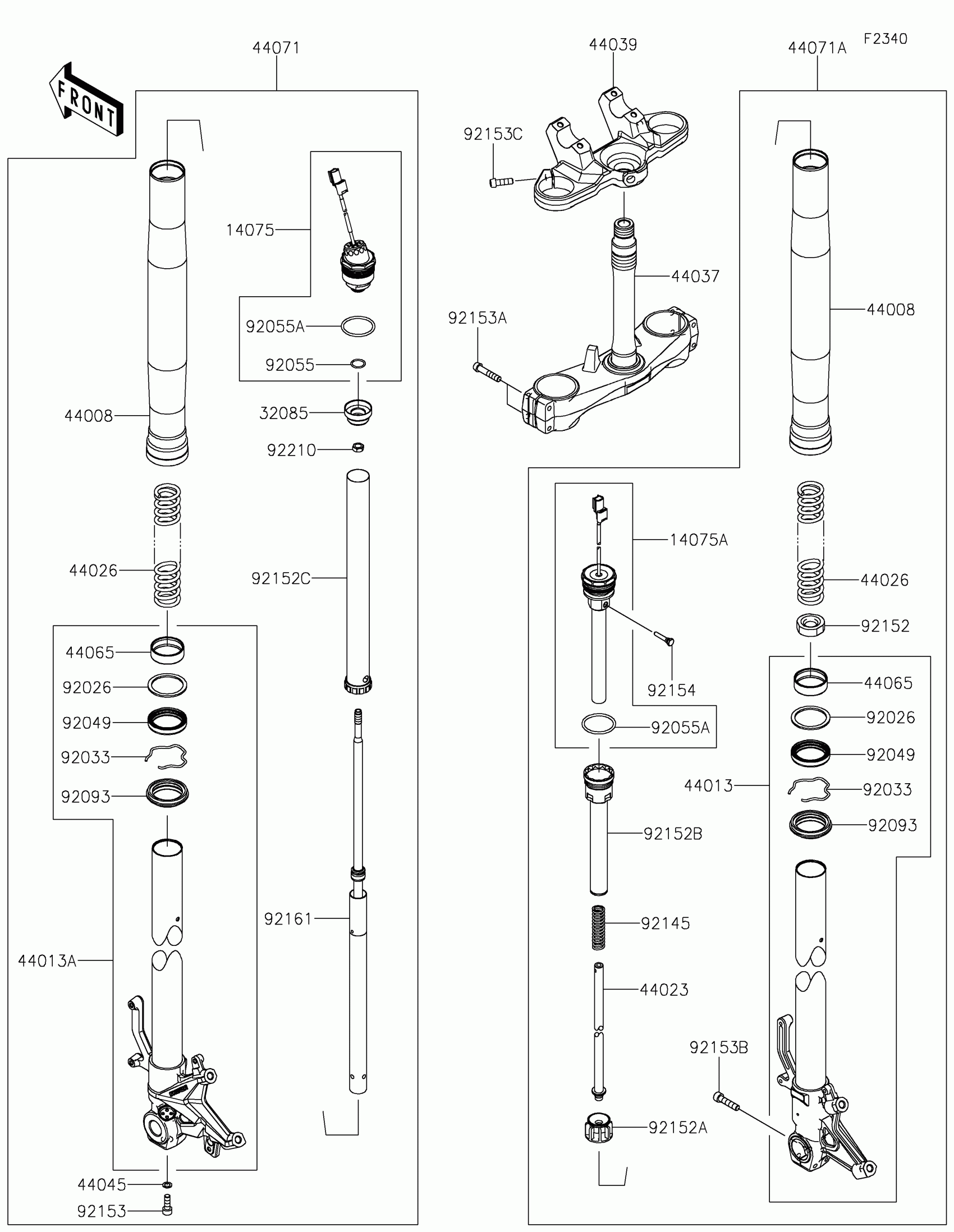

2021 Kawasaki Z H2 Se Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14075

CAP-ASSY,FORK,LH

14075-0713

1

$1,497.15

In stock

14075A

CAP-ASSY,FORK,RH

14075-0714

1

$956.24

In stock

32085

STOPPER

32085-0851

1

$46.96

In stock

44008

PIPE-FORK OUTER

44008-0104

1

$514.79

In stock

44013

PIPE-FORK INNER,RH

44013-0379

1

$736.02

In stock

44013A

PIPE-FORK INNER,LH

44013-0380

1

$750.04

In stock

44023

CYLINDER-SET-FORK

44023-0178

1

$169.26

In stock

44026

SPRING-FRONT FORK

44026-0273

1

$73.31

In stock

44037

HOLDER-FORK UNDER

44037-0205

1

$947.44

In stock

44039

HOLDER-FORK UPPER

44039-0207

1

$327.89

In stock

44045

1

$4.88

In stock

44065

BUSHING-FRONT FORK

44065-0026

1

$23.28

In stock

44071

DAMPER-ASSY,FORK,LH

44071-1489

1

$2,863.45

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-1490

1

$2,061.88

In stock

92026

SPACER

92026-0165

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL

92049-0119

1
Out of stock

92055

RING-O

92055-0927

1

$3.14

In stock

92055A

RING-O,FORK CAP

92055-1497

1

$4.69

In stock

92093

SEAL

92093-0759

1

$23.49

In stock

92145

SPRING

92145-2217

1

$36.16

In stock

92152

COLLAR

92152-2564

1

$79.79

In stock

92152A

COLLAR

92152-2565

1

$29.67

In stock

92152B

COLLAR

92152-2658

1

$46.96

In stock

92152C

COLLAR

92152-2799

1

$30.65

In stock

92153

BOLT,SOCKET,8X22

92153-0028

1
Out of stock

92153A

BOLT

92153-0853

1
Out of stock

92153B

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153C

BOLT

92153-0855

1
Out of stock

92154

BOLT,TOP

92154-3743

1

$43.28

In stock

92161

DAMPER

92161-2407

1

$863.52

In stock

92210

NUT

92210-1764

1

$1.22

In stock
