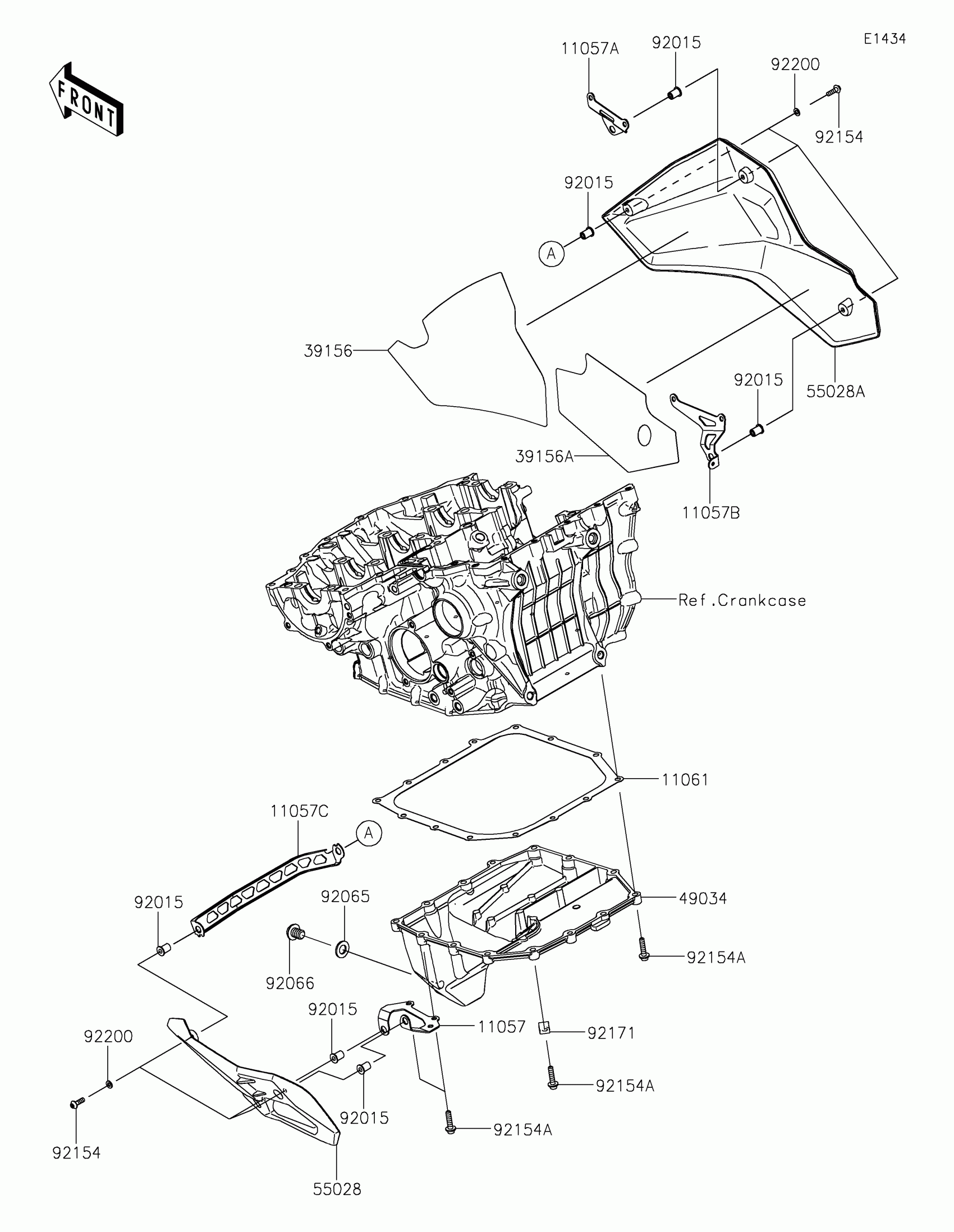

Find the part on the OIL PAN diagram for your 2025 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z H2 SE OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LWR COWLING,LH

11057-2962

1
Out of stock

11057A

BRACKET,LWR COWLING,RH,FR

11057-2963

1
Out of stock

11057B

BRACKET,LWR COWLING,RH,RR

11057-2964

1
Out of stock

11057C

BRACKET,LWR COWLING,CNT

11057-2965

1
Out of stock

11061

GASKET,OIL PAN

11061-0943

1
Out of stock

39156

PAD,LWR COWLING,RH,FR

39156-2523

1
Out of stock

39156A

PAD,LWR COWLING,RH,RR

39156-2524

1
Out of stock

49034

PAN-OIL

49034-0570

1
Out of stock

55028

COWLING,LWR,LH,G.B.GREEN

55028-0807-40R

1
Out of stock

55028A

COWLING,LWR,RH,G.B.GREEN

55028-0808-40R

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,DRAIN

92066-0799

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-1461

1
Out of stock

92171

CLAMP

92171-0534

1

$5.56

In stock

92200

WASHER,5.2X10X1.0

92200-1820

1
Out of stock
