2021 Kawasaki Z H2 Se Crankcase Diagram

← All diagrams

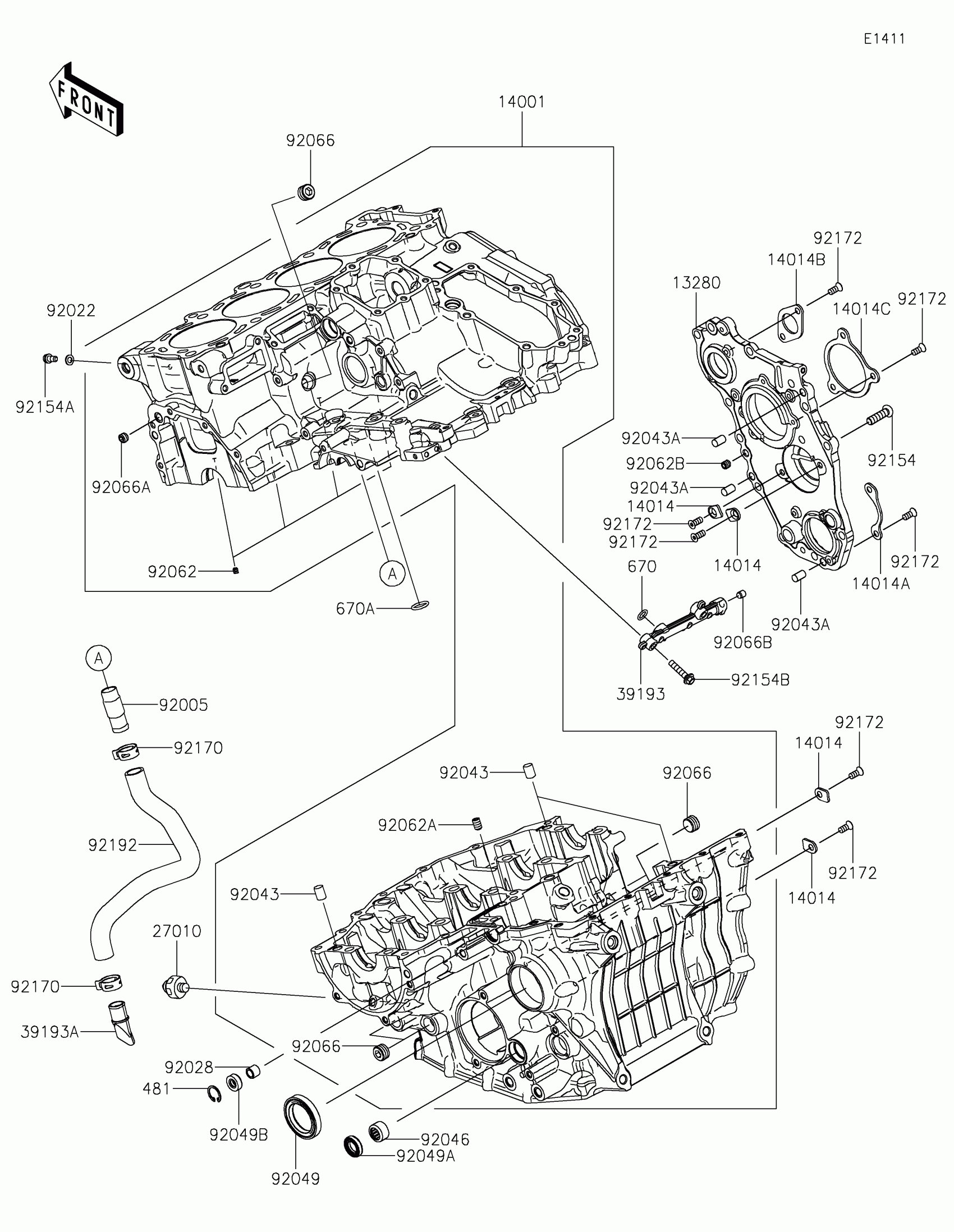

Find the part on the Crankcase diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Z H2 Se Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,TRANSMISSION

13280-0799

1

$284.04

In stock

14001

SET-CRANKCASE

14001-0716

1

$2,668.32

In stock

14014

PLATE-POSITION

14014-0569

1
Out of stock

14014A

PLATE-POSITION,CHANGE DRUM

14014-0571

1
Out of stock

14014B

PLATE-POSITION,COUNTER SHAFT

14014-0572

1
Out of stock

14014C

PLATE-POSITION

14014-0575

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

39193

PIPE-OIL

39193-0581

1

$161.01

In stock

39193A

PIPE-OIL

39193-0582

1

$21.81

In stock

481

1

$3.85

In stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock

670A

O RING,15MM

670D2015

1

$1.39

In stock

92005

FITTING

92005-0773

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92028

BUSHING,8X12X10

92028-1750

1

$7.17

In stock

92043

PIN,10X14

92043-1506

1

$2.66

In stock

92043A

PIN,8X14

92043-1567

1

$1.88

In stock

92046

1

$13.53

In stock

92049

SEAL-OIL,TC 35X50X8

92049-1452

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92049B

SEAL-OIL

92049-1566

1
Out of stock

92062

NOZZLE

92062-0004

1

$4.00

In stock

92062A

NOZZLE

92062-0031

1

$15.08

In stock

92062B

NOZZLE

92062-0032

1

$14.17

In stock

92066

PLUG

92066-0831

1

$4.46

In stock

92066A

PLUG,PT1/8X7

92066-0876

1

$25.44

In stock

92066B

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92154

BOLT,TORX,8X28

92154-0415

1

$2.19

In stock

92154A

BOLT,SOCKET,6X12

92154-1453

1

$1.10

In stock

92154B

BOLT,FLANGED,6X28

92154-1845

1

$1.81

In stock

92170

CLAMP

92170-1640

1

$1.88

In stock

92172

SCREW,TORX,6X14

92172-0906

1

$1.88

In stock

92192

TUBE,BREATHER DRAIN

92192-1437

1
Out of stock
