Description

Price

11061

GASKET,BALANCER COVER

11061-0941

$3.58

11061A

GASKET,BREATHER

11061-0942

$3.58

11061B

GASKET,CLUTCH COVER

11061-0944

$26.63

11061C

GASKET,GENERATOR COVER

11061-0945

$10.56

12053

GUIDE-CHAIN

12053-0247

$66.12

13272

PLATE

13272-1852

$24.76

13272A

PLATE

13272-1854

$28.84

13272B

PLATE

13272-1901

$1.47

13272C

PLATE

13272-2476

$94.60

13280

HOLDER,CLUTCH RELEASE

13280-0903

$95.27

14026

COVER-CHAIN

14026-0142

$101.01

14031

COVER-GENERATOR

14031-0647

$180.06

14032

COVER-CLUTCH

14032-0638

$260.83

14070

BODY-BREATHER

14070-0013

$167.66

14093

COVER,BALANCER

14093-0631

$119.95

16115

CAP-OIL FILLER

16115-1009

$10.86

16165

SEPARATOR

16165-0011

$17.32

18018

PLATE-HEAT GUARD

18018-0620

$24.12

52005

GAUGE

52005-1120

$18.41

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92033

RING-SNAP

92033-1305

$1.93

92039

RIVET

92039-0068

$2.09

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,49.7X2.4

92055-0183

$1.73

92055A

RING-O,31.5X2.6

92055-049

$3.29

92066

PLUG

92066-0800

$98.52

92143

COLLAR

92143-1331

$3.01

92154

BOLT,SOCKET,6X18

92154-1455

Unavailable

92154A

BOLT,SOCKET,6X14

92154-1460

$2.05

92154B

BOLT,SOCKET,6X25

92154-1461

$1.32

92154C

BOLT,SOCKET,6X30

92154-1463

$1.47

92154D

BOLT,FLANGED,6X10

92154-2819

$1.81

92154E

BOLT,SOCKET,6X25

92154-2826

$2.59

92154F

BOLT,TORX,6X16

92154-2920

$1.81

92154G

BOLT,FLANGED,6X12

92154-2922

$1.66

92161

DAMPER

92161-1716

$9.59

92161A

DAMPER

92161-1718

$12.95

92161B

DAMPER

92161-2079

$57.21

92171

CLAMP

92171-0533

$2.71

92171A

CLAMP

92171-0938

$3.51

481

CIRCLIP-TYPE-C

481J1400

$1.27

92172

SCREW,TORX,6X14

92172-0901

$1.44

92173

CLAMP

92173-1702

$4.93

92173A

CLAMP

92173-2262

$8.31

92173B

CLAMP

92173-2294

$4.68

92192

TUBE,BREATHER IN-SIDE

92192-1432

$13.54

92192A

TUBE,BREATHER OUT-SIDE

92192-1440

$20.39

92200

WASHER,6.8X11.5X1.0

92200-1461

$1.89

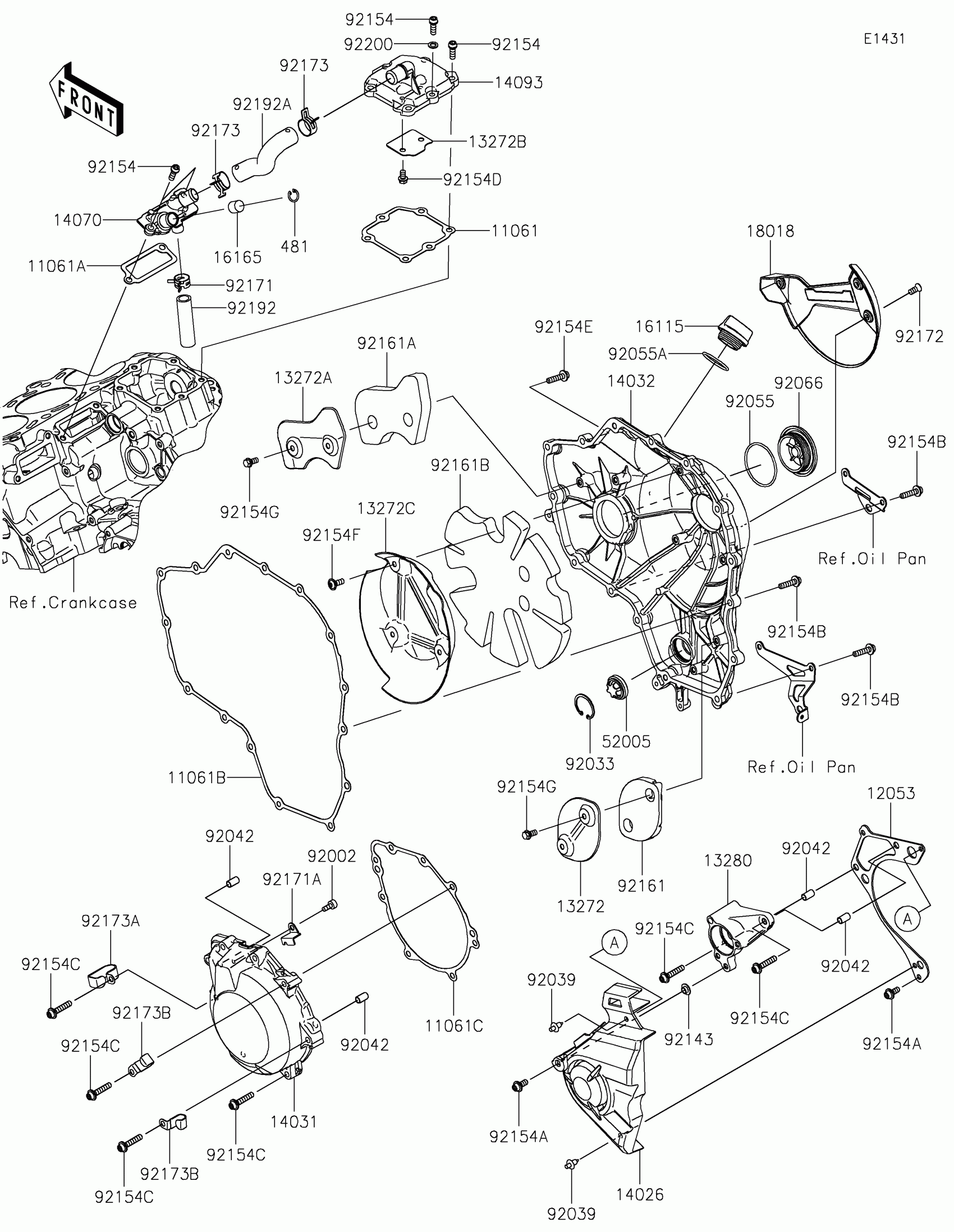

Kawasaki Z H2 SE Engine Cover(s) Diagram

GASKET,BALANCER COVER

GASKET,BREATHER

GASKET,CLUTCH COVER

GASKET,GENERATOR COVER

GUIDE-CHAIN

PLATE

PLATE

PLATE

PLATE

HOLDER,CLUTCH RELEASE

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

BODY-BREATHER

COVER,BALANCER

CAP-OIL FILLER

SEPARATOR

PLATE-HEAT GUARD

GAUGE

BOLT,SOCKET,6X12

RING-SNAP

RIVET

PIN,DOWEL,6.3X8X14

RING-O,49.7X2.4

RING-O,31.5X2.6

PLUG

COLLAR

BOLT,SOCKET,6X18

BOLT,SOCKET,6X14

BOLT,SOCKET,6X25

BOLT,SOCKET,6X30

BOLT,FLANGED,6X10

BOLT,SOCKET,6X25

BOLT,TORX,6X16

BOLT,FLANGED,6X12

DAMPER

DAMPER

DAMPER

CLAMP

CLAMP

CIRCLIP-TYPE-C

SCREW,TORX,6X14

CLAMP

CLAMP

CLAMP

TUBE,BREATHER IN-SIDE

TUBE,BREATHER OUT-SIDE

WASHER,6.8X11.5X1.0
