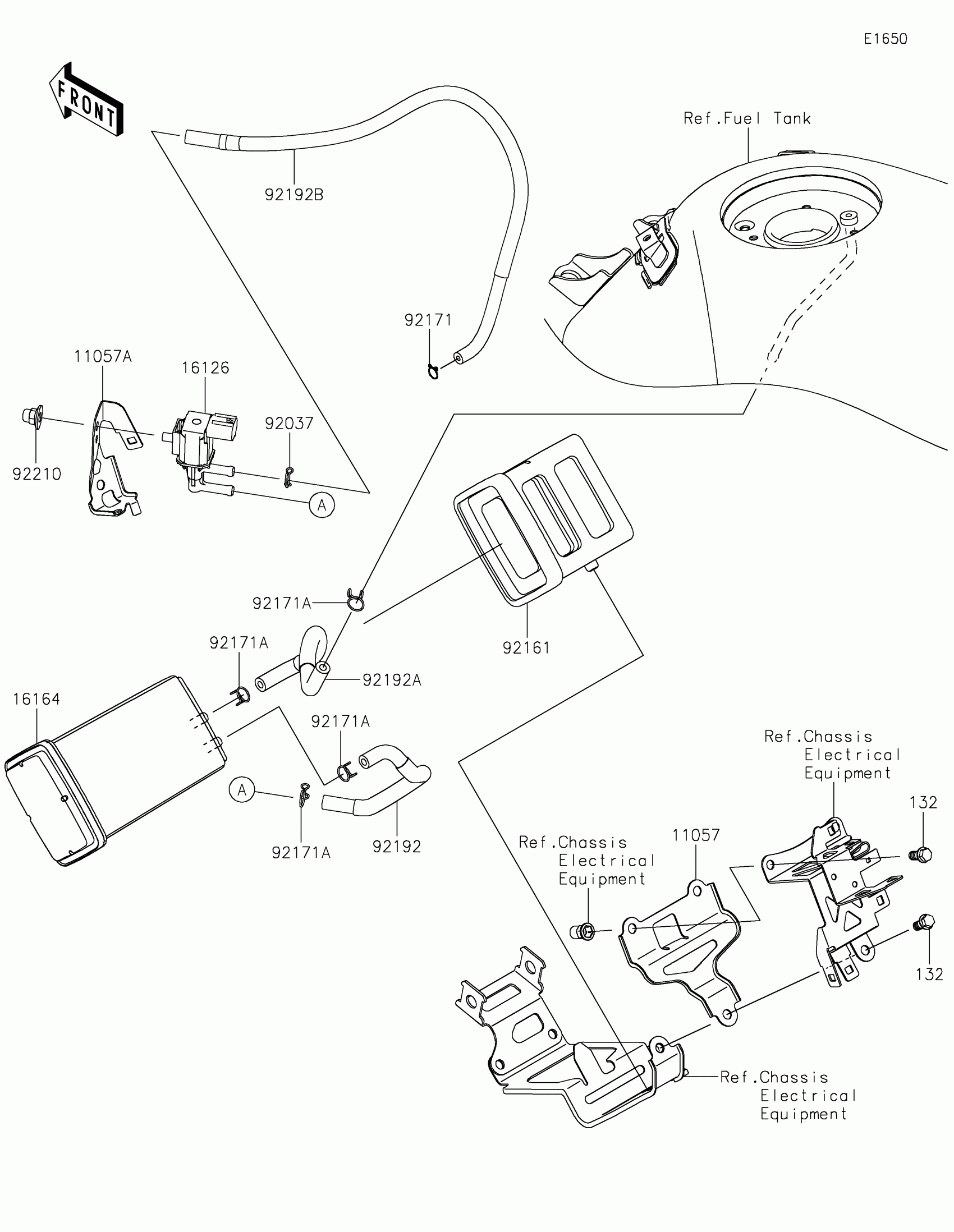

Find the part on the Fuel Evaporative System diagram for your 2024 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z H2 SE Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER,UPP

11057-2972

1
Out of stock

11057A

BRACKET,PVC VALVE

11057-2975

1
Out of stock

16126

VALVE,PCV

16126-0731

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92161

DAMPER,CANISTER

92161-1715

1

$16.78

In stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92171A

CLAMP

92171-0718

1
Out of stock

92192

TUBE,CANISTER-PVC VALVE

92192-1831

1
Out of stock

92192A

TUBE,CANISTER-FUEL TANK

92192-1832

1
Out of stock

92192B

TUBE,THROTTLE BODY-PVC VALVE

92192-2288

1
Out of stock

92210

NUT,CAP,6MM

92210-0170

1
Out of stock

132

1

$1.12

In stock
