2021 Kawasaki Z H2 Se Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

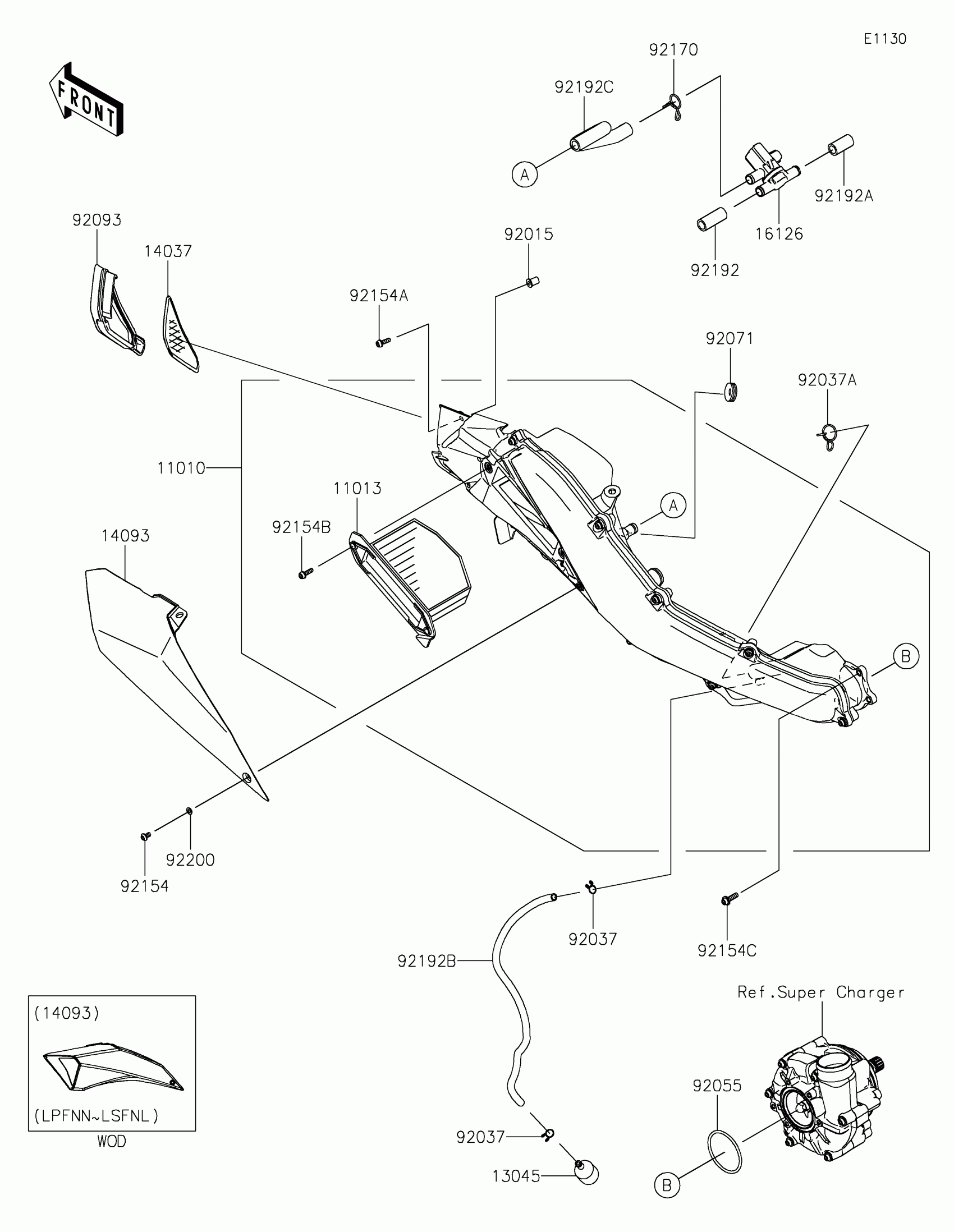

2021 Kawasaki Z H2 Se Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0994

1

$678.56

In stock

11013

ELEMENT-AIR FILTER

11013-0804

1

$54.98

In stock

13045

RECEIVER-OIL

13045-1057

1

$7.79

In stock

14037

SCREEN,G.B.GREEN

14037-0807-46Y

1

$58.94

In stock

14093

COVER,M.C.BLACK

14093-0976-43Z

1

$493.47

In stock

16126

VALVE,AIR SWITCHING

16126-0745

1

$193.92

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,TUBE

92037-213

1

$3.43

In stock

92055

RING-O,59.6X3.5

92055-0974

1

$17.20

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92093

SEAL,SCREEN

92093-0746

1

$29.23

In stock

92154

BOLT,SOCKET,5X10

92154-0211

1

$1.78

In stock

92154A

BOLT,SOCKET,5X16

92154-1449

1

$1.10

In stock

92154B

BOLT,SOCKET,5X18

92154-1450

1

$1.10

In stock

92154C

1

$2.20

In stock

92154D

BOLT,SOCKET,5X45

92154-2934

1

$5.56

In stock

92170

CLAMP

92170-1017

1

$3.72

In stock

92172

SCREW,TAPPING,5X16

92172-0482

1

$1.10

In stock

92192

1

$14.20

In stock

92192A

1

$14.20

In stock

92192B

TUBE,DRAIN

92192-2280

1

$7.59

In stock

92192C

TUBE,2ND AIR

92192-2281

1

$11.29

In stock

92200

WASHER,5.2X10X1.0

92200-1820

1
Out of stock
