2021 Kawasaki Z H2 Se Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

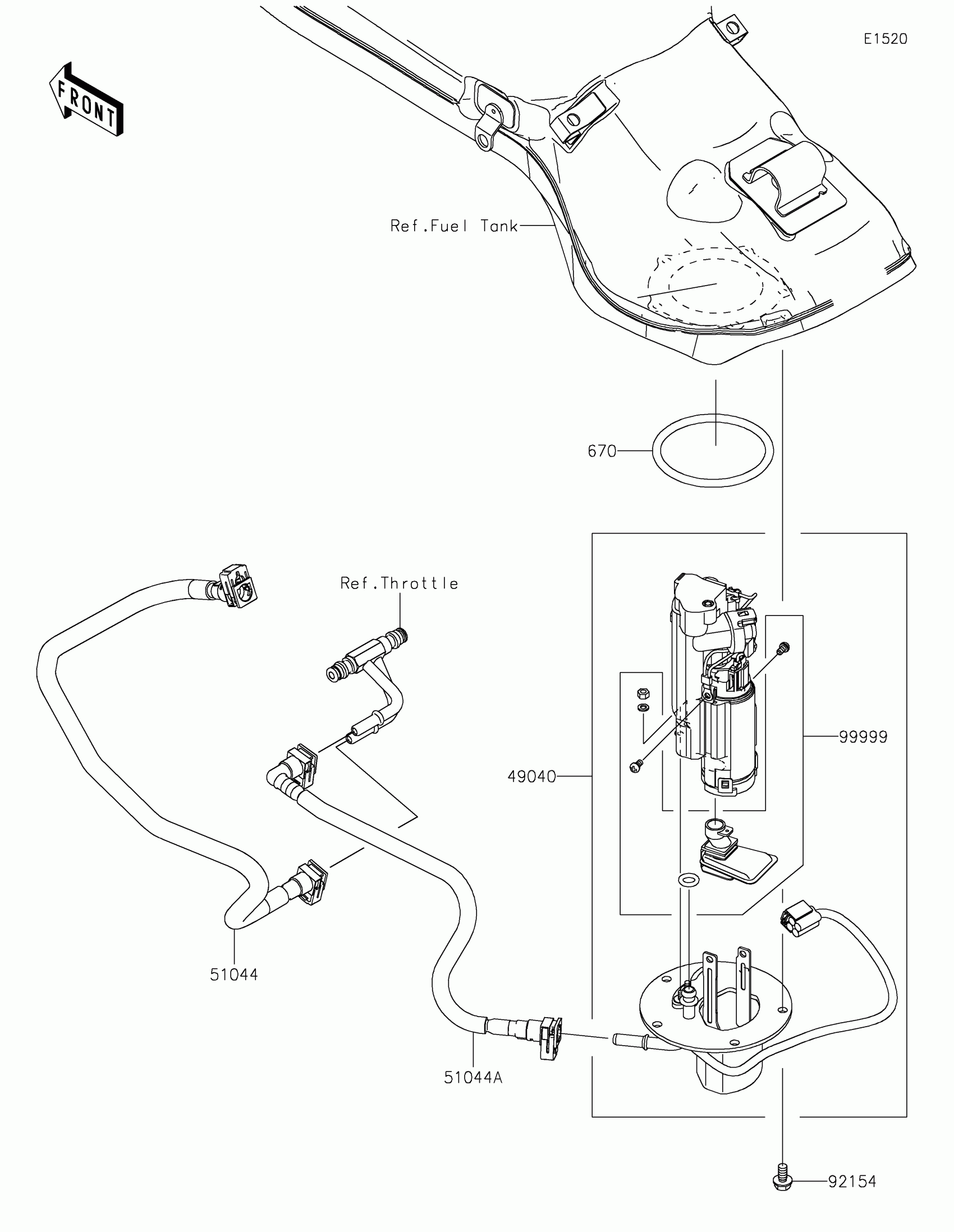

2021 Kawasaki Z H2 Se Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0789

1

$686.98

In stock

51044

TUBE-ASSY,FUEL

51044-0936

1

$120.15

In stock

51044A

TUBE-ASSY,FUEL

51044-0947

1

$107.18

In stock

670

O RING

670E5075

1

$21.46

In stock

92154

BOLT,FLANGED,6X12

92154-1848

1

$1.53

In stock

99999

KIT,FUEL FILTER

99999-0520

1

$78.47

In stock
