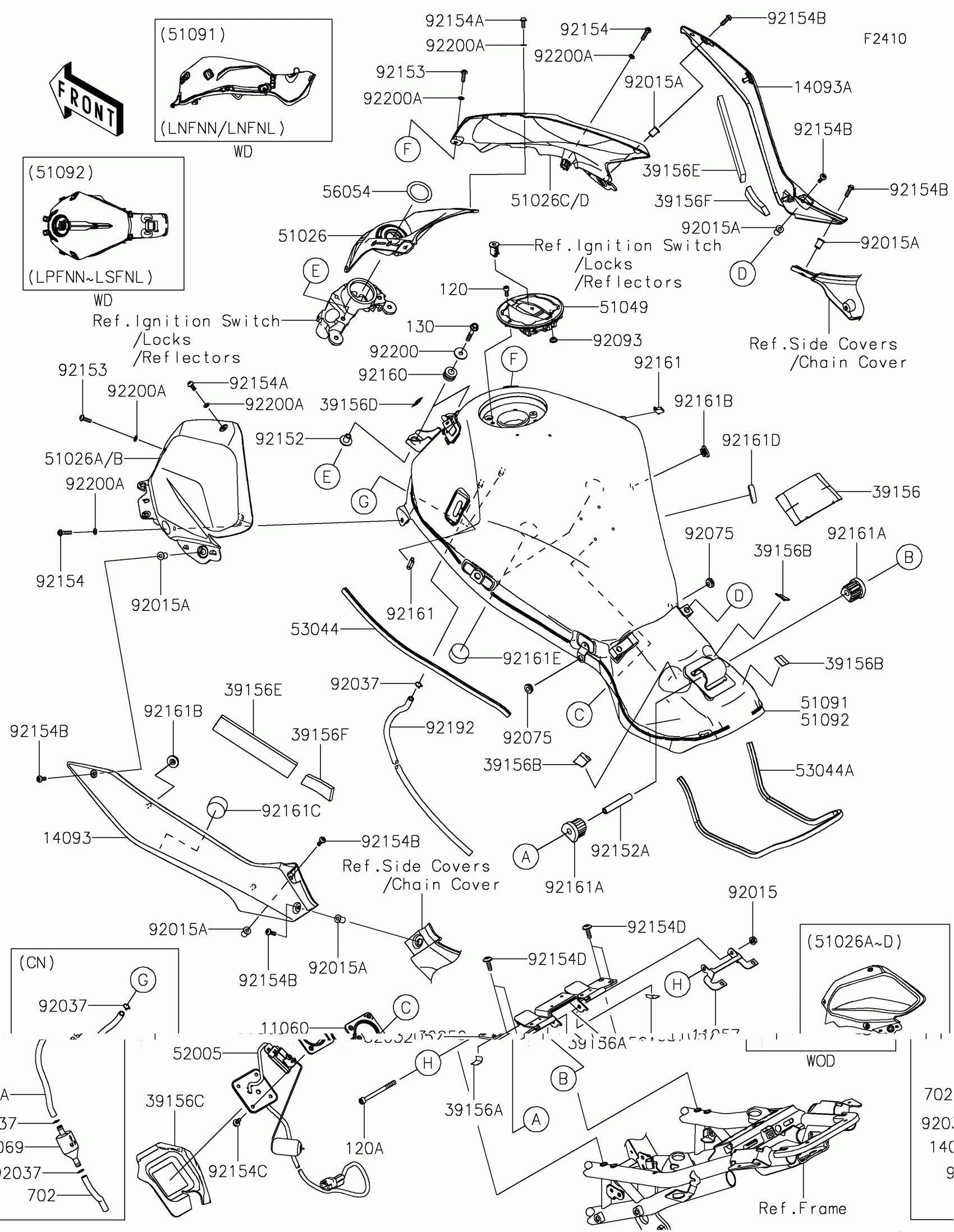

Find the part on the Fuel Tank diagram for your 2021 Kawasaki Z H2 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Z H2 SE Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,FUEL GAUGE CONNECTOR

11057-7412

1
Out of stock

11060

GASKET,FUEL GAUGE

11060-1952

1
Out of stock

14093

COVER,KNEE GRIP,LH

14093-0968

1
Out of stock

14093A

COVER,KNEE GRIP,RH

14093-0969

1
Out of stock

32052

BRACKET-TANK

32052-0823

1
Out of stock

39156

PAD,RR FRM

39156-1778

1

$4.49

In stock

39156A

PAD,15X20X0.2

39156-1784

1

$0.98

In stock

39156B

PAD,20X20X1

39156-2288

1
Out of stock

39156C

PAD,FUEL TANK

39156-2570

1
Out of stock

39156D

PAD,22X13X0.2

39156-2591

1
Out of stock

39156E

PAD,30X150X8

39156-2612

1
Out of stock

39156F

PAD

39156-2659

1
Out of stock

51026

COVER TANK,CNT

51026-0020

1
Out of stock

51026A

COVER TANK,LH,M.D.BLACK

51026-0023-17K

1
Out of stock

51026B

COVER TANK,RH,M.D.BLACK

51026-0024-17K

1
Out of stock

51049

CAP-TANK

51049-0735

1
Out of stock

51091

TANK-COMP-FUEL,M.D.BLACK+GRN

51091-5492-65L

1
Out of stock

52005

GAUGE,FUEL

52005-0772

1
Out of stock

53044

TRIM

53044-1211

1

$16.81

In stock

53044A

TRIM,L=760

53044-1240

1

$22.49

In stock

56054

MARK,IG. SWITCH

56054-2963

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92075

DAMPER,6X16X7

92075-1011

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.3X9.5X14.1

92152-1847

1
Out of stock

92152A

COLLAR,6X10X60.2

92152-1964

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0210

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154C

BOLT,FLANGED,5X12

92154-1856

1
Out of stock

92154D

BOLT,SOCKET,6X18

92154-2438

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER

92161-0365

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

120A

BOLT-SOCKET,6X75

120CA0675

1
Out of stock

130

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

92161A

DAMPER,FUEL TANK

92161-1737

1

$4.98

In stock

92161B

DAMPER,6X20X7.5

92161-1937

1

$1.66

In stock

92161C

DAMPER,30X20

92161-2328

1
Out of stock

92161D

DAMPER,30X8

92161-2329

1
Out of stock

92161E

DAMPER

92161-3790

1

$3.69

In stock

92192

TUBE,DRAIN,6X9X808

92192-1669

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92200A

WASHER,5.2X10X0.5

92200-1730

1
Out of stock
