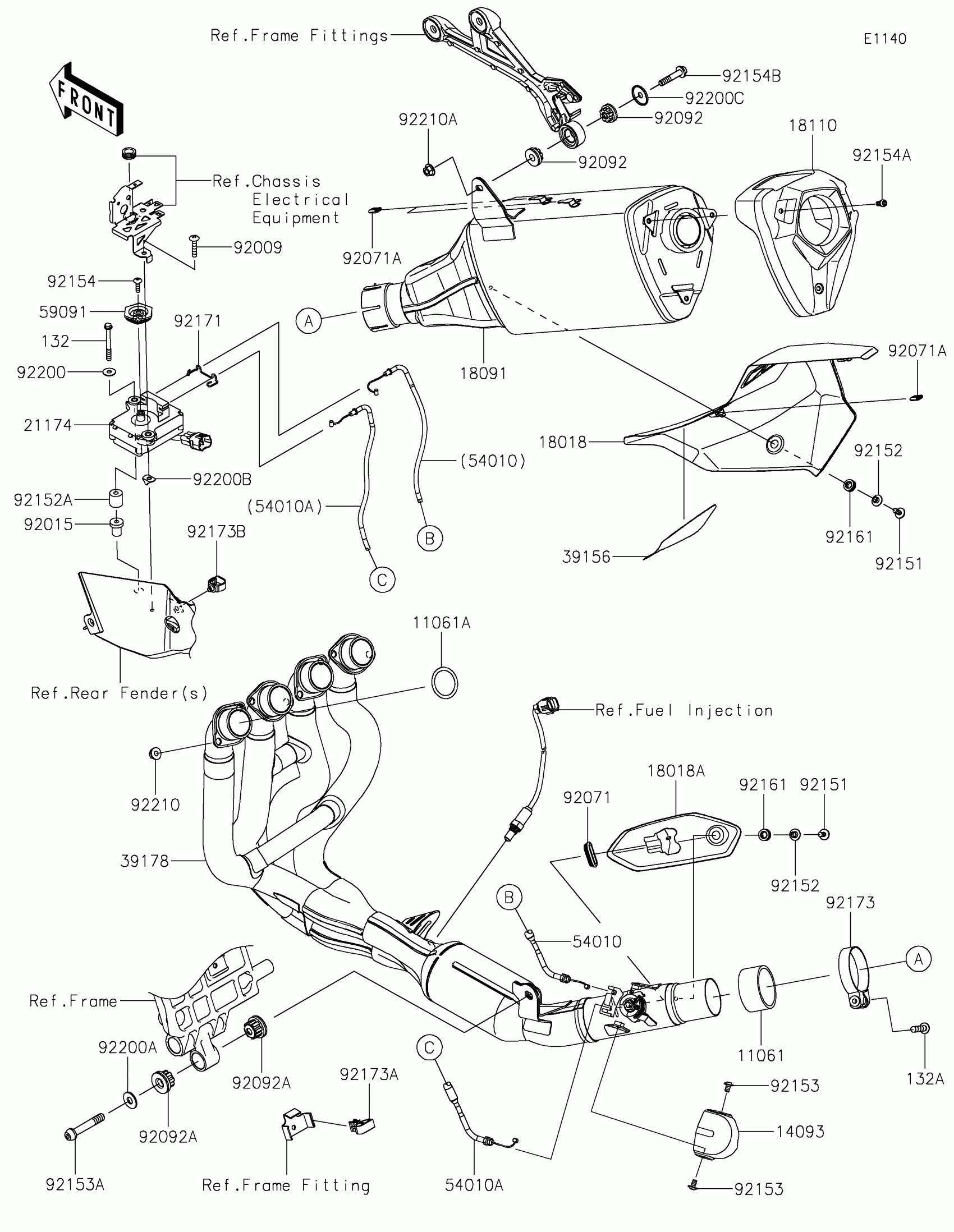

Kawasaki Z H2 SE Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE

11060-1203

$8.22

11061

GASKET,MUFFLER JOINT

11061-0980

$30.43

132

BOLT-FLANGED-SMALL,6X55

132BA0655

$1.98

132A

BOLT-FLANGED-SMALL,8X40

132BC0840

$2.82

14093

COVER

14093-0975

$25.00

18018

PLATE-HEAT GUARD,RR

18018-0618

$504.45

18018A

PLATE-HEAT GUARD,FR

18018-0621

$99.27

18091

BODY-COMP-MUFFLER

18091-1186

$1,720.76

18110

BODY END-MUFFLER

18110-0217

$164.40

21174

MOTOR-ELECTRIC

21174-0012

$344.73

39156

PAD,HEAT GUARD,RR

39156-2593

$4.93

39178

MANIFOLD-COMP-EXHAUST

39178-0400

$1,995.98

54010

CABLE,OPEN

54010-0647

$56.86

54010A

CABLE,CLOSE

54010-0648

$54.04

59091

PULLEY

59091-0007

$20.88

92009

SCREW,TAPPING,6X30

92009-1481

$3.57

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92071

GROMMET

92071-0752

$15.20

92071A

GROMMET

92071-1270

$7.14

92092

BUSHING-RUBBER

92092-0018

$8.78

92092A

BUSHING-RUBBER

92092-1081

$20.13

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR

92152-2671

$9.19

92152A

COLLAR,6.5X18X18.9

92152-2704

$10.51

92153

BOLT,SOCKET,6X10

92153-1527

$1.53

92153A

BOLT,SOCKET,10X60

92153-1837

$10.34

92154

BOLT,TORX,5X18

92154-0217

$3.27

92154A

BOLT,SOCKET,6X12

92154-1453

$1.10

92154B

BOLT,SOCKET,8X40

92154-2808

$16.68

92161

DAMPER

92161-0306

$4.27

92171

CLAMP

92171-0292

$9.76

92173

CLAMP,64.5MM

92173-0284

$33.10

92173A

CLAMP,CLIP

92173-0799

$14.14

92173B

CLAMP,HOLDER CLIP

92173-0868

$2.11

92200

WASHER

92200-0078

$1.54

92200A

WASHER,10.5X25X2.0

92200-1377

$3.19

92200B

WASHER

92200-1746

$11.03

92200C

WASHER

92200-1919

$4.08

92210

NUT,8MM

92210-0076

$4.15

92210A

NUT,8MM

92210-0121

$1.62
