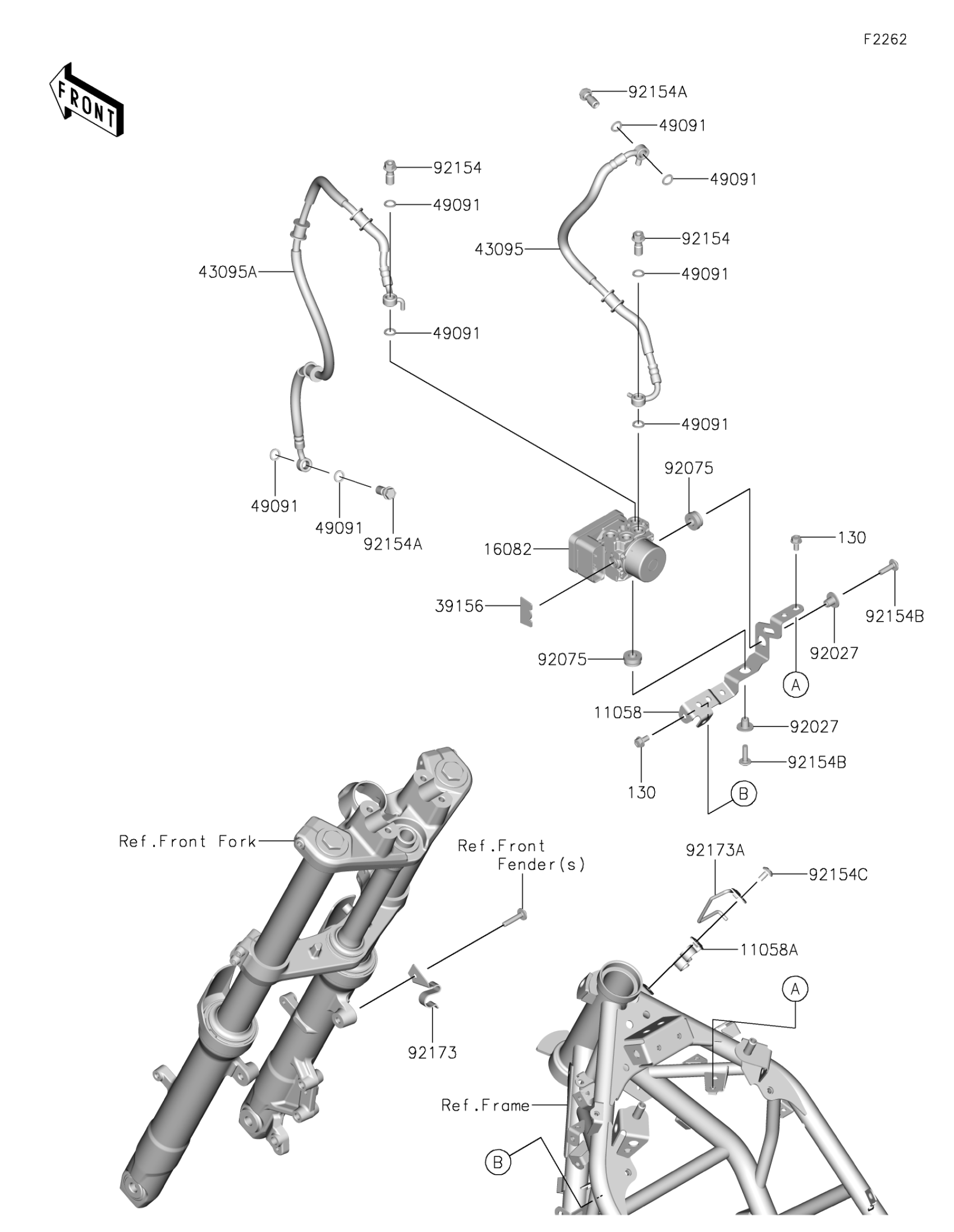

Find the part on the Brake Piping diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z e-1 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-0778

1

$15.05

In stock

11058A

BRACKET

11058-0860

1

$7.44

In stock

16082

1

$1,214.82

In stock

39156

PAD

39156-2885

1

$0.86

In stock

43095

1

$141.40

In stock

43095A

1

$138.19

In stock

49091

1

$1.81

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92154

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92154A

BOLT,BANJO,10X23

92154-1712

1

$3.56

In stock

92154B

BOLT,SOCKET,6X22

92154-2302

1

$1.10

In stock

92154C

BOLT,SOCKET,6X12

92154-4310

1

$1.36

In stock

92173

CLAMP

92173-2649

1

$4.31

In stock

92173A

CLAMP

92173-2726

1

$4.66

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
