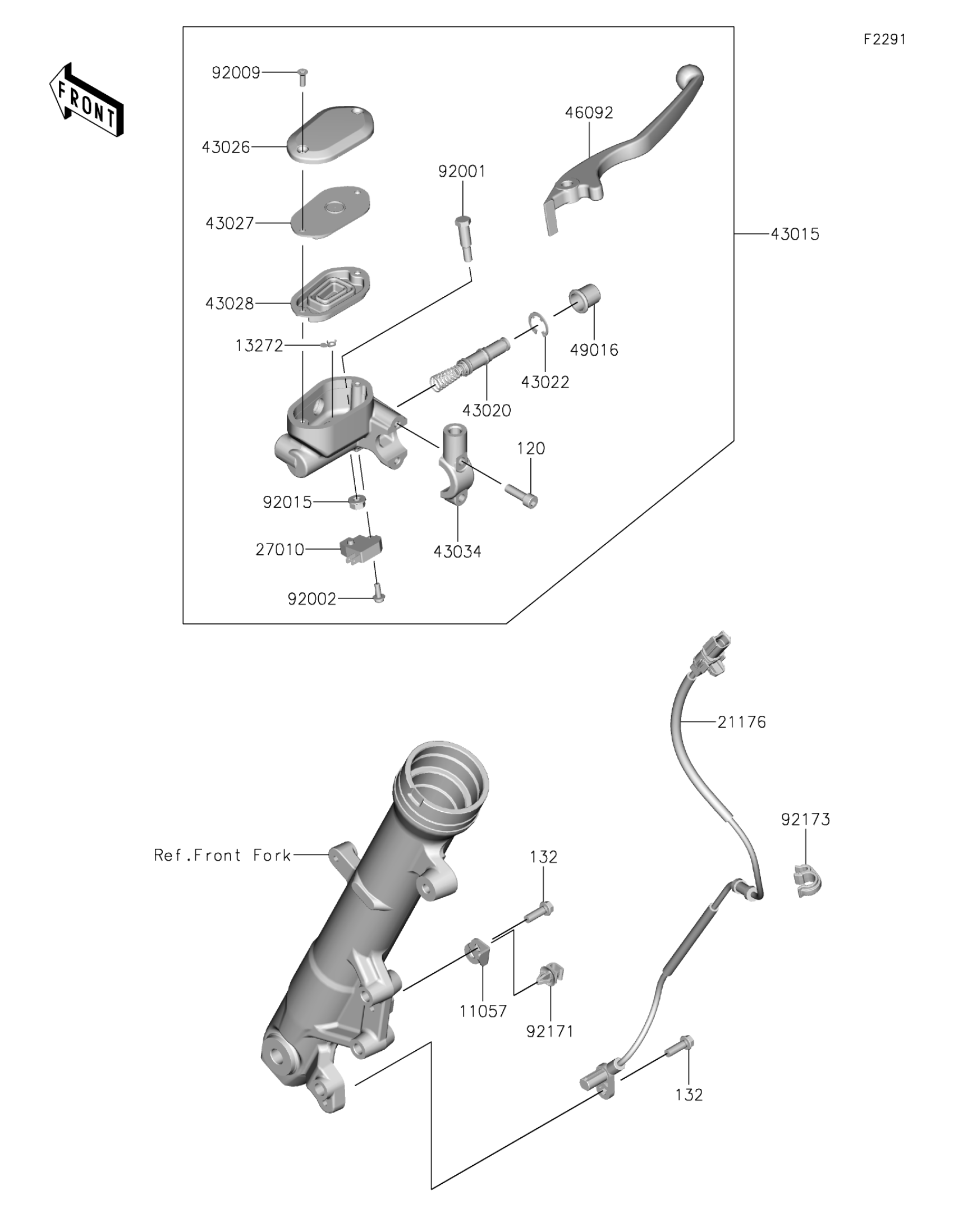

Kawasaki Z e-1 ABS Front Master Cylinder Diagram

Description

Price

11057

BRACKET,SENSOR

11057-1099

$1.27

13272

PLATE

13272-0573

$7.47

21176

SENSOR,SPEED,FR

21176-0886

$142.67

27010

SWITCH,BRAKE

27010-0762

$31.35

43015

CYLINDER-ASSY-MASTER,FR

43015-0715

$419.59

43020

PISTON-COMP-BRAKE

43020-0022

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-0026

$47.30

43027

PLATE-DIAPHRAGM

43027-0010

$8.47

43028

DIAPHRAGM

43028-0022

$37.15

43034

HOLDER-BRAKE

43034-0145

$14.67

46092

LEVER-GRIP,FRONT BRAKE

46092-0028

$12.38

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92171

CLAMP

92171-0640

$3.51

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27

120

BOLT-SOCKET,6X20

120CB0620

$0.95

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$1.57
