1982 Yamaha YZ490J (YZ490J) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

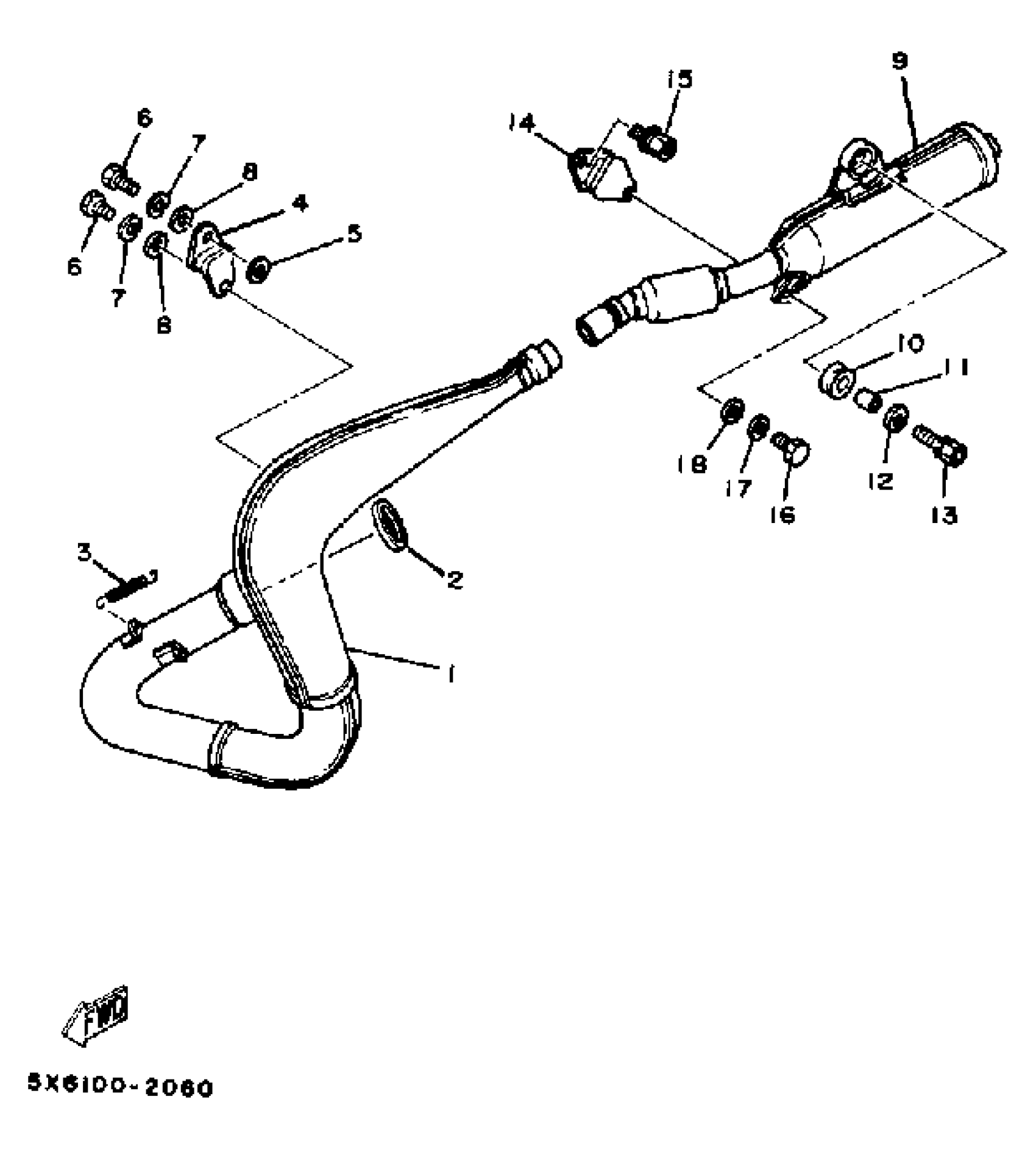

1982 Yamaha YZ490J (YZ490J) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

5X6-14610-00-00

1
Out of stock

2

GASKET, EXHAUST

3R4-14613-00-00

1
Out of stock

3

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

4

STAY, MUFFLER 2

3R4-14781-04-00

1
Out of stock

5

WASHER, PLAIN

92990-08200-00

1
Out of stock

6

BOLT(JA9)

90101-08691-00

1
Out of stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

8

.. WASHER, PLATE

92990-08600-00

1
Out of stock

9

SILENCER, EXHAUST

5X6-14753-10-00

1
Out of stock

10

DAMPER

565-14747-00-00

—
Out of stock

11

COLLAR (437)

90387-08258-00

1
Out of stock

12

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

13

BOLT, HEXAGON (2X4)

90109-08512-00

1
Out of stock

14

STAY, MUFFLER 1

565-14771-01-00

1
Out of stock

15

BOLT (3R4)

90109-06551-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock
