1982 Yamaha YZ490J (YZ490J) Crankcase Diagram

← All diagrams

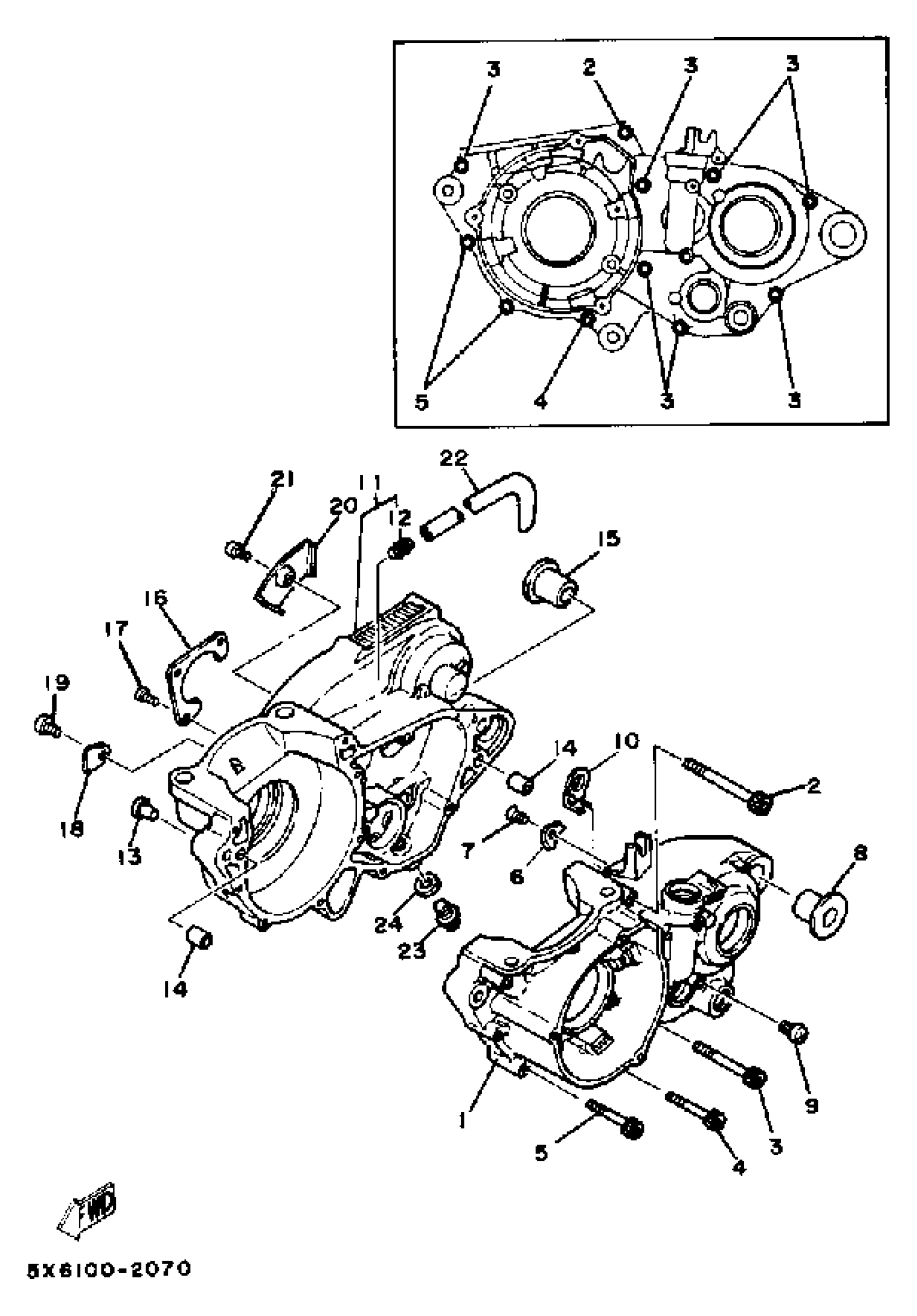

Find the part on the Crankcase diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ490J (YZ490J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

2

BOLT, SOCKET

91317-06075-00

1
Out of stock

3

BOLT,SOCKET

91317-06060-00

1
Out of stock

4

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

8

COLLAR

90387-16776-00

1
Out of stock

9

SCREW, PAN

98517-06012-00

1

$3.14

In stock

10

HOLDER

3R4-26393-00-00

1

$90.65

In stock

11

CRANKCASE SET (3R5)

99999-01366-00

1
Out of stock

12

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

13

PLUG (17J)

90338-07124-00

1

$8.55

In stock

14

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

15

COLLAR

90387-16776-00

1
Out of stock

16

PLATE, BEARING COVER

3R4-15381-00-00

—

$4.28

In stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

HOLDER

4V4-15118-00-00

—

$25.38

In stock

19

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

20

PLATE

3R4-15113-00-00

1
Out of stock

21

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

22

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

23

—

$2.82

In stock

24

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
