1982 Yamaha YZ490J (YZ490J) Cylinder Diagram

← All diagrams

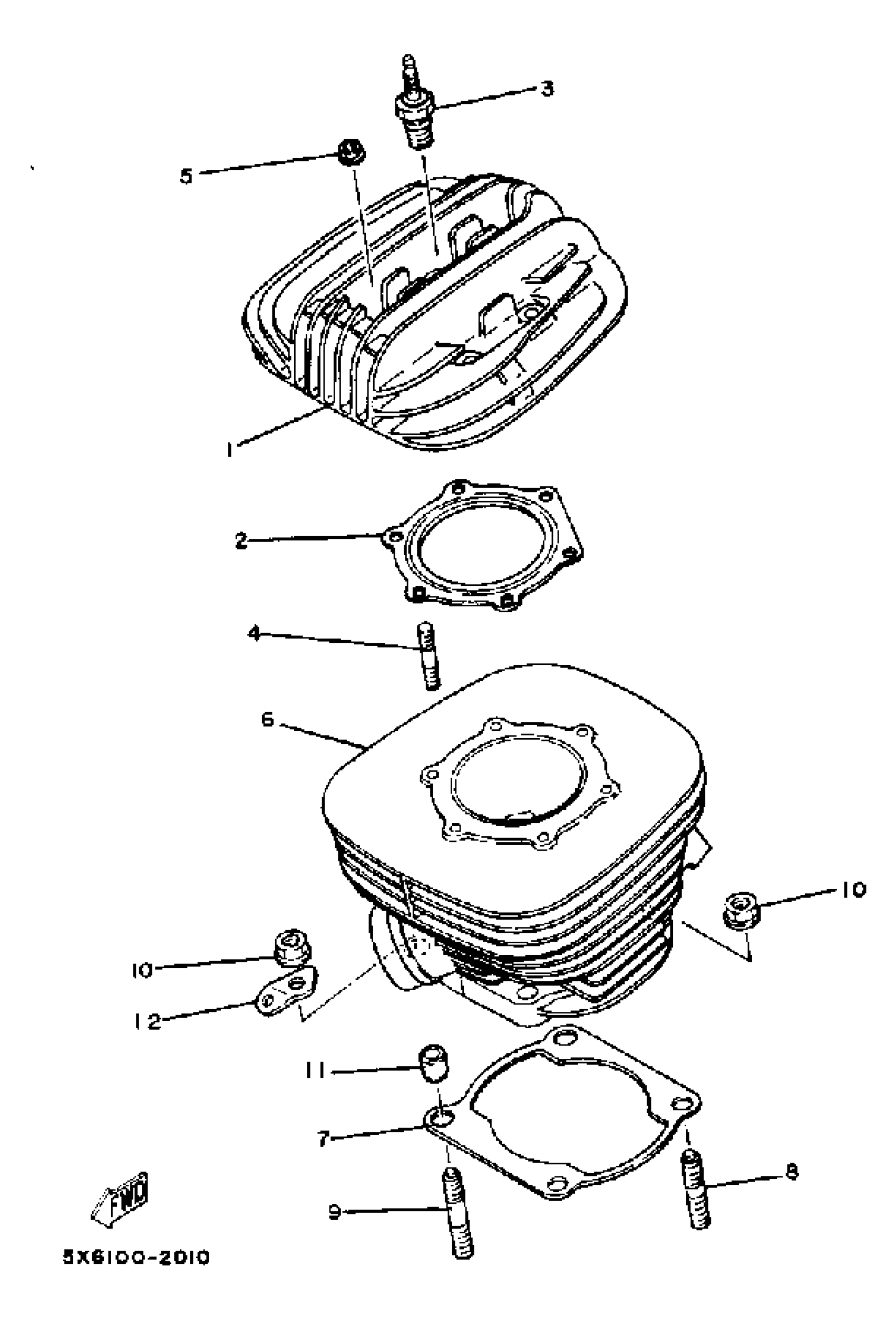

Find the part on the Cylinder diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YZ490J (YZ490J) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

5X6-11111-00-00

1
Out of stock

2

GASKET, CYLINDER HEAD 1

5X6-11181-00-00

1
Out of stock

3

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

4

BOLT, STUD(3XV)

90116-08564-00

1
Out of stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

CYLINDER 1

(5X6-11311-00-00)

1
Out of stock

7

GASKET, CYLINDER

40T-11351-01-00

1
Out of stock

8

BOLT, STUD

90116-12315-00

1
Out of stock

9

BOLT, STUD

90116-12316-00

1
Out of stock

10

NUT(3GG)

90179-12588-00

1
Out of stock

11

PIN, DOWEL(MH0)

91815-16017-00

1
Out of stock

12

HOOK, SPRING

3R5-14619-00-00

1
Out of stock
