1978 Yamaha YZ250E (YZ250E) Swing Arm Diagram

← All diagrams

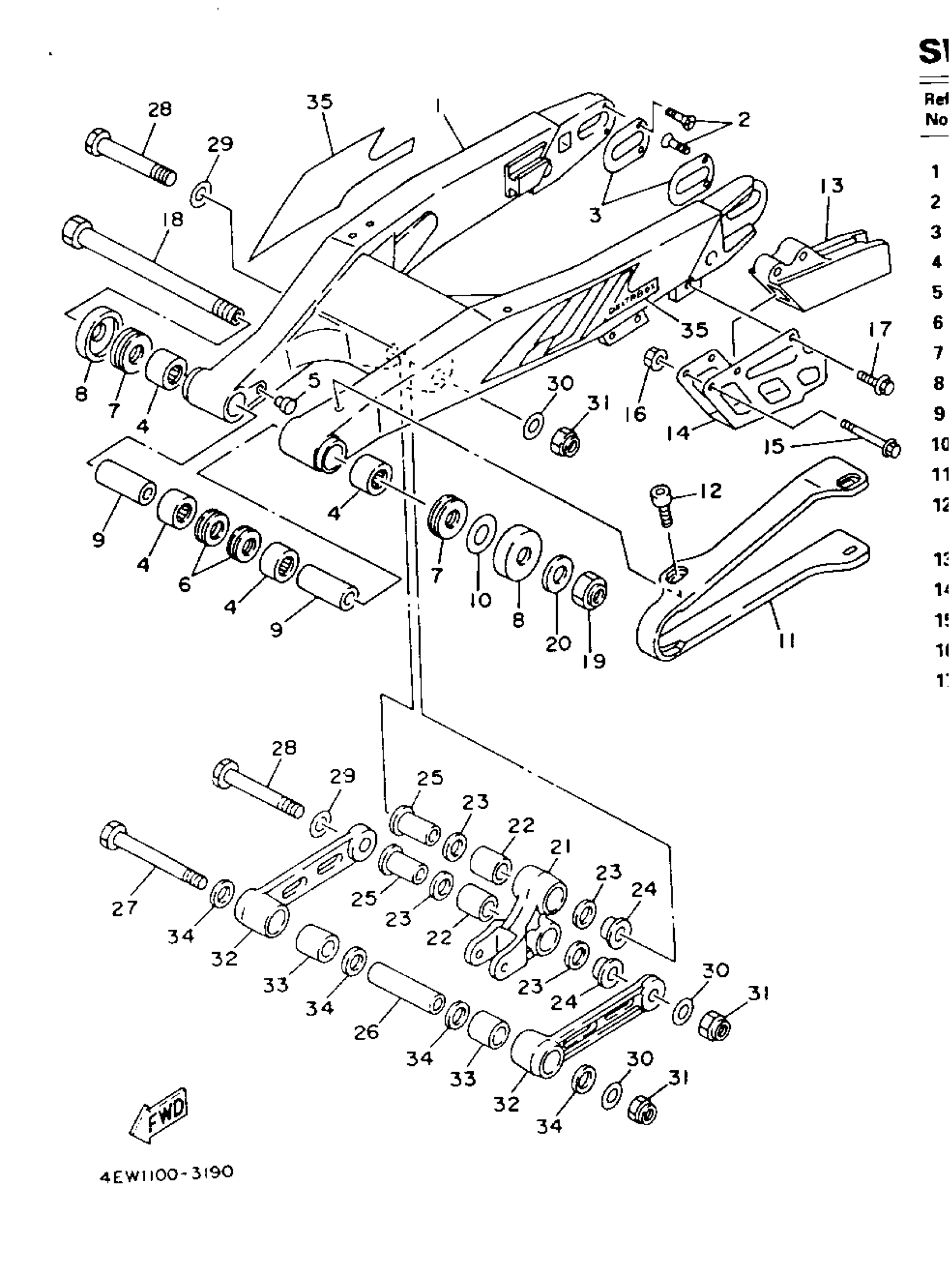

Find the part on the Swing Arm diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha YZ250E (YZ250E) Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP

99999-02365-00

1
Out of stock

2

SCREW, FLAT

98707-04010-00

1
Out of stock

3

PATCH A

3XJ-22355-00-00

1
Out of stock

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

1

$34.05

In stock

5

PLUG (31M)

90338-10150-00

1

$6.46

In stock

6

OIL SEAL (23X)

93106-22019-00

1
Out of stock

7

BEARING, THRUST(4EW)

93342-22215-00

1
Out of stock

8

COVER, THRUST 2

4EW-22129-00-00

1
Out of stock

9

BUSH, SOLID(1LV)

90380-16158-00

1

$27.42

In stock

10

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

11

SEAL, GUARD

4EW-22151-20-00

1

$83.39

In stock

12

BOLT,HEX. SOCKET BUTTON

90111-05059-00

1

$2.15

In stock

13

SUPPORT, CHAIN

4EW-22199-01-00

1
Out of stock

14

COVER,THRUST 1

4MX-22128-00-00

1
Out of stock

15

BOLT, SMALL FLANGE

95024-06045-00

1

$6.89

In stock

16

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

17

BOLT, FLANGE(2UJ)

95024-06010-00

—

$4.22

In stock

18

SHAFT, PIVOT

1LX-22141-00-00

1
Out of stock

19

NUT, SELF-LOCKING

90185-16002-00

—
Out of stock

20

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

21

ARM, RELAY

4EW-2217A-00-00

1
Out of stock

22

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

—

$78.46

In stock

23

OIL SEAL

93109-20076-00

—
Out of stock

24

COLLAR(1LV)

90387-164N2-00

—

$20.38

In stock

25

COLLAR

90387-164N3-00

1
Out of stock

26

COLLAR

90387-167Y9-00

1
Out of stock

27

BOLT

90109-147F2-00

1
Out of stock

28

BOLT

90109-142F4-00

1
Out of stock

29

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

30

WASHER PLATE (3L6)

90201-14740-00

—

$6.18

In stock

31

NUT, SELF-LOCKING (1J7)

90185-14070-00

—

$10.45

In stock

32

ROD, CONNECTING 1

4EW-2217F-00-00

1
Out of stock

33

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

—

$78.46

In stock

34

OIL SEAL

93109-20076-00

—
Out of stock

35

EMBLEM

4EW-22180-02-00

1
Out of stock
