1978 Yamaha YZ250E (YZ250E) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

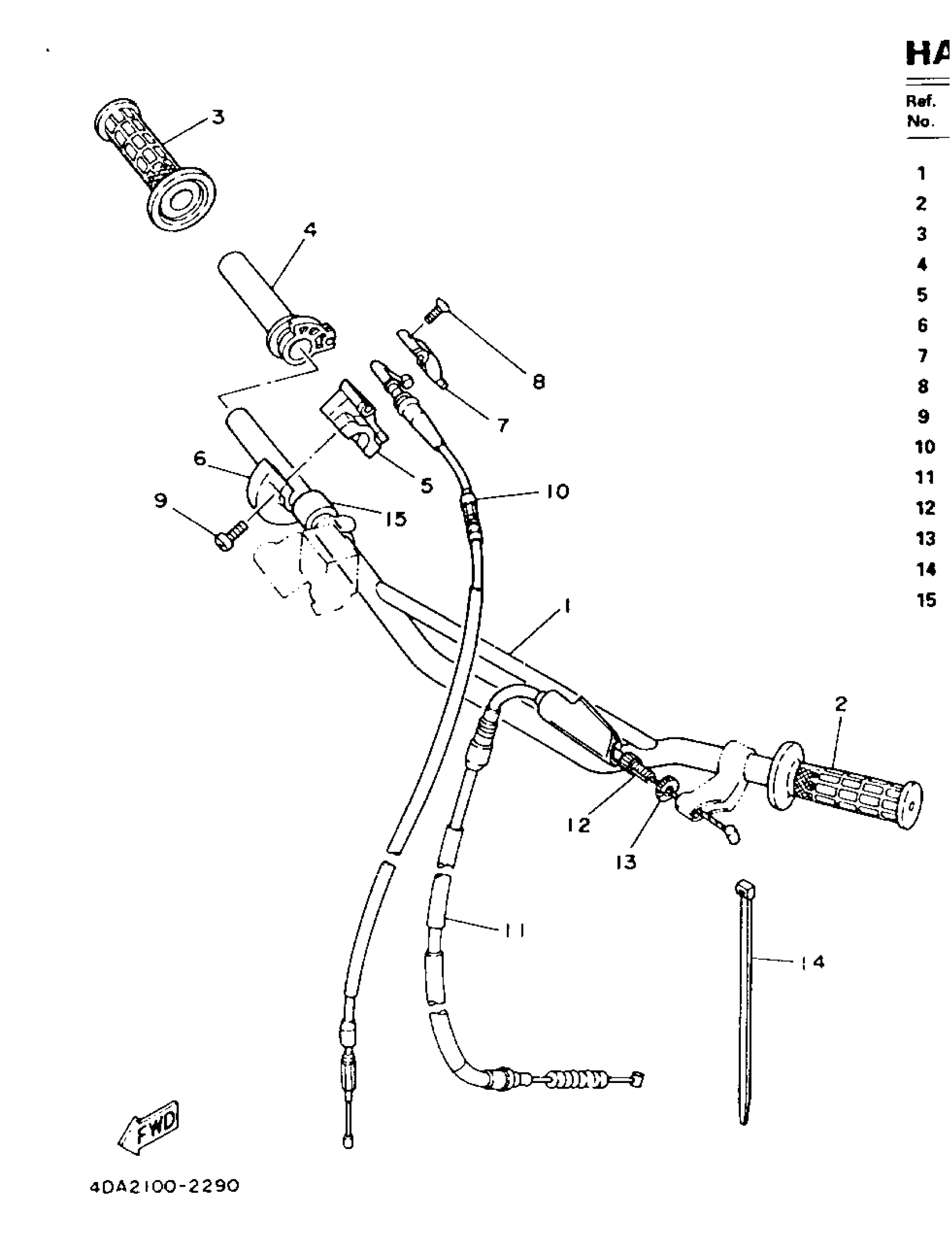

1978 Yamaha YZ250E (YZ250E) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4EW-26111-00-00

1
Out of stock

2

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

3

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

4

TUBE, THROTTLE GUIDE

23X-26243-01-00

1

$13.78

In stock

5

CAP, GRIP UPPER

23X-26281-01-00

1

$24.66

In stock

6

CAP, GRIP UNDER

431-26282-03-00

1

$34.32

In stock

7

CAP, WIRE

5X2-2628H-01-00

1

$21.62

In stock

8

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

9

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

10

CABLE, THROTTLE 1

4EW-26311-00-00

—

$46.69

In stock

11

CABLE, CLUTCH

4EW-26335-00-00

1

$50.90

In stock

12

BOLT (23X)

90123-08090-00

1

$14.46

In stock

13

NUT

90179-08401-00

1
Out of stock

14

CLAMP(MF1)

90464-15152-00

1

$4.37

In stock

15

SPACER(1LX)

90560-22281-00

1

$12.42

In stock
