1978 Yamaha YZ250E (YZ250E) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

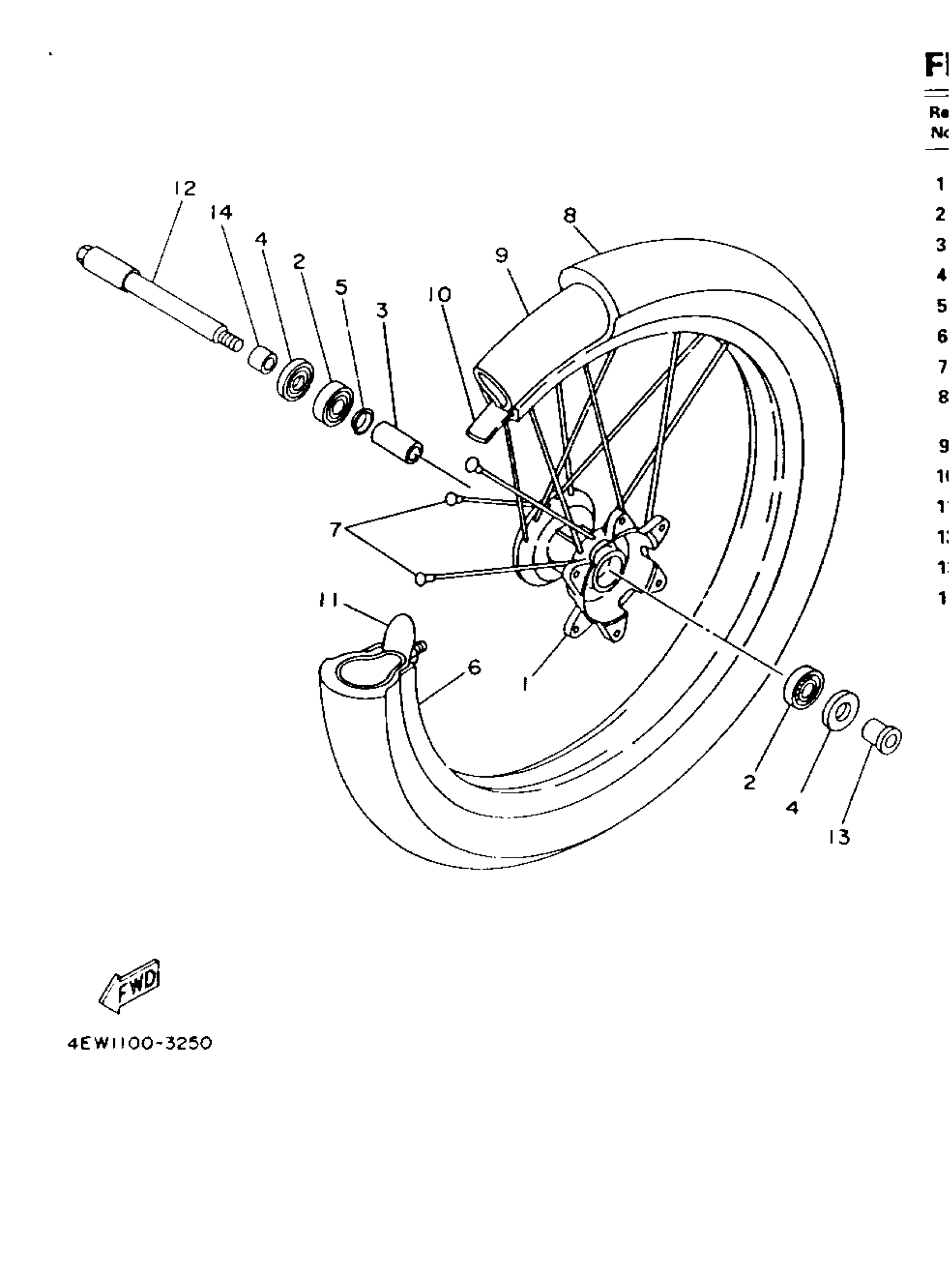

1978 Yamaha YZ250E (YZ250E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

4GV-25111-00-00

1
Out of stock

2

BEARING(85G)

93306-00316-00

1

$33.19

In stock

3

SPACER

90560-17379-00

1
Out of stock

4

OIL SEAL(4DA)

93106-22032-00

1

$9.78

In stock

5

FLANGE, SPACER

146-25116-00-00

1
Out of stock

6

RIM (1.60-21)

94416-21509-00

1
Out of stock

7

SPOKE SET, FRONT

4DA-25104-00-00

1
Out of stock

8

TIRE

94108-21012-00

1

$206.83

In stock

9

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

10

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

11

SPACER, BEAD

5X2-25394-00-00

1

$42.62

In stock

12

AXLE,WHEEL

4JW-25181-00-00

1
Out of stock

13

COLLAR

90387-173Y0-00

1
Out of stock

14

COLLAR

90387-172Y9-00

1
Out of stock
