1978 Yamaha YZ250E (YZ250E) Front Fork Diagram

← All diagrams

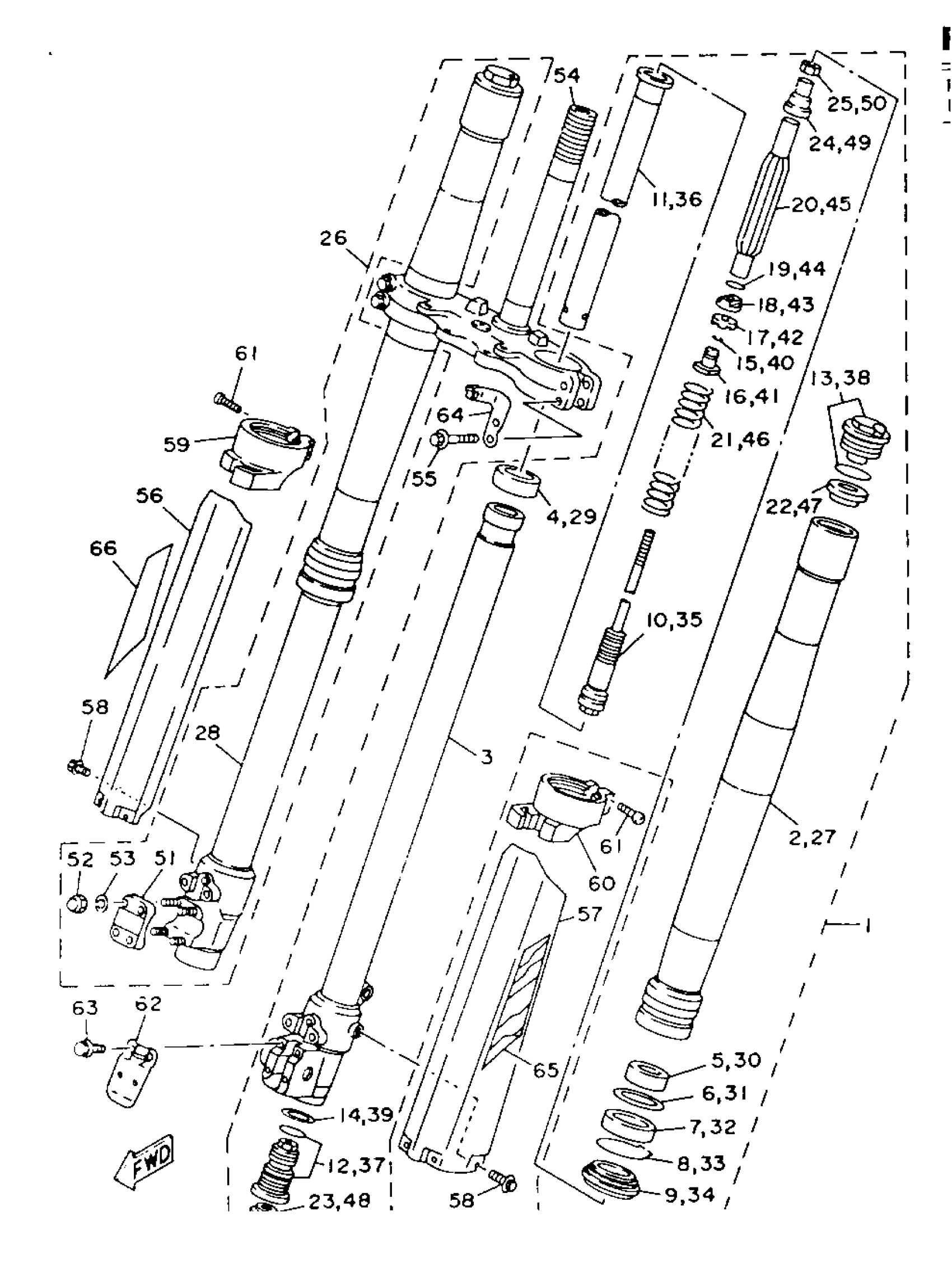

Find the part on the Front Fork diagram for your 1978 Yamaha YZ250E (YZ250E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha YZ250E (YZ250E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

4EW-23102-L0-00

1
Out of stock

2

TUBE, OUTER 2

4DA-23136-L0-00

1
Out of stock

3

. INNER TUBE COMP2

4EW-23120-L0-00

1
Out of stock

4

PISTON, FRONT FORK

5EB-23171-00-00

1
Out of stock

5

. METAL, SLIDE 1

4EW-23125-L0-00

1
Out of stock

6

WASHER

4V4-23146-L0-00

1

$5.93

In stock

7

OIL SEAL

3XJ-23145-L0-00

1
Out of stock

8

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

9

SEAL, DUST

4PU-23144-00-00

1

$20.15

In stock

10

. PISTON ROD ASSEMBLY

4EW-2314A-L0-00

1
Out of stock

11

. CYLINDER COMP, FRONT FORK

4EW-23170-L0-00

1
Out of stock

12

. VALVE COMP

4EW-2316A-L0-00

1
Out of stock

13

. BOLT, CAP

4EW-23111-L0-00

1
Out of stock

14

. GASKET

3JD-23158-L0-00

1
Out of stock

15

. RING, SNAP

3SP-23153-L0-00

1
Out of stock

16

. COLLAR

3SP-23113-L0-00

1
Out of stock

17

. SPACER, OIL LOCK

3SP-23166-L0-00

1
Out of stock

18

. NUT, SPECIAL

3SP-23393-L0-00

1
Out of stock

19

. O-RING

3JD-23147-L0-00

1
Out of stock

20

. SEAT, SPRING UPPER

4EW-23142-L0-00

1
Out of stock

21

. SPRING, FRONT FORK (K=040)

4EW-23141-L0-00

1
Out of stock

22

. SEAT, SPRING LOWER

3XJ-23143-L0-00

1
Out of stock

23

PLUG

3JD-2312G-L0-00

—
Out of stock

24

. COLLAR 1

4EW-23363-L0-00

1
Out of stock

25

NUT

3SP-23357-L0-00

—
Out of stock

26

FRONT FORK ASSEMBLY (R.H)

4EW-23103-L0-00

1
Out of stock

27

TUBE, OUTER 2

4DA-23136-L0-00

1
Out of stock

28

. INNER TUBE COMP1

4EW-23110-L0-00

1
Out of stock

29

PISTON, FRONT FORK

5EB-23171-00-00

1
Out of stock

30

. METAL, SLIDE 1

4EW-23125-L0-00

1
Out of stock

31

WASHER

4V4-23146-L0-00

1

$5.93

In stock

32

OIL SEAL

3XJ-23145-L0-00

1
Out of stock

33

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

34

SEAL, DUST

4PU-23144-00-00

1

$20.15

In stock

35

. PISTON ROD ASSEMBLY

4EW-2314A-L0-00

1
Out of stock

36

. CYLINDER COMP, FRONT FORK

4EW-23170-L0-00

1
Out of stock

37

. VALVE COMP

4EW-2316A-L0-00

1
Out of stock

38

. BOLT, CAP

4EW-23111-L0-00

1
Out of stock

39

. GASKET

3JD-23158-L0-00

1
Out of stock

40

. RING, SNAP

3SP-23153-L0-00

1
Out of stock

41

. COLLAR

3SP-23113-L0-00

1
Out of stock

42

. SPACER, OIL LOCK

3SP-23166-L0-00

1
Out of stock

43

. NUT, SPECIAL

3SP-23393-L0-00

1
Out of stock

44

. O-RING

3JD-23147-L0-00

1
Out of stock

45

. SEAT, SPRING UPPER

4EW-23142-L0-00

1
Out of stock

46

. SPRING, FRONT FORK (K=040)

4EW-23141-L0-00

1
Out of stock

47

. SEAT, SPRING LOWER

3XJ-23143-L0-00

1
Out of stock

48

PLUG

3JD-2312G-L0-00

—
Out of stock

49

. COLLAR 1

4EW-23363-L0-00

1
Out of stock

50

NUT

3SP-23357-L0-00

—
Out of stock

51

. HOLDER, AXLE

4EW-23167-L0-00

1
Out of stock

52

NUT

5Y3-23393-00-00

—

$8.17

In stock

53

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

54

UNDER BRACKET COMP

4DA-23340-L0-00

1
Out of stock

55

BOLT, FLANGE(4KG)

95024-08040-00

—

$6.17

In stock

56

PROTECTER COMP., 2

4MX-2314J-L0-00

1
Out of stock

57

PROTECTER COMP., 1

4MX-2314H-L1-00

1
Out of stock

58

BOLT 2

3SP-23356-L0-00

—

$5.19

In stock

59

PROTECTER GUIDE COMP., 2

4MX-2314G-L0-00

—

$28.40

In stock

60

PROTECTER GUIDE COMP., 1

4MX-2314F-L0-00

—

$47.98

In stock

61

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

62

COVER, HOSE

4EW-2314E-L0-00

1
Out of stock

63

BOLT, FLANGE(3BM)

95024-06008-00

—
Out of stock

64

GUIDE, CABLE

4EW-2331E-L1-00

—

$25.85

In stock

65

EMBLEM 1

4EW-2313B-01-00

1
Out of stock

66

EMBLEM 2

4EW-2313C-01-00

1
Out of stock
