2018 Yamaha Wolverine (YXE70WDBJD) Water Pump Diagram

← All diagrams

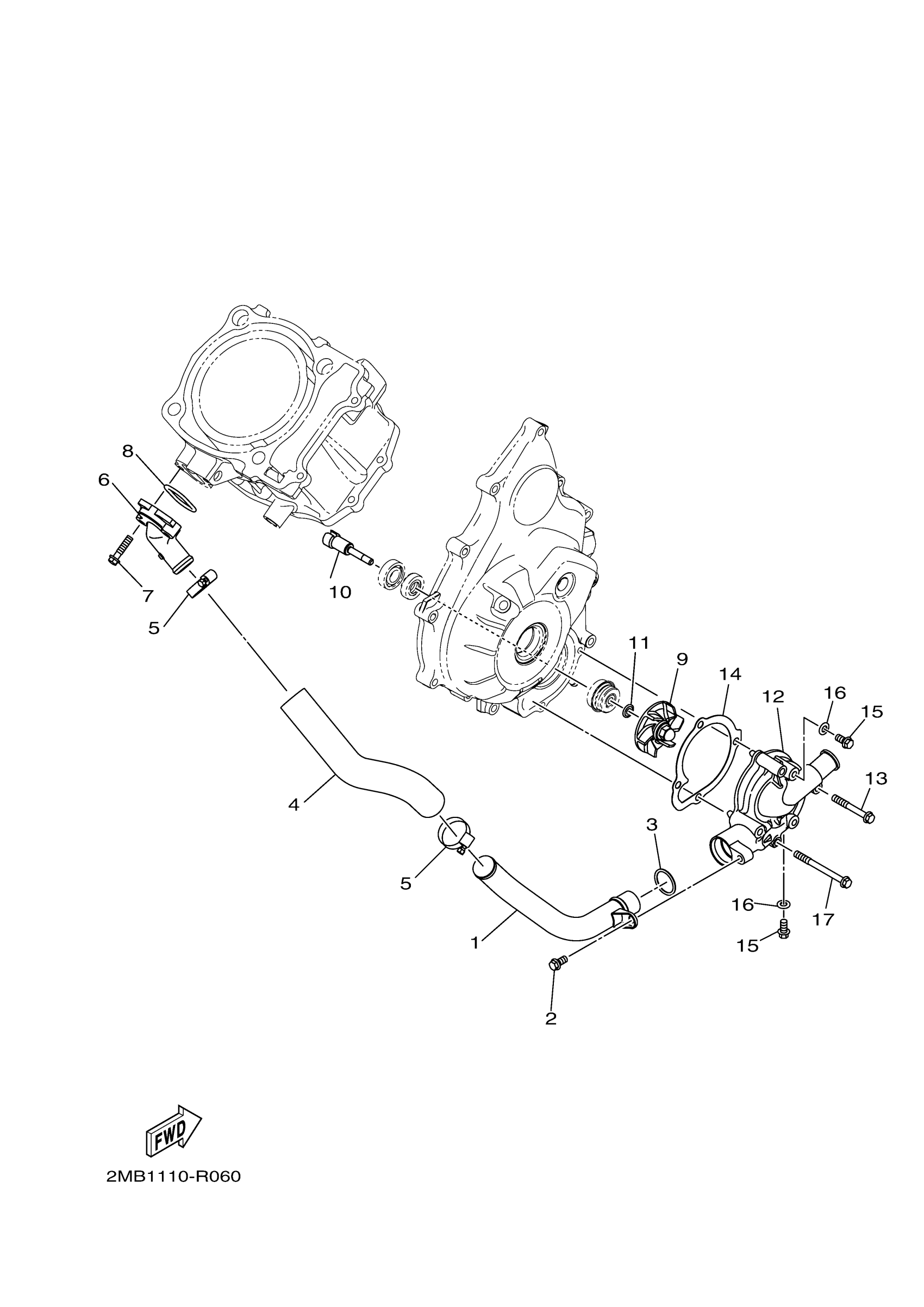

Find the part on the Water Pump diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 1

2MB-E2481-00-00

1

$46.91

In stock

2

BOLT 1

2MB-E5481-60-00

1

$0.94

In stock

3

O-RING

2MB-E2439-00-00

1

$4.35

In stock

4

HOSE,3

2MB-E243F-00-00

—

$35.34

In stock

5

CLAMP, HOSE 1

2MB-E1387-00-00

1

$10.37

In stock

6

JOINT 1

2MB-E2469-00-00

1

$28.38

In stock

7

BOLT 1

2MB-E5481-20-00

—

$0.95

In stock

8

O-RING

2MB-E2843-00-00

1

$3.84

In stock

9

IMPELLER, WATER PU

2MB-E2451-00-00

1

$32.50

In stock

10

SHAFT, IMPELLER

2MB-E2458-00-00

1

$44.34

In stock

11

SEAL, WATER PUMP

2MB-E243M-00-00

1

$5.93

In stock

12

COVER, HOUSING

2MB-E2422-00-00

—

$100.29

In stock

13

BOLT 1

2MB-E5481-B0-00

—

$1.66

In stock

14

GASKET, HOUSING CO

2MB-E2428-00-00

1

$1.23

In stock

15

BOLT 1

2MB-E5481-60-00

1

$0.94

In stock

16

GASKET

2MB-E2435-00-00

—

$2.09

In stock

17

BOLT 1

2MB-E5481-70-00

—

$2.37

In stock
