2018 Yamaha Wolverine (YXE70WDBJD) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

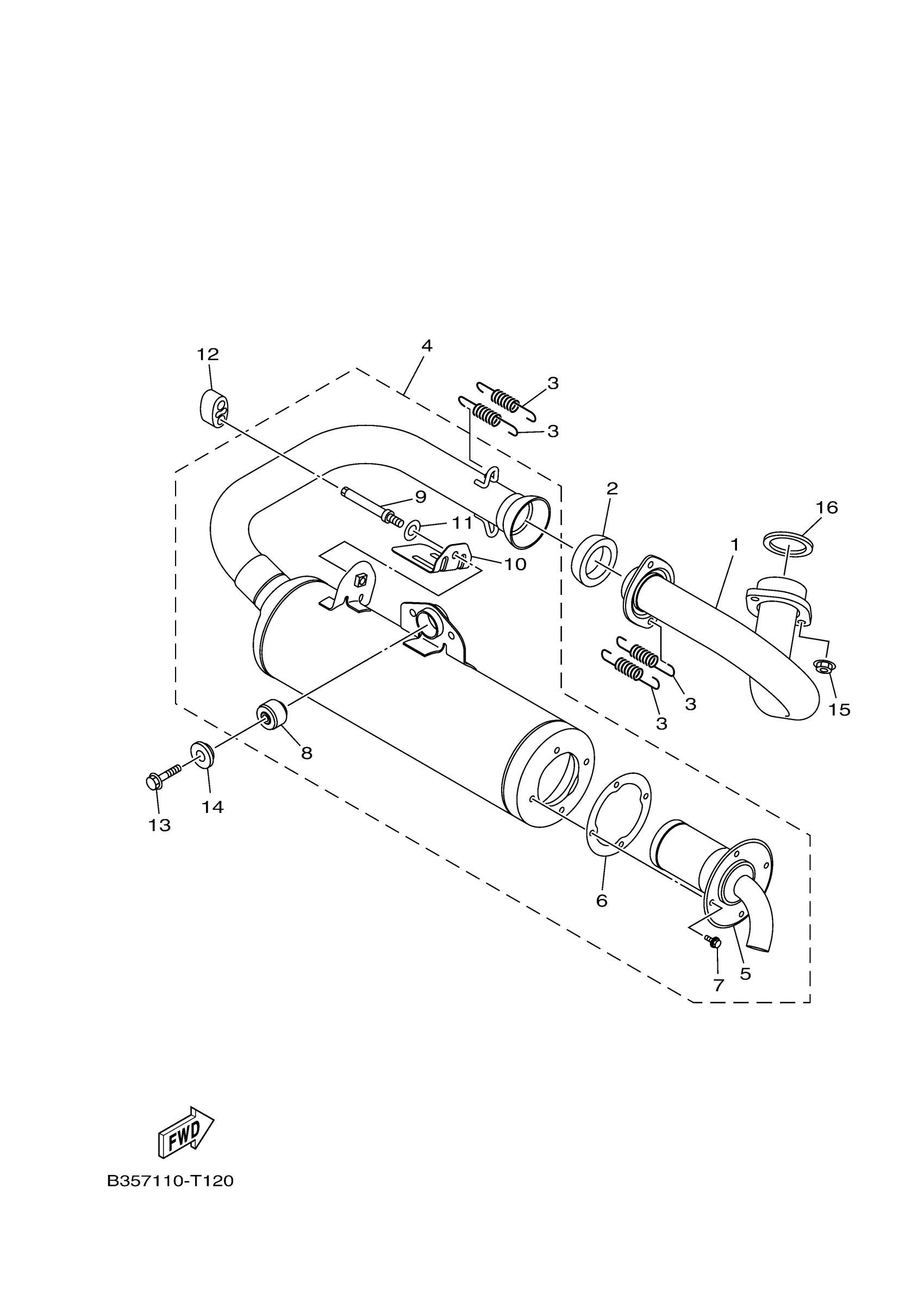

2018 Yamaha Wolverine (YXE70WDBJD) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

2MB-E4611-00-00

—
Out of stock

2

GASKET, MUFFLER

2MB-E4714-00-00

—

$50.99

In stock

3

SPRING, TENSION

90506-26012-00

1

$12.05

In stock

4

MUFFLER ASY L

2MB-E4710-01-00

—
Out of stock

5

SPARK ARRESTER ASS

2BG-E4780-00-00

1

$60.18

In stock

6

GASKET, SILENCER

2MB-E4755-00-00

—

$19.14

In stock

7

BOLT, FLANGE

95022-06012-00

1

$3.00

In stock

8

DAMPER,FOOTREST

1HP-F7414-00-00

1

$20.12

In stock

9

SHAFT

1XD-E4745-00-00

1

$23.86

In stock

10

. PLATE, MUFFLER

2MB-E4793-00-00

1

$11.22

In stock

11

. WASHER

92902-08200-00

1
Out of stock

12

DAMPER, MUFFLER

2MB-14737-00-00

1

$7.94

In stock

13

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

14

WASHER

3B4-14759-01-00

1

$15.08

In stock

15

NUT,FLANGE(J10)

95702-08500-00

1

$0.80

In stock

16

GASKET, EXHAUST PIPE

3EG-14613-00-00

—

$20.15

In stock
