2018 Yamaha Wolverine (YXE70WDBJD) Cylinder Head Diagram

← All diagrams

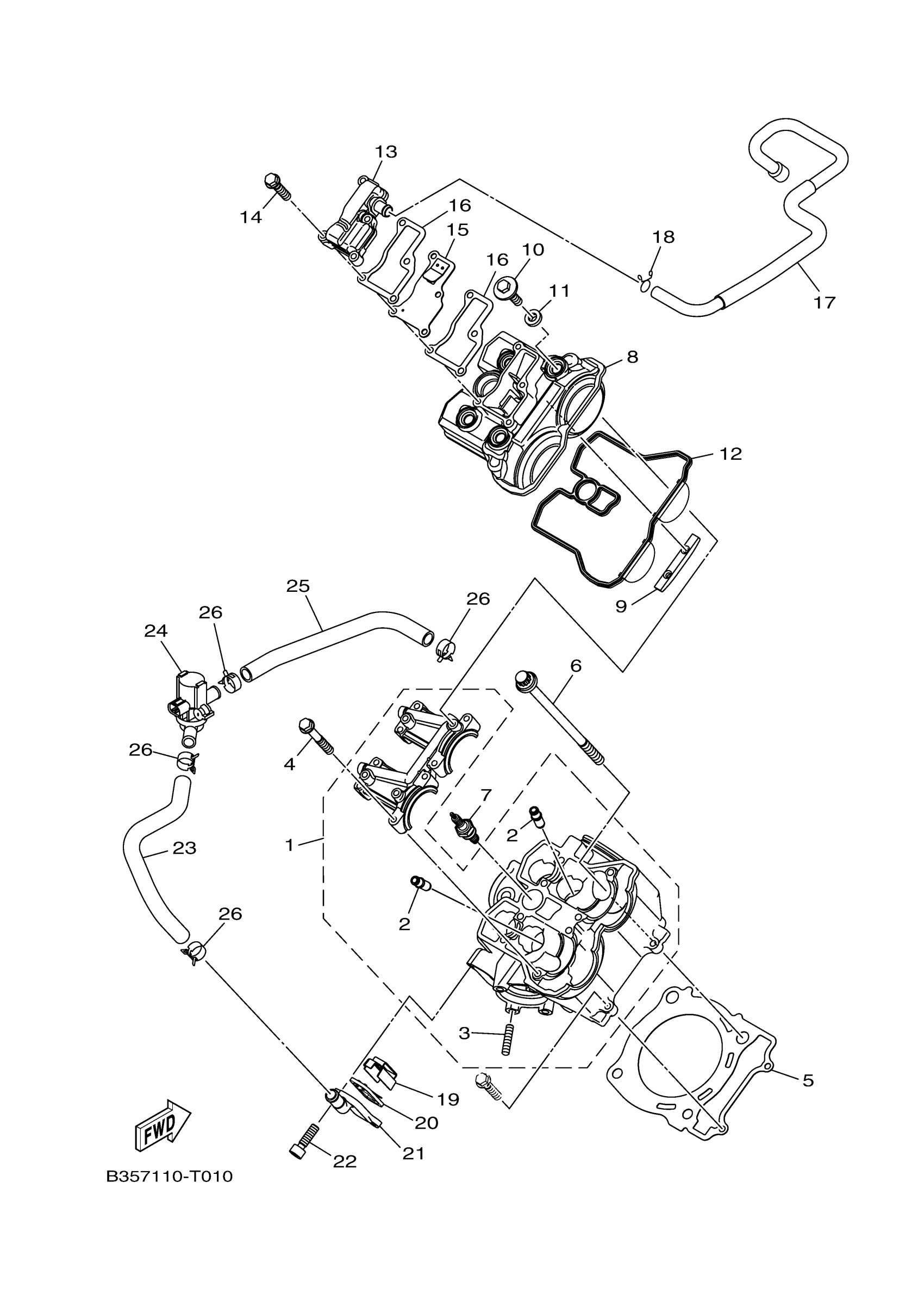

Find the part on the Cylinder Head diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

2MB-E1102-00-00

1
Out of stock

2

GUIDE, VALVE 1

2MB-E1133-10-00

1
Out of stock

3

BOLT, STUD

2MB-E1179-00-00

1
Out of stock

4

BOLT 1

2MB-E5481-80-00

1
Out of stock

5

GASKET, CYLINDER H

2MB-E1181-00-00

1
Out of stock

6

BOLT, CYLINDER HOL

2MB-E1361-00-00

1
Out of stock

7

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

1
Out of stock

8

COVER, CYLINDER HE

2MB-E1191-00-00

—
Out of stock

9

GUIDE, STOPPER 2

2MB-E2241-00-00

1
Out of stock

10

BOLT

2MB-E4446-00-00

1
Out of stock

11

RUBBER, MOUNT 1

2MB-E111G-00-00

1
Out of stock

12

GASKET, HEAD COVER

2MB-E1193-00-00

1
Out of stock

13

BREATHER ASSY

2MB-E1160-00-00

—
Out of stock

14

BOLT 1

2MB-E5481-20-00

—
Out of stock

15

REED VALVE ASSY

2MB-E3610-00-00

—
Out of stock

16

GASKET, COVER

2MB-E131B-00-00

—
Out of stock

17

PIPE, BREATHER 1

2MB-E1166-10-00

1
Out of stock

18

CLIP

90467-140A4-00

—
Out of stock

19

PLATE

2MB-E482K-00-00

—
Out of stock

20

REED VALVE ASS

5JW-14890-00-00

—
Out of stock

21

CAP, CASE

2MB-E4889-00-00

—
Out of stock

22

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

23

HOSE, BEND 1

1XD-E4881-00-00

—
Out of stock

24

AIR CUT VALVE ASSY

2MB-14840-00-00

—
Out of stock

25

HOSE, BEND 2

1XD-E4882-00-00

—
Out of stock

26

CLIP(3TB)

90467-17128-00

—
Out of stock
