2018 Yamaha Wolverine (YXE70WDBJD) OIL Pipe Diagram

← All diagrams

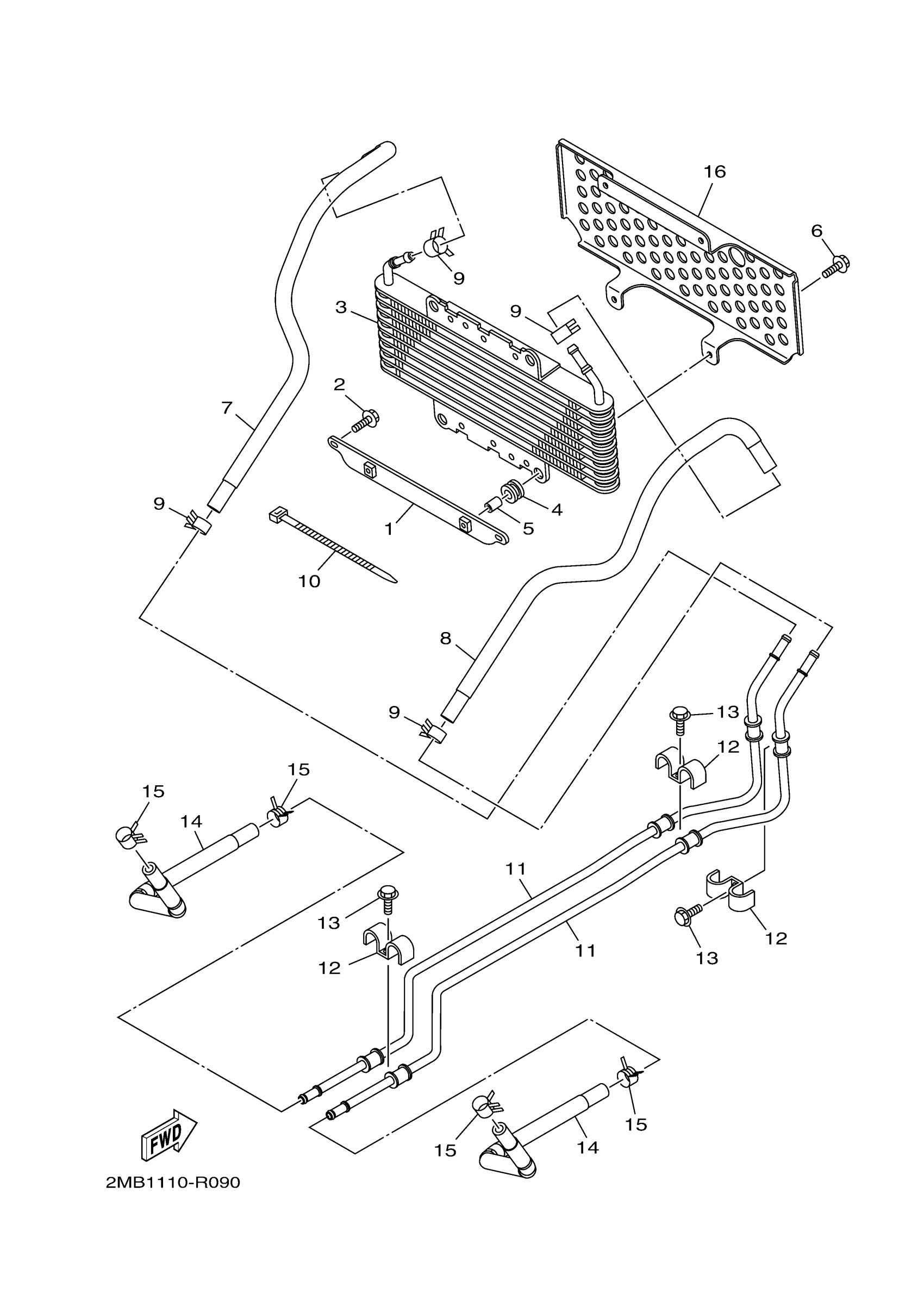

Find the part on the OIL Pipe diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) OIL Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, OIL COOLER

2MB-F1498-00-00

1
Out of stock

2

BOLT, SPECIAL 1

JW1-K6179-01-00

1

$1.23

In stock

3

ELEMENT, OIL COOLE

1NS-E3480-00-00

1

$344.03

In stock

4

GROMMET(2GH)

90480-12475-00

1

$6.68

In stock

5

COLLAR

90387-06113-00

1

$10.51

In stock

6

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

7

HOSE 1

2MB-E243A-01-00

1

$21.77

In stock

8

HOSE 2

2MB-E2577-01-00

1

$21.00

In stock

9

CLIP

90467-150A0-00

1

$3.55

In stock

10

CLAMP

90464-48800-00

—

$3.54

In stock

11

OIL PIPE COMP. 1

2MB-E3405-01-00

1

$28.65

In stock

12

CLAMP

90462-15800-00

1
Out of stock

13

1

$1.00

In stock

14

HOSE 7

2MB-E2551-01-00

1
Out of stock

15

CLIP

90467-150A0-00

1

$3.55

In stock

16

BRACKET, AIR COOLER

2MB-E3691-00-00

1
Out of stock
