2018 Yamaha Wolverine (YXE70WDBJD) OIL Pump Diagram

← All diagrams

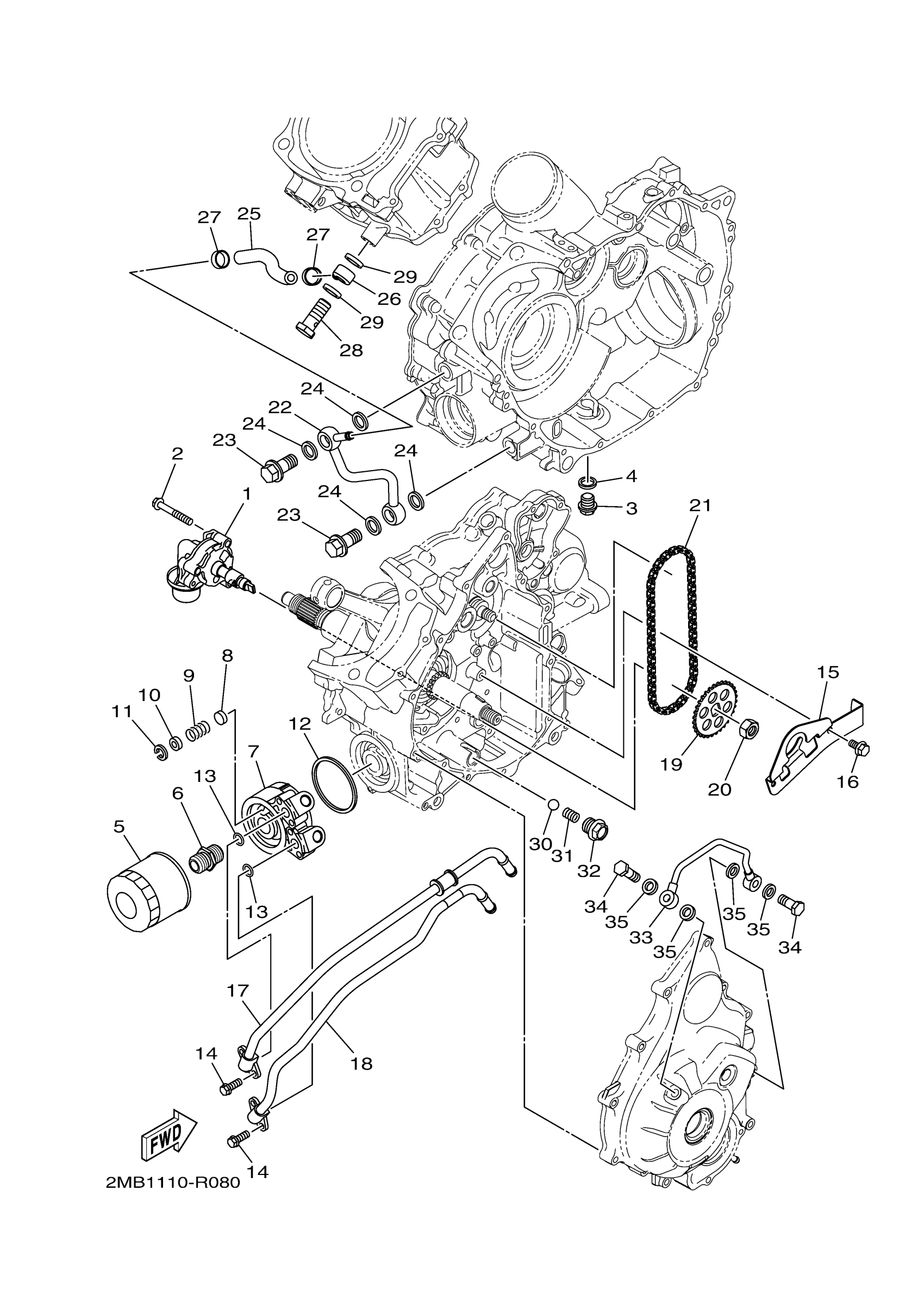

Find the part on the OIL Pump diagram for your 2018 Yamaha Wolverine (YXE70WDBJD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Wolverine (YXE70WDBJD) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

2MB-E3300-00-00

—

$244.78

In stock

2

BOLT 1

2MB-E5481-30-00

1

$1.62

In stock

3

PLUG, BLIND

2MB-E8149-00-00

1

$2.40

In stock

4

GASKET

2MB-E1198-00-00

1

$2.43

In stock

5

ELEMENT ASSY, OIL

5GH-13440-90-00

—

$9.69

In stock

6

BOLT 1

2MB-E3573-00-00

1

$56.65

In stock

7

PLATE, ADAPTOR

5UG-13461-00-00

1

$119.92

In stock

8

PLUG

1YW-13497-00-00

1
Out of stock

9

SPRING, COMPRESSION(1YW)

90501-082E3-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

CIRCLIP(1YW)

93420-13073-00

1
Out of stock

12

O-RING

2MB-E3016-00-00

—

$7.95

In stock

13

O-RING

2MB-E319C-00-00

1

$2.03

In stock

14

BOLT 1

2MB-E5481-E0-00

1

$1.51

In stock

15

GUIDE, STOPPER 3

2MB-E2221-00-00

1

$89.66

In stock

16

BOLT 1

2MB-E5481-40-00

—

$1.25

In stock

17

PIPE, OIL 1

2MB-E3416-00-00

—

$121.00

In stock

18

PIPE, OIL 2

2MB-E3418-00-00

—

$124.51

In stock

19

SPROCKET, DRIVEN

2MB-E3355-00-00

—

$19.89

In stock

20

NUT, SPECIAL

2MB-E1459-00-00

—

$1.43

In stock

21

CHAIN, PRIMARY

2MB-E1456-00-00

—

$22.69

In stock

22

PIPE, DELIVERY 2

2MB-E3171-00-00

—

$90.91

In stock

23

BOLT, BANJO

2MB-E3165-00-00

—

$10.62

In stock

24

GASKET

2MB-E8363-00-00

—

$2.62

In stock

25

HOSE, OIL 1

2MB-E316F-00-00

—

$31.66

In stock

26

PIPE, DELIVERY 3

2MB-E3181-00-00

—

$40.77

In stock

27

CLAMP

2MB-E5485-00-00

—

$34.22

In stock

28

BOLT, BANJO

2MB-E3166-00-00

—

$10.54

In stock

29

GASKET

2MB-E1195-00-00

—

$2.23

In stock

30

BALL

2MB-E8218-00-00

—

$1.23

In stock

31

SPRING

2MB-E3469-00-00

1
Out of stock

32

PLUG

2MB-E3455-00-00

—

$6.43

In stock

33

PIPE, DELIVERY 1

2MB-E3161-00-00

—

$48.66

In stock

34

BOLT, UNION

2MB-E2858-00-00

—

$10.15

In stock

35

GASKET

2MB-E3476-00-00

—

$2.78

In stock
