1986 Yamaha YTZ250S Rear Shocks Diagram

← All diagrams

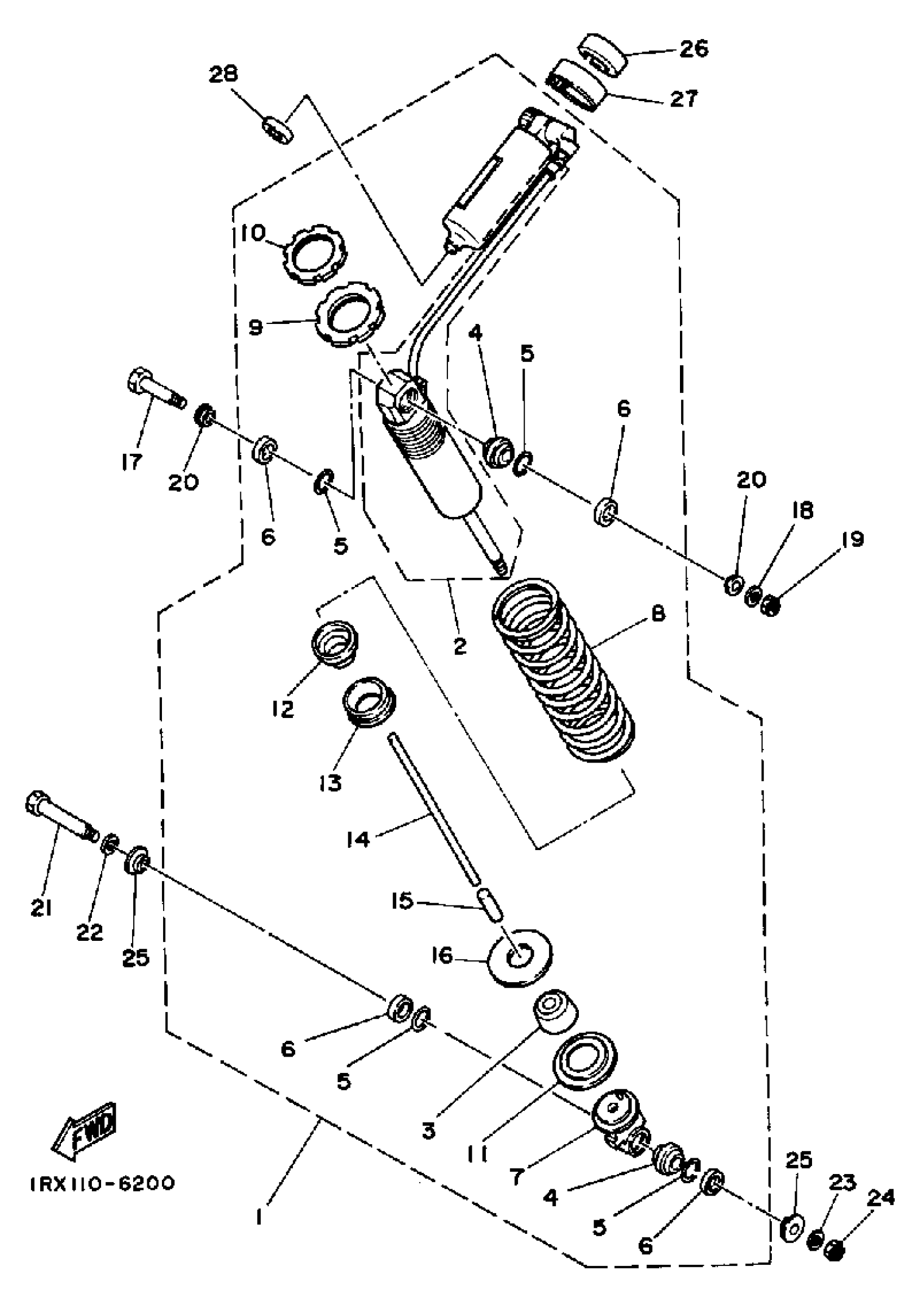

Find the part on the Rear Shocks diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTZ250S Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY REARASSEMBLY, REAR

1RX-22210-00-6W

1
Out of stock

2

. DAMPER SUB ASSEMBLY

1RX-22401-00-00

1
Out of stock

3

. BUMP, STOP

50T-22493-00-00

1
Out of stock

4

BEARING(4GG)

93399-999T3-00

1
Out of stock

5

CIRCLIP (23X)

93440-30113-00

1
Out of stock

6

OIL SEAL (23X)

93104-18077-00

1
Out of stock

7

. BRACKET, UPPER ASSEMBLY

38W-22209-09-00

1
Out of stock

8

SPRING, SHOCK STD

(1RX-22212-00-6W)

1
Out of stock

8

SPRING, SHOCK SOFT

(1RX-22212-10-6W)

1
Out of stock

8

. SPRING, SHOCK HARD

1RX-22212-20-6W

1
Out of stock

9

SEAT, SPRING LOWER

38W-22223-00-00

1
Out of stock

10

RING, COVER

1RK-22215-00-00

1
Out of stock

11

GUIDE, SPRING 1

3P6-22214-10-00

1
Out of stock

12

SEAL,DUST

23X-22475-01-00

1
Out of stock

13

. CAP, CASE

38W-22472-01-00

1
Out of stock

14

. ROD, PUSH

38W-22489-00-00

1
Out of stock

15

. PIN, DOWEL

93605-20204-00

1
Out of stock

16

. SEAT 1

38W-22424-00-00

1
Out of stock

17

BOLT

90109-10704-00

1
Out of stock

18

WASHER (7A9)

90201-100F7-00

—

$6.38

In stock

19

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

20

COLLAR (23X)

90387-127G8-00

—

$9.89

In stock

21

BOLT(38W)

90109-102A6-00

—
Out of stock

22

WASHER, PLATE

90201-12027-00

—

$6.23

In stock

23

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

24

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

25

COLLAR (23X)

90387-126H8-00

—
Out of stock

26

DAMPER, SUB TANK

24X-22261-00-00

—

$7.97

In stock

27

HOLDER, SUB TANK

24X-22262-00-00

1
Out of stock

28

GROMMET

90480-25381-00

1
Out of stock
