1986 Yamaha YTZ250S Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

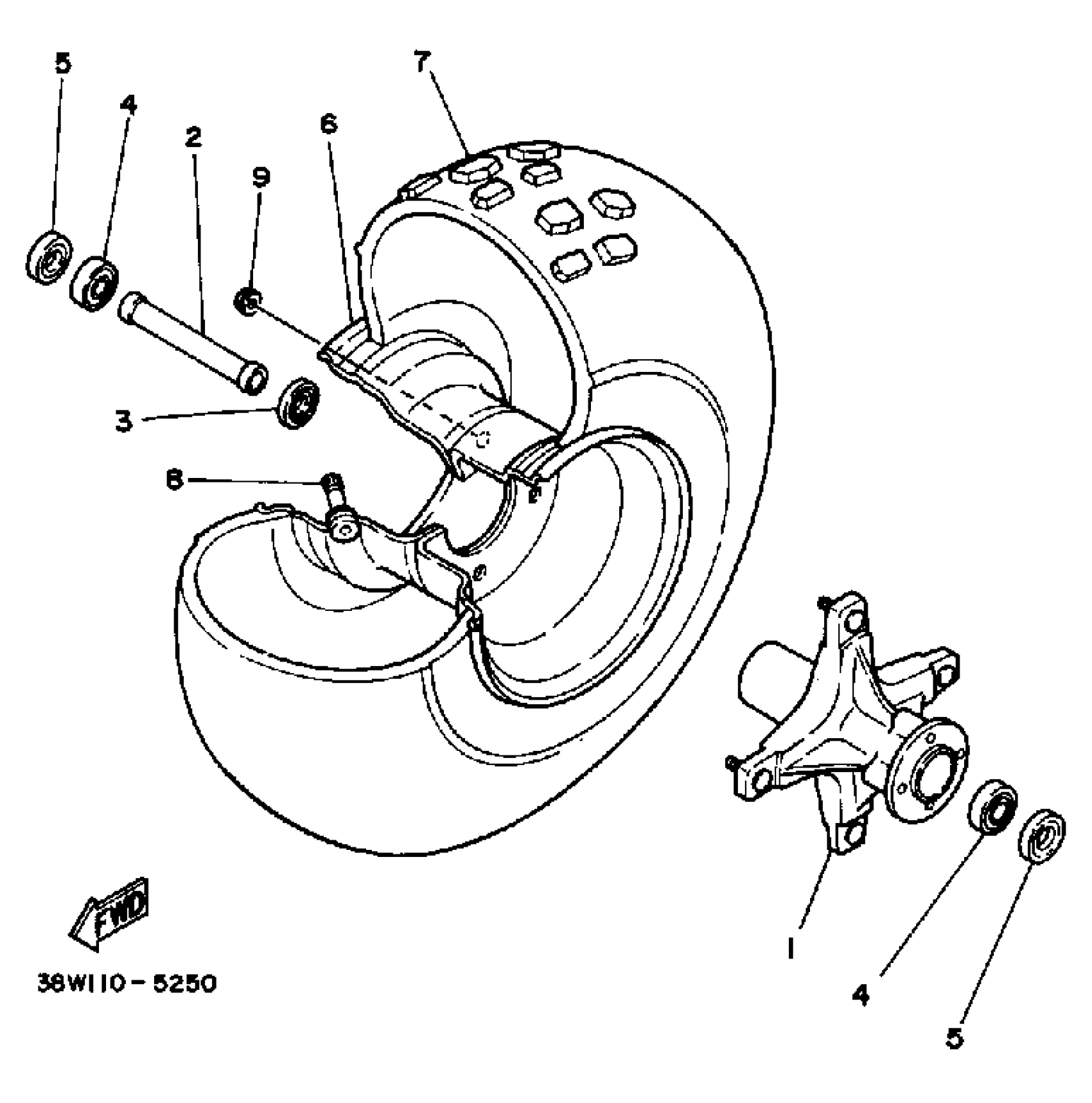

1986 Yamaha YTZ250S Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(38W-25111-00-8L)

1
Out of stock

2

SPACER

90560-15262-00

1
Out of stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

6

FRONT WHEEL COMP

38W-25180-10-7H

1
Out of stock

7

23X8-12 KT732 DUN

94108-127H2-00

1
Out of stock

8

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

9

NUT, FLANGE

95704-08500-00

1
Out of stock
